Object Grid
A new tab was added to the SCT. The Object Grid Tab presents a user-configured grid of simulation objects. Each Cell represents one object. Scalar slots and single-cell table slots are displayed (and are directly editable) as a list of slots within the cell. For more information, see Scalar Data on the Object Grid in System Control Table (SCT).

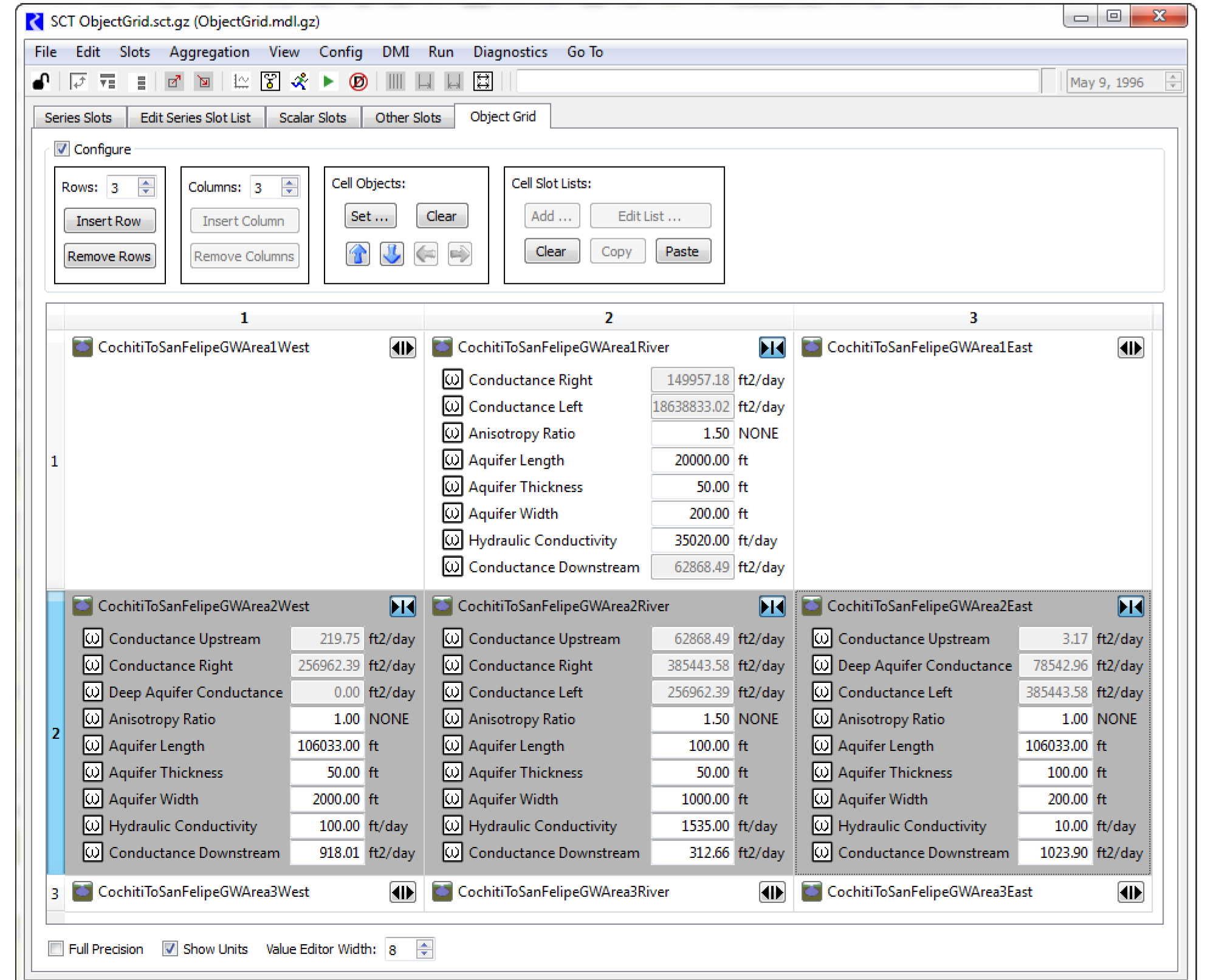

This setup allows you to spatially arrange your objects and then edit the slot data based on that spatial arrangement. An initial use of this tool was for groundwater objects that interact with each other. The network of object was created in the Object Grid and then was used to configure each object’s data as necessary. The following screenshot shows the SCT Object Grid for several groundwater objects:
