Create a new SCT from the Slot Viewer
Use this procedure to add one or more series slots from the Slot Viewer to a new SCT.
1. Open one or more series slots in the Slot Viewer; see Opening a Slot in User Interface for details.
2. Optionally, select the slots you want to include in the SCT. In the next step, you can choose whether to include all slots or only selected slots in the new SCT.

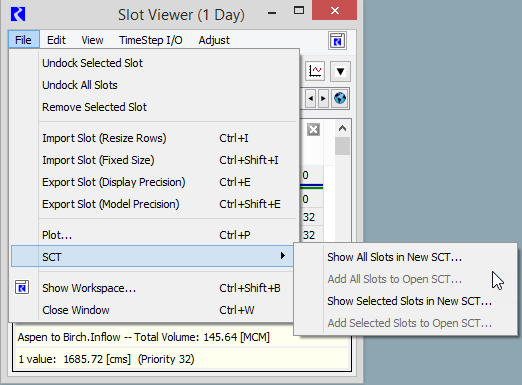

3. In the Slot Viewer menu, select File, then SCT, then select one of the following options:
– Show All Slots in New SCT—adds all slots displayed in the Slot Viewer to a new SCT.
– Show Selected Slots in New SCT—adds just the selected slots to a new SCT.

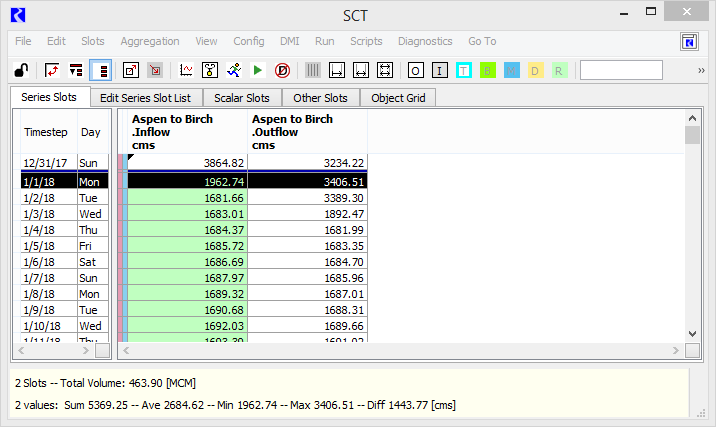

The new SCT opens, and the slots are located on the Series Slots tab.
4. To add additional slots to this SCT, see Add series slots to an SCT and Add series slots from the Slot Viewer.
5. To save the SCT, see Save an SCT.
