Create a new SCT

Use this procedure to create a new SCT. After performing this procedure, you can configure the SCT to view and edit any slot values in the model, group them, and arrange them in any order. You can also customize the appearance of the SCT.

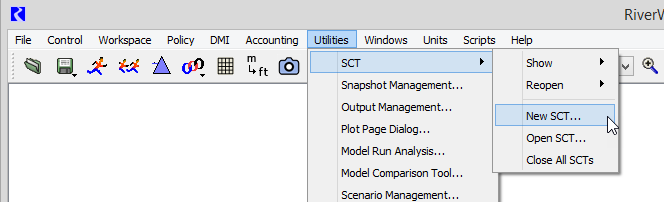

1. From the workspace menu, select Utilities, then SCT, then New SCT.

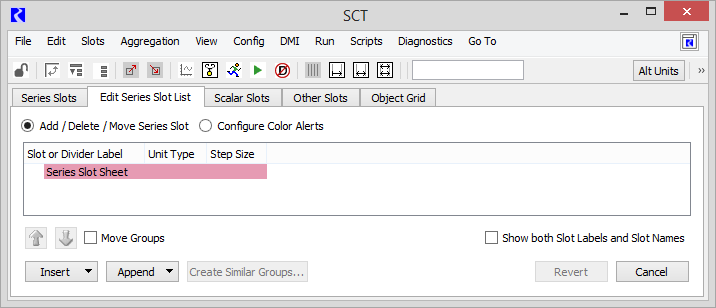

A new SCT opens at the Edit Series Slot List tab.

2. Add slots and dividers, and configure the SCT to your needs. See the following sections for details:

– Add series slots to an SCT

– Add slot dividers

– Add sheet dividers

– Rearrange items on the Series Slots tab

– Save an SCT
