Data Management Interface (DMI)
The following changes have been made to RiverWare DMI functionality.
Database DMIs
The following changes have been made to Database DMIs.
HDB Web Service DMI
HDB Web Service DMI Datasets now interpret all timestep references in the web service to be beginning-of-period times. See the important note
HDB Web Service DMI Timesteps.
New DIT Database DMI
The Demand Input Tool (DIT) is used by some U.S. Bureau of Reclamation basins to compute diversion and depletion demands. A new RiverWare DMI “DIT Dataset” was developed to import data directly from the DIT’s SQLite file. Previously, the data from the DIT had to be first exported to an Excel workbook from the DIT, then a RiverWare Excel DMI imported the data. Now the data can go directly from the DIT to RiverWare.
In the DIT Dataset, specify the DIT file path and scenario to use as shown below.

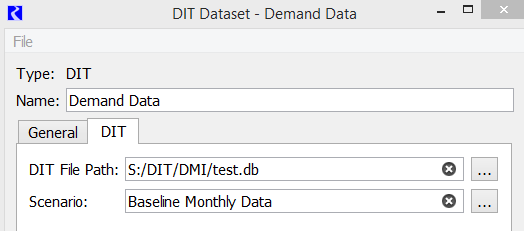

Figure 2.2 Screenshot of the new DIT Dataset dialog
OpenSSL for Web Service DMIs
See the important note on the installation of OpenSSL for Web Service DMIs in
OpenSSL Installation for Web Service DMIs.
