SCT Toolbar

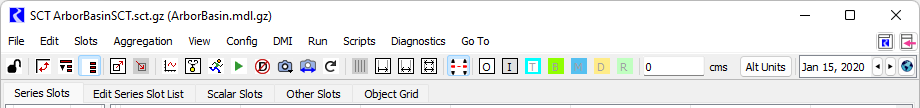

Following is a list of all possible items on the SCT toolbar. The toolbar is customizable; therefore, some items may not be included on a given SCT.
 Lock/Unlock
Always appears.
 Swap Axis
Can be hidden.
User Controlled Details
Can be hidden. Allows you to switch between detail and summary views.
 Summaries Only
Can be hidden. Allows you to display summary info only on the entire tab.
 All Details Open
Can be hidden. Allows you to display all details on the entire tab.
 Details Only
Can be hidden. Disables time aggregation.
 Copy Data
Always appears.
 Paste Data
Always appears. This pastes copied values with the Input (I) flag only, the equivalent of the Paste cells operation from the Edit menu.
 Plot Slots
Can be hidden.
 Open Slots
Can be hidden.
 Show/Hide Diagnostics
Always appears.
 Run Control
Can be hidden.
 Start Run
Can be hidden.
 Model Run Analysis
Can be hidden.
Snapshot
Always appears. Selecting this button presents a menu with options for creating and viewing snapshots. (See Snapshots in Output Utilities and Data Visualization for more information on snapshots.)
– Snapshot Manager—opens the Snapshot Manager (see Snapshot Manager in Output Utilities and Data Visualization).
– Create Snapshot—creates a new snapshot object using the Snapshot Template (slot selection and name) currently configured in the Snapshot Manager.
– Apply Snapshot—presents a list of all snapshot objects in the model. Selecting a snapshot to apply copies all data, flags, and series slot notes from all slots on the snapshot and pastes them into the corresponding source slots.
– Show No Snapshots—this is the default selection. When selected, snapshot slots are not shown in the SCT (unless they have been added manually by using Insert Slots or Append Slots).
– Show Selected Snapshots—this selection opens the Select Snapshots dialog, where you can select which snapshots in the model should have their slots displayed in the SCT together with the source slots. (See Displaying Snapshot Slots.)
– Show N Most Recent Snapshots—shows slots from the most recent snapshots in the SCT together with the source slots. (See Displaying Snapshot Slots.)
Show All Snapshots
Always appears. This operation overrides the per slot setting for whether a source slot should have its corresponding snapshot slots displayed when one of the Show Recent Snapshot options is selected. Selecting this button shows snapshot slots for all source slots in the SCT that have slots in the selected snapshots. Selecting the button again returns to using the per slot settings to determine which snapshot slots to show. (See Configure which snapshot slots to show.)
Refresh
Always appears. This operation updates the data displayed in the SCT, and it updates the evaluation of condition functions for color alerts (see Configuring Color Alerts for more information).
 Resize Columns: Set All to Selected Column Width
Can be hidden. Sets all columns to the same width as the selected column.
 Grow Columns: Fit Data
Can be hidden. Increases the width of any columns that are too narrow; does not modify columns that are too wide
 Resize Columns: Fit Data
Can be hidden. Decreases the width of any columns that are too wide; does not modify columns that are not wide enough
 Resize Columns: Fit All
Can be hidden. Does both; fits text by increasing and decreasing widths, as required
 Synchronize Series Slot Scrolling
Can be hidden. Turn on or off synchronized series slot scrolling. See Synchronized Scrolling for more information.
User-configurable flags area
Appears on the Series Slots tab only. Select a button to assign the flag to the selected cells. Depending on how the SCT is configured, any or all of the following flags may be available:
 Output (O)
 Input (I)
 DMI Input (Z)—display only
 Target Operation (T)
 Best Efficiency (B)
 Max Capacity (M)
 Drift (D)
 Set by Rules (R)
 Surcharge Release (S)
 Regulated discharge (G)
 Unit Values (U)
 Value
Appears on all tabs.
Displays the value of the selected cell. If multiple cells are selected, displays the value of the last selected cell. The value is displayed to full precision from the model.
You can enter a value to assign to all selected data cells.
 Flow/Volume Display Mode
Appears on all tabs.
Menu allows you to select the display mode.
• Standard - Display flows and volumes without conversion
• Flow - Display volumes as flows (as appropriate)
• Volume - Display Flows as Volumes
 Timestep Navigator
Appears on all tabs. Displays the current timestep and provides a variety of navigation options:
• Enter a date in the text field to go to the specified timestep.
• Select the Previous and Next arrows to move one timestep at a time.
 Global Time Scroll
Appears on all tabs.
Menu provides options to go directly to the first or last timestep in the model.
• Run Start
• Run Finish
 Show Workspace
Select to bring the RiverWare workspace window to the front.
