Create a new SCT from a series slot sheet
Use this procedure to copy a series slot sheet to a new SCT. You can perform this procedure to create SCTs from any number of sheets. This is useful for the following purposes:
• You can quickly build a new SCT using the selected sheet and its SCT configuration settings as a starting point. You can make changes to the copy and then save it as a new SCT file.
• You can easily view multiple sheets of an SCT side-by-side. When you are done viewing, you can close the copies without saving them.
1. Go to the Series Slot tab.

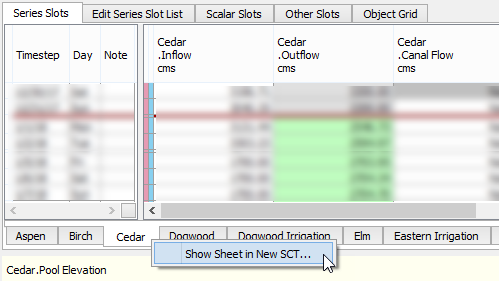

2. In the bottom of the display, right-click the sheet tab you want to display in a separate SCT.
3. In the context menu, select Show Sheet in New SCT.
The sheet is displayed in a new SCT window.
Note: The sheet is not removed from the original SCT; it is copied to a new SCT window, and the original sheet remains unchanged in the original SCT.
