Managing MRM Configurations
This section describes how to manage MRM configurations using the Multiple Run Control dialog. The basics of creating, deleting, and opening a configuration for editing are described here.
• Open the MRM Dialog by selecting
Control, then
MRM Control Panel from the main RiverWare menu bar or select the
MRM button on the toolbar.
Creating a New Configuration

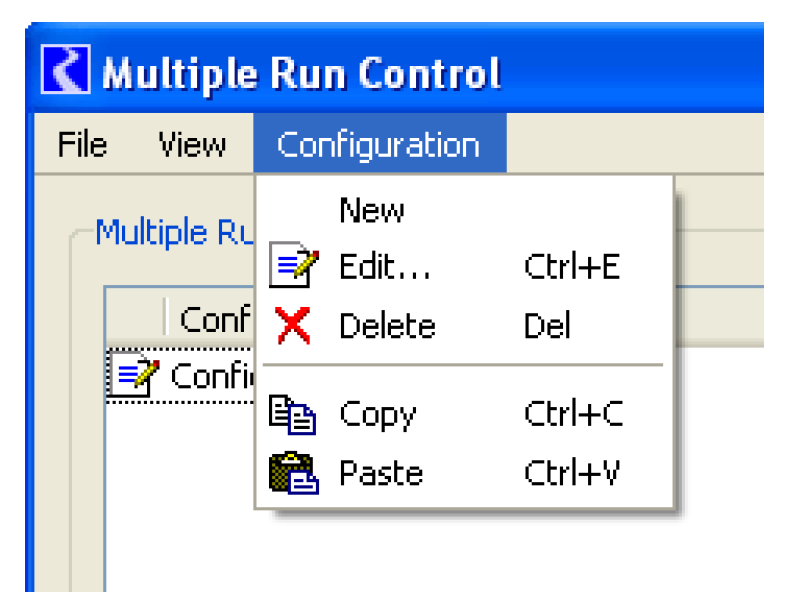

• Select Configuration, then New from the Multiple Run Control Dialog.
• Double-click the newly created configuration (or highlight it and select Configuration, then Edit or right-click the highlighted configuration to bring up a context menu and select Edit).
Editing an Existing Configuration
• Highlight the desired configuration in the Multiple Run Control dialog and select Configuration, then Edit or right-click the highlighted configuration to bring up a context menu and select Edit.
• Apply desired edits in the MRM Configuration dialog and select OK.
Deleting an Existing Configuration
• Highlight the configuration to be deleted and select Configuration, then Delete or right-click the highlighted configuration to bring up a context menu and select Delete.
• Apply the deletion by confirming the dialog
Copying an Existing Configuration
An easy way to create a new configuration similar to an existing one is by copying the existing configuration and making changes. Configurations can only be copy and pasted within one model (i.e., within one open session of RiverWare).
• Highlight the configuration to be copied and select Configuration, then Copy or right-click the highlighted configuration to bring up a context menu and select Copy.
• Select Configuration, then Paste to paste the copied configuration into the open Multiple Run Control dialog or right-mouse select the highlighted configuration to bring up a context menu and select Paste.
• Highlight the “Copy of” configuration and select Configuration, then Edit (or right-click the highlighted configuration to bring up a context menu and select Edit).
• Change the name, if desired, and make any other edits. Select OK in the Multiple Run Editor.
• Edit notations. Whenever a configuration is edited, the change is noted with an icon in the Multiple Run Control dialog until those changes have been either accepted or canceled.
