Output Utilities and Data Visualization : Tabular Series Slot Report : Generating Tabular Series Slot Reports
Generating Tabular Series Slot Reports
Once configured, a Tabular Series Slot Report can be generated in several ways, resulting in the creation of either a plain text file or an HTML file.
From the Output Configuration manager, a Tabular Series Slot Report can be generated in three ways. After selecting the desired report list item, do one of the following:
• Select Generate, or
• Select the Generate, then Generate Selected Objects menu item, or
• Select the Generate Selected Outputs context (right-click) menu item.

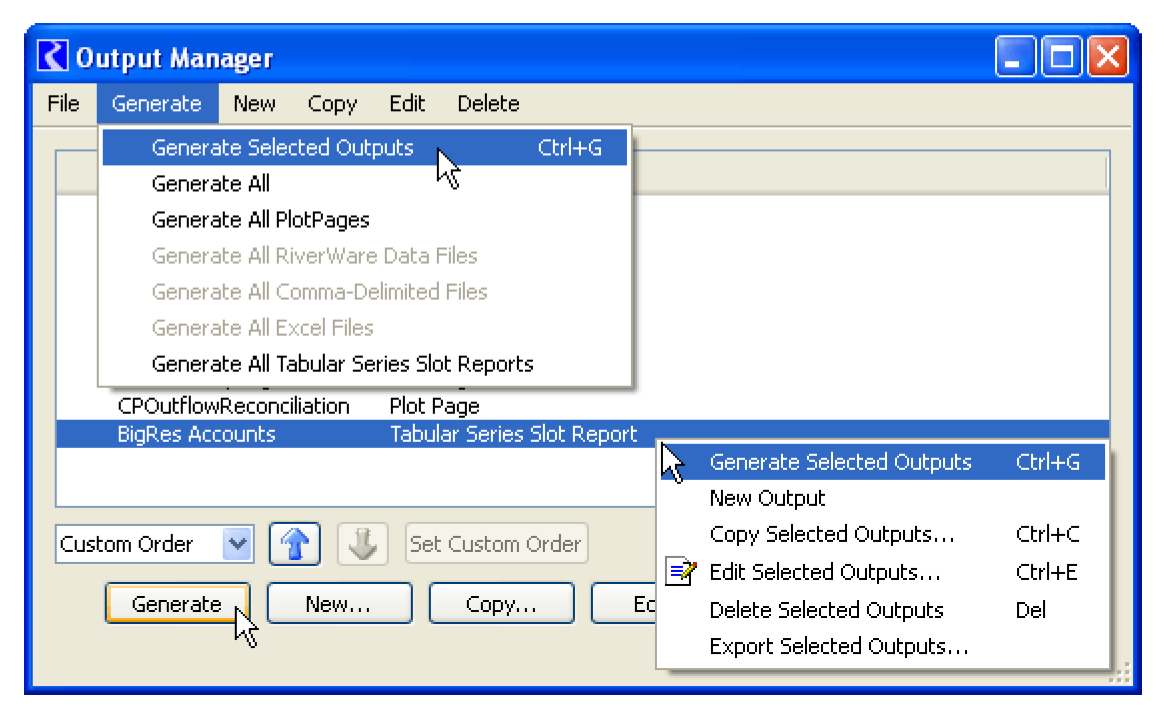

Figure 3.15
Or, from the Output Configuration dialog for a particular Tabular Series Slot Report, the report can be generated in either of the following ways:
• Select Generate, or
• Select the Output, then Generate/Refresh menu item.
An error dialog will be shown in these two circumstances:
• The configured file path for the selected output type (plain text or HTML) is invalid, or is not writable.
• The slot list is empty.
After the report file is generated, the following actions occur:
• The file path of the generated file is copied to the system clipboard.
• This dialog box is shown to report that path, and to give the option of viewing the report file in the default application. In the case of a plain text report file, it will open in your text editor. For HTML, a browser will open.
Revised: 12/06/2024
