SCT
Diagnostic Output
The diagnostic output window was modified so that when docked in an SCT it does not take up excessive space as follows:
• Removed the title bar
• Added ability to hide the column headers (Settings Show/Hide Column Headers)
• Added ability to hide the diagnostic menu toolbar (From the SCT: Diagnostics Show/Hide Integrated Toolbar)
SCT Run Status Panel

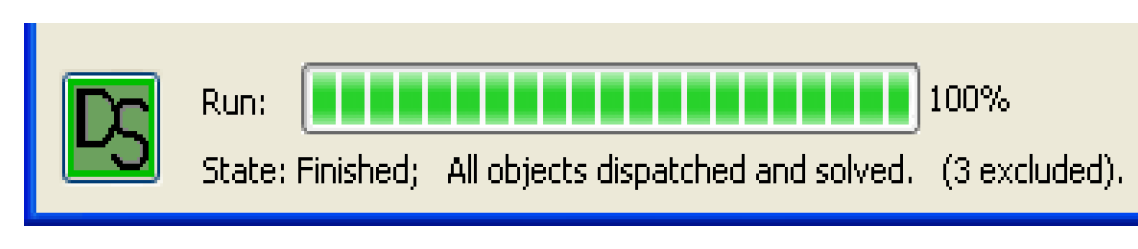

In the Run Status area of the SCT, information on the dispatching of objects within the run was added. An icon is shown that displays the most limiting dispatching of objects within the run. Also displayed are the number of objects that meet the most limiting condition.

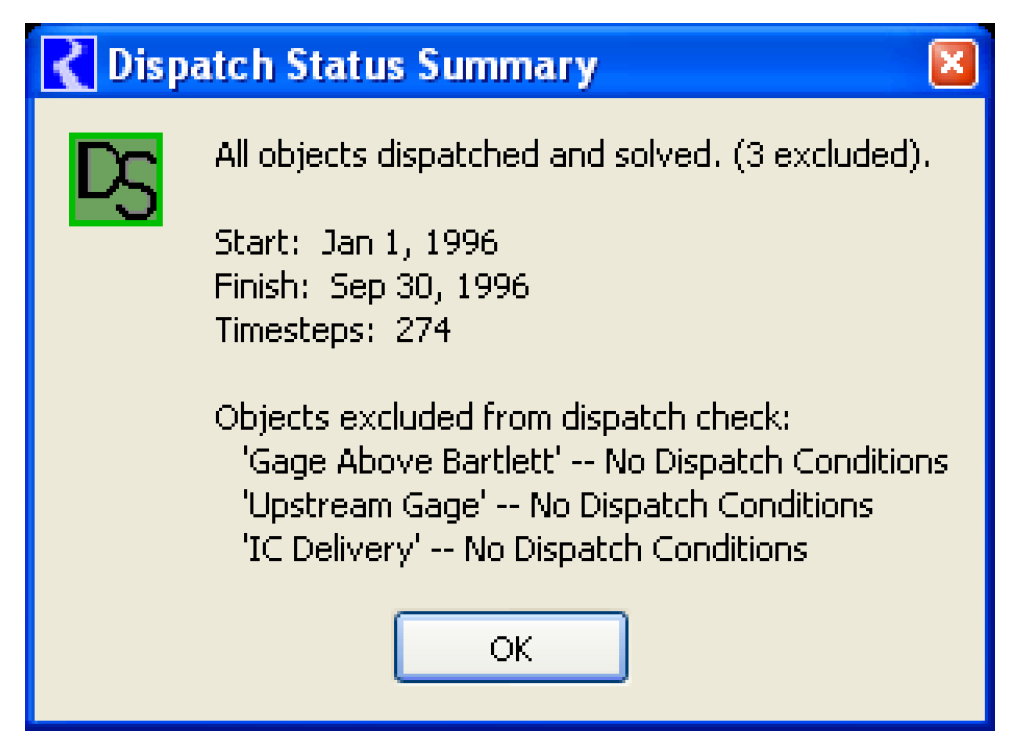

Selecting the icon takes you to the Model Run Analysis tool with the first relevant object at the earliest timestep highlighted. When you shift-click on the icon, a dialog is shown with a summary of the run analysis.
