Model and RPL Set Comparison Tools
The following changes have been made to the RiverWare Model Comparison Tool (MCT) and RPL Set Comparison Tools (RCT). For information on this tool, see Model Comparison Tool in User Interface.
New Properties for Slot Comparisons
Two new properties have been added for slot comparisons: Unit Type and Is In Use.

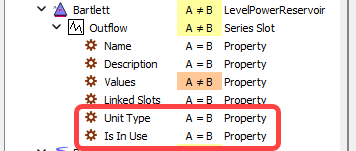

Figure 4.3 Screenshot of new MCT comparison properties
A slot is “in use” when it is shown on the Slots tab of the object. A slot is considered to be not “in use” if it is dependent on a method or controller that is not currently selected. See Reference on the Entities and Properties Compared in User Interface for more information.
Revised: 12/06/2024
