Evaporation and Precipitation

The Evaporation and Precipitation category methods are used to calculate the volume of Evaporation from and Precipitation to the surface of a reservoir over the timestep. Precipitation and Evaporation are used in the mass balance equations which are solved in the dispatch methods.

Some of the methods in this category only calculate evaporation.

None

The None method is the default method for the Evaporation and Precipitation category. It should be chosen if the user does not want to include Evaporation in the mass balance equation of the Reservoir. No calculations are performed by this method.

There are no slots specific to this method.

Daily Evaporation

The Daily Evaporation method is used to calculate the daily evaporation volume and the flow rate of the precipitation. The daily evaporation volume is a function of the Evaporation Rate, average Surface Area, and Pan Coefficient.

Slots Specific to This Method

Elevation Area Table

Type: Table Slot

Units: LENGTH vs AREA

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

Evaporation

Type: SeriesSlot

Units: VOLUME

Description: Volume of water lost to evaporation during one timestep

Information:

I/O: Output only

Links: Not linkable

Evaporation Table

Type: Table Slot

Units: NOUNITS vs LENGTH (per day)

Description: Day of the year vs Evaporation Rate

Information: The first of January is 0. The unit type of second column is Length, but this actually implies a rate (length/time) where the time component is the run timestep.

I/O: Required input

Links: Not linkable

Pan Evaporation Coefficient

Type: Table Slot

Units: NO UNITS

Description: Fractional value between 0 and 1 that represents the portion of potential evaporation which actually occurs

Information:

I/O: Required input

Links: Not linkable

Precipitation Rate

Type: SeriesSlot

Units: LENGTH vs TIME

Description: Precipitation intensity for the given timestep

Information:

I/O: Optional; defaults to 0.0 if not input.

Links: Not linkable

Precipitation Volume

Type: SeriesSlot

Units: VOLUME

Description: Precipitation flow rate multiplied by the length of the timestep

Information: Used in the mass balance to solve for storage

I/O: Output only

Links: Not linkable

Surface Area

Type: SeriesSlot

Units: AREA

Description: Reservoir Surface Area calculated from the Elevation Area Table

Information:

I/O: Output only

Links: Not linkable

Method Details

The Surface Area is determined using the Pool Elevation and the Elevation Area Table. The Evaporation Rate is looked up in the Evaporation Table according to the current day of the year. Evaporation is calculated using the following equation:

The volume of Precipitation that occurred over the timestep is then calculated with the following equation:

where:

– Evaporation Rate = the Evaporation Rate corresponding to the current day of the year

– Surface Area = the current Surface Area of the Reservoir

– Surface Area(-1) = the Surface Area of the Reservoir at the previous timestep

Input Evaporation

The Input Evaporation method should be used when the user wants to input the Evaporation Rate directly. This Evaporation Rate is used to compute the volume of water that evaporated over the timestep. Also, the user can input the evaporation volume directly on the Evaporation slot. In that case, the Evaporation Rate is not used to calculated Evaporation.

Slots Specific to This Method

Elevation Area Table

Type: Table Slot

Units: LENGTH vs AREA

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

Evaporation

Type: SeriesSlot

Units: VOLUME

Description: Volume of water lost due to evaporation during the timestep

Information:

I/O: Output; optional input overrides calculation

Links: Not linkable

Evaporation Rate

Type: SeriesSlot

Units: LENGTH per TIME

Description: Rate at which water evaporates from the surface

Information:

I/O: Optional input, disaggregated by method as described in the Evap and Precip Rate Specification category, or defaults to 0.0 if not specified by the user.

Links: Not linkable

Precipitation Rate

Type: SeriesSlot

Units: LENGTH per TIME

Description: Precipitation intensity for a given timestep

Information:

I/O: Optional input, disaggregated by method as described in the Evap and Precip Rate Specification category, or defaults to 0.0 if not specified by the user.

Links: Not linkable

Precipitation Volume

Type: SeriesSlot

Units: VOLUME

Description: Precipitation flow rate multiplied by the length of the timestep

Information: Used in the mass balance to solve for storage

I/O: Output only

Links: Not linkable

Surface Area

Type: SeriesSlot

Units: AREA

Description: Reservoir Surface Area from the Elevation Area Table

Information:

I/O: Output only

Links: Not linkable

Method Details

At the beginning of the run, the chosen method in the Evap and Precip Rate Specification category is executed. This category allows you to specify the rates as monthly or periodic slots.

If the user specifies Evaporation directly (via input or rules), the value will be used instead of calculating a value below.

If Evaporation is not specified, the following equation is used to compute the volume of water that evaporated from the Reservoir over the timestep:

The precipitation flow rate over the timestep is calculated as shown in the following equation:

where:

– Surface Area = the current Surface Area of the Reservoir

– Surface Area(-1) = the Surface Area of the Reservoir at the previous timestep

Monthly Evaporation

In the Monthly Evaporation method, evaporation is calculated linearly from the Evaporation Coefficients entered for each month. This method will not work with a timestep longer than 1 Month. The total evaporated volume is a function of the average Reservoir Surface Area over the timestep, the Evaporation Coefficient, and the length of the timestep. The following slots are specifically associated with this method.

Slots Specific to This Method

Elevation Area Table

Type: TableSlot

Units: LENGTH vs AREA

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

Evaporation

Type: SeriesSlot

Units: VOLUME

Description: Volume of water lost to evaporation during one timestep

Information:

I/O: Output only

Links: Not linkable

Evaporation Coefficients

Type: TableSlot

Units: LENGTH PER time

Description: Rate of evaporation for each month

Information: This slot contains one column of values. The Evaporation Coefficient for each month of the year must be input by the user beginning with the Evaporation Coefficient for January.

I/O: Required input

Links: Not linkable

Precipitation Rate

Type: SeriesSlot

Units: LENGTH per TIME

Description: Precipitation intensity for the given timestep

Information: Value must be input by the user for each timestep.

I/O: Optional; defaults to 0.0 if not input.

Links: Not linkable

Precipitation Volume

Type: SeriesSlot

Units: VOLUME

Description: Precipitation flow rate multiplied by the length of the timestep

Information: Used in the mass balance to solve for storage

I/O: Output only

Links: Not linkable

Surface Area

Type: SeriesSlot

Units: AREA

Description: Reservoir Surface Area calculated from the Elevation Area Table

Information:

I/O: Output only

Links: Not linkable

Method Details

The Surface Area of the Reservoir is calculated based on the Elevation Area Table. The Evaporation is then calculated using the following formula:

The volume of Precipitation that occurred over the timestep is then calculated using the following equation:

where:

– Evaporation Coefficient = the Evaporation Coefficient for the current month

– Surface Area = the current Surface Area of the Reservoir

– Surface Area(-1) = the Surface Area of the Reservoir at the previous timestep

Pan and Ice Evaporation

The Pan and Ice Evaporation method is used to calculate the volume of evaporation with one of two methods based on the value of the Pan Ice Switch slot for each timestep. The Pan Ice Switch slot is used as an indicator of whether ice is present on the surface of the reservoir. A value of 1.0 in the Pan Ice Switch slot indicates that there is ice cover on the Reservoir that must be taken into account when Evaporation is calculated. A value of 0.0 or any number other than 1.0 in the Pan Ice Switch slot indicates that there is no ice on the surface of Reservoir. The following slots are those specifically associated with this method.

Slots Specific to This Method

Evaporation

Type: Series

Units: VOLUME

Description: Volume of water lost to evaporation during the current timestep

Information:

I/O: Output only

Links: Not linkable

Elevation Area Table

Type: Table

Units: LENGTH vs AREA

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

K Factor

Type: Series Slot with Periodic Input

Units: VELOCITY per TEMPERATURE_F

Description: Factor relating average temperature, in degrees Fahrenheit, to evaporation rate

Information: This slot is a series slot, but the data can be input as a periodic relationship.

I/O: Optional but is required Input if the Pan Ice Switch slot is 1.0

Links: Not linkable

Max Air Temperature

Type: Series

Units: TEMPERATURE in FARENHEIT

Description: Maximum air temperature during the timestep

Information:

I/O: Optional; required only if the Pan Ice Switch slot is 1.0

Links: Not linkable

Min Air Temperature

Type: Series

Units: TEMPERATURE in FARENHEIT

Description: Minimum air temperature during the timestep

Information:

I/O: Optional; required if the Pan Ice Switch slot is 1.0

Links: Not linkable

Pan Evaporation

Type: Series

Units: LENGTH per TIME

Description: Evaporation rate from the surface

Information:

I/O: Optional; only required if the Pan Ice Switch is 0.0

Links: Not linkable

Pan Evaporation Coefficient

Type: Table

Units: DECIMAL

Description: Weighing factor for pan evaporation rate

Information:

I/O: Optional; required if the Pan Ice Switch slot is 0.0

Links: Not linkable

Pan Ice Switch

Type: Series

Units: No Units

Description: Indicator of surface ice coverage for each timestep; 1.0 = ice; any other number or 0.0 = no ice.

Information: This slot is a series slot, but the data can be input as a periodic relationship.

I/O: Required input

Links: Not linkable

Precipitation Rate

Type: Series

Units: LENGTH per TIME

Description: Precipitation intensity for a given timestep

Information:

I/O: Optional; defaults to 0.0 if not specified by the user.

Links: Not linkable

Precipitation Volume

Type: Series

Units: VOLUME

Description: Precipitation flow rate multiplied by the length of the timestep

Information: Used in the mass balance to solve for storage

I/O: Output only

Links: Not linkable

Surface Area

Type: SeriesSlot

Units: AREA

Description: Reservoir Surface Area from the Elevation Area Table

Information:

I/O: Output only

Links: Not linkable

Surface Ice Coverage

Type: SeriesSlot

Units: DECIMAL

Description: Fraction of the Surface Area which is covered by ice

Information:

I/O: Optional; only used if the Pan Ice Switch slot is 1.0. Defaults to 0.0 for any timestep not specified by the user.

Links: Not linkable

Method Details

If the Pan Ice Switch slot is equal to 1.0, ice is present and the following calculation is performed to compute evaporation:

If the calculated Evaporation is less than zero, the Evaporation is set equal to zero.

The Precipitation is calculated with the following equation if the Pan Ice Switch slot is equal to 1.0:

The volume of precipitation that accumulated over the timestep at the Reservoir (Precipitation Volume) is the product of the precipitation flow rate and the timestep.

If the Pan Ice Switch slot is 0.0 or any number other than 1.0, there is no ice and the following calculation is performed to compute Evaporation:

The volume of precipitation that accumulated over the timestep at the Reservoir (Precipitation Volume) is the product of the precipitation flow rate and the timestep.

Pan and Ice Evaporation, Current Surface Area

This method is exactly the same as the Pan and Ice Evaporation method. It uses the same slots, has the same required inputs and performs the same calculations. The only difference is that this method uses the instantaneous, end of timestep surface area instead of the average surface area over the timestep.

Periodic Net Evaporation

Periodic Net Evaporation computes the gross evaporation from the reservoir and then subtracts out components of evaporation that would have occurred if the reservoir had not been built. This is the net evaporation and is set in the Evaporation slot. Each area of the submerged reservoir is separate including:

• River

• Streamside

• Terrace, and any

• Remaining areas

Each can have a separate evaporation coefficient and possibly additional components in its computation like temperature. The area of each region is specified in a separate table relating reservoir pool elevation to each region’s area. It is assumed that any precipitation that falls on the Remaining Area would have completely evaporated. The figure shows a sample of the different reservoir areas used in this method.

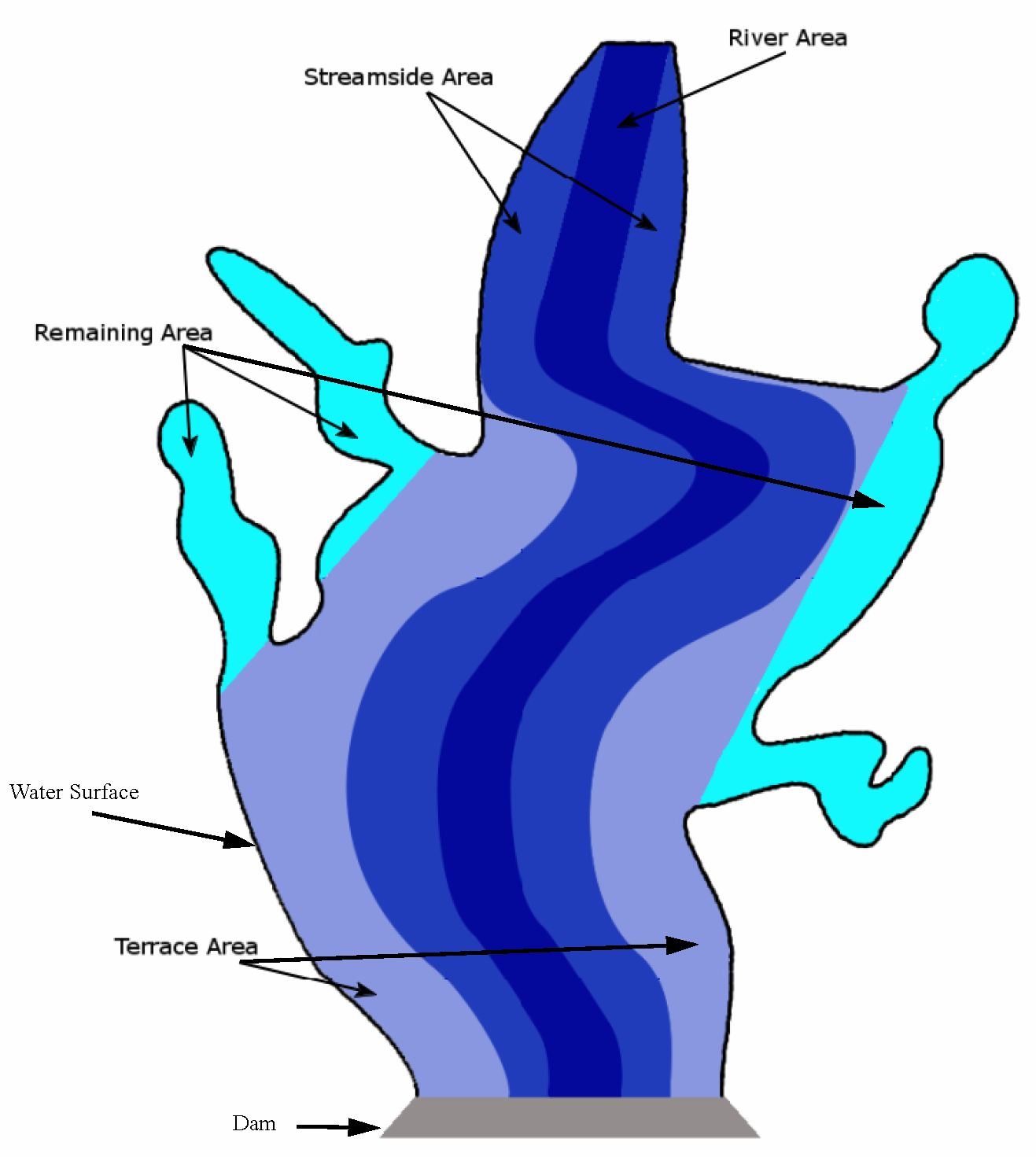

Figure 29.1

Slots Specific to This Method

Average Precipitation

Type: Periodic

Units: Velocity (Length per Time)

Description: Slot describing the average precipitation

Information: Typically this would have a yearly period and monthly precipitation values. It is used in the computation of Remaining Evaporation.

I/O: Required input

Links: Not linkable

Average Air Temperature

Type: Periodic

Units: TemperatureInFahren

Description: Slot describing the average air temperature

Information: Typically this would have a yearly period and monthly temperature values. It is used in computation of Streamside Evaporation and Terrace Evaporation.

I/O: Required input

Links: Not linkable

Elevation Area Table

Type: Table

Units: Length vs Area

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

Elevation River Area

Type: Table

Units: Length vs Area

Description: Table relating reservoir Pool Elevation to submerged river area.

Information:

I/O: Required input

Links: Not linkable

Elevation Streamside Area

Type: Table

Units: Length vs Area

Description: Table relating reservoir Pool Elevation to submerged streamside area.

Information:

I/O: Required input

Links: Not linkable

Elevation Terrace Area

Type: Table

Units: Length vs Area

Description: Table relating Pool Elevation to submerged terrace area

Information:

I/O: Required input

Links: Not linkable

Evaporation

Type: Series

Units: Volume

Description: Water lost from the reservoir to evaporation. This is the net evaporation and is the value that is included in the reservoir mass balance.

Information: This is the calculated as Gross Evaporation minus Salvage Evaporation

I/O: Output only

Links: Not linkable

Gross Evaporation

Type: Series

Units: Volume

Description: The total evaporation off the reservoir surface. This is the evaporation that is actually occurring from the reservoir.

Information: This is calculated as GrossEvaporationCoeff times SurfaceAreaAvg converted from a flow to volume.

I/O: Output only

Links: Not linkable

Gross Evaporation Coefficient

Type: Periodic

Units: Velocity (Length per Time)

Description: A table that describes the gross evaporation coefficient as it varies periodically. This is similar to a pan evaporation coefficient.

Information:

I/O: Required input

Links: Not linkable

River Evaporation Coefficient

Type: Periodic

Units: Velocity (Length per Time)

Description: A table that describes the river evaporation coefficient as it varies periodically. This is similar to a pan evaporation coefficient.

Information:

I/O: Required input

Links: Not linkable

Salvage Evaporation

Type: Series

Units: Volume

Description: The evaporation that would have occurred if the reservoir were not in place.

Information:

I/O: Output only

Links: Not linkable

Streamside Coefficient

Type: Periodic

Units: VelocityPerTemperature_F (that is, Length per Time per Temperature_F)

Description: Periodic table of coefficients

Information: Typically this represents a unit depth per month per degree Fahrenheit (for example, inches per month per degree Fahrenheit)

I/O: Required input

Links: Not linkable

Surface Area

Type: Series

Units: Area

Description: Reservoir surface area computed from a lookup on the Elevation Area table

Information:

I/O: Output only

Links: Not linkable

Terrace Coefficient

Type: Periodic

Units: VelocityPerTemperature_F (that is, Length per Time per Temperature_F)

Description: Periodic table of coefficients

Information: Typically this represents a unit depth per month per degree Fahrenheit (for example, inches per month per degree Fahrenheit)

I/O: Required input

Links: Not linkable

Method Details

The method will be passed in a current estimate of Surface Area and Average Surface Area. The latter is an average of the current estimate and previous timestep’s value. In this description, it is called SurfaceAreaAvg. Similarly, StreamsideAreaAvg, RiverAreaAvg, TerraceAreaAvg and RemainingAreaAvg are all averages of the current and previous values.

In the following steps, the FlowToVolume and VolumeToFlow notation indicates that the specified expression will be converted from a flow to a volume (or vice versa) using the timestep length. This is necessary for the units to work correctly as evaporation [Volume units] is computed as a coefficient [Length/Time units] times an area [Length2 units].

The method does the following:

1. Get the value from the periodic Gross Evaporation Coefficient slot. If not valid, issue an error.

2. Compute Gross Evaporation:

3. Get the value from the periodic River Evaporation Coefficient slot. If not valid, issue an error.

4. Look up the Pool Elevation at t and t-1 on the Elevation River Area table to get the RiverArea at t and t-1. Then

5. Compute River Evaporation:

This simulates that the river evaporation that would have occurred without the reservoir is a function of area and coefficient.

6. Get the value from the periodic Streamside Coefficient slot. If not valid, issue an error.

7. Look up the Pool Elevation at t and t-1 on the Elevation Streamside Area table to get the StreamsideArea at t and t-1. Then:

8. Get the value from the periodic AverageTemperature slot. If not valid, issue an error.

9. Compute Streamside Evaporation:

This simulates that the streamside evaporation that would have occurred without the reservoir is a function of area, coefficient, and average air temperature.

10. Get the value from the periodic Terrace Coefficient slot. If not valid, issue an error.

11. Look up the Pool Elevation at t and t-1 on the Elevation Terrace Area table to get the Terrace Area at t and t-1. Then:

12. Compute Terrace Evaporation:

This simulates that the terrace evaporation that would have occurred without the reservoir is a function of area, coefficient, and average air temperature.

13. Compute the average Remaining Area as follows:

If RemainingAreaAvg is less than zero, an error will be issued as the table data is incorrect.

14. Get the value from the periodic Average Precipitation. If not valid, issue an error.

15. Compute RemainingEvaporation:

This simulates that all of the precipitation on the Remaining Area would have evaporated.

16. Compute Salvage Evaporation:

17. Compute Evaporation as follows:

The Evaporation is a volume that is removed from the reservoir mass balance in the dispatch method.

Single Evaporation

In the Single Evaporation method, evaporation is calculated linearly from the Single Evaporation Coefficient entered by the user. The total evaporated volume is a function of the average Reservoir Surface Area over the timestep, the Single Evaporation Coefficient, and the length of the timestep. The following slots are specifically associated with this method.

Slots Specific to This Method

Elevation Area Table

Type: Table Slot

Units: LENGTH vs AREA

Description: Pool Elevation vs Surface Area

Information:

I/O: Required input

Links: Not linkable

Evaporation

Type: SeriesSlot

Units: VOLUME

Description: Volume of water lost to evaporation during one timestep

Information:

I/O: Output only

Links: Not linkable

Single Evap Coeff

Type: Table Slot

Units: LENGTH PER time

Description: Rate of evaporation

Information: This slot contains a single value that represents the evaporation rate.

I/O: Required input

Links: Not linkable

Precipitation Rate

Type: SeriesSlot

Units: LENGTH per TIME

Description: Precipitation intensity for the given timestep

Information: Value must be input by the user for each timestep.

I/O: Optional; defaults to 0.0 if not input.

Links: Not linkable

Precipitation Volume

Type: SeriesSlot

Units: VOLUME

Description: Precipitation flow rate multiplied by the length of the timestep

Information: Used in the mass balance to solve for storage

I/O: Output only

Links: Not linkable

Surface Area

Type: SeriesSlot

Units: AREA

Description: Reservoir Surface Area calculated from the Elevation Area Table

Information:

I/O: Output only

Links: Not linkable

Method Details

The Surface Area of the Reservoir is calculated based on the Elevation Area Table. The Evaporation is then calculated using the following formula:

The volume of Precipitation that occurred over the timestep is then calculated using the following equation:

where:

– Evaporation Coefficient = SingleEvapCoeff entered by the user

– Surface Area = the current Surface Area of the Reservoir

– Surface Area(-1) = the Surface Area of the Reservoir at the previous timestep

Revised: 01/05/2024
