Functionality to Remove the Effect of a Reservoir
To remove the effect of reservoir storage and other processes, select the Pass Inflows method in the Disable Reservoir Processes category; see Pass Inflows in Objects and Methods for details. This performs the following functions.

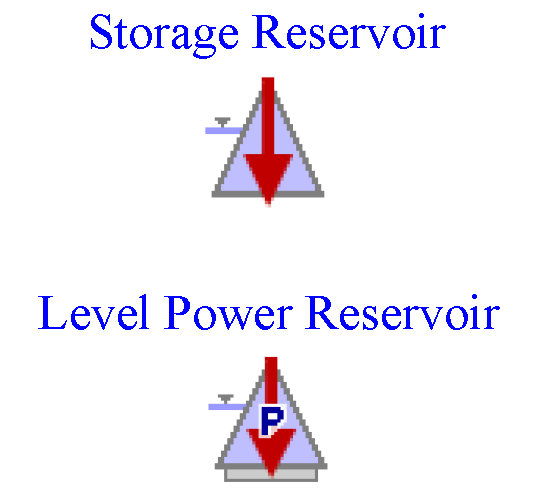

• Changes the Workspace icon. When this method is selected, the icon on the workspace is modified to indicate the Reservoir is not calculating storage as shown in Figure 4.1.
Figure 4.1
• Enables an alternative dispatch method. When this method is selected, only the Outflow Equals Sum of Inflows dispatch method is available. This dispatch method performs Equation 4.1.
(4.1)
Revised: 12/01/2020
