General Slots

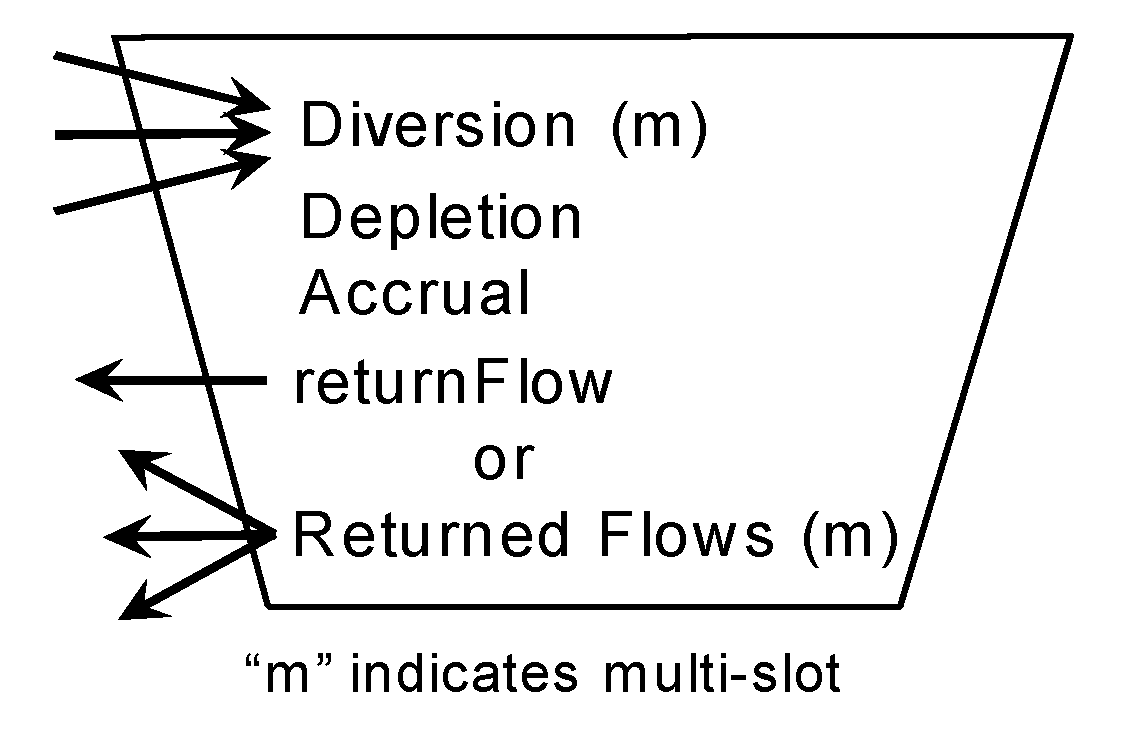

Figure 2.3 shows the general slots on the Diversion account. The arrows leading into and out of the account represent supplies. The “m” indicates the slot is a multi-slot, which can be linked to more than one other slot, as represented by the multiple arrows.
Note: ReturnFlow and Returned Flows are not general slots but are based on the selected Route and Split method (see returnFlow and Returned Flows). They are shown here because they can be linked.
Figure 2.3 General slots on Diversion Account
Accrual
Type: Series Slot
Units: Volume
Alternate Units: NA
Description: Cumulative volume of water depleted from the Begin Accrual Date to the given timestep
I/O: Account Solution
Links: No
Depletion
Type: Series Slot
Units: Flow
Alternate Units: Volume
Description: Water consumed by the given account
I/O: Input, Rules, Object-level Accounting Method, or Account Solution
Links: No
Diversion
Type: Multi Slot
Units: Flow
Alternate Units: Volume
Description: Water Diverted from a passthrough or storage account on another object.
I/O: Input, Rules, Object-level Accounting Methods
Links: Yes, from Diversion slot on another account
Maximum Accrual
Note: This slot is not yet used by SolveWaterRights().
Type: Series Slot
Units: Volume
Alternate Units: NA
Description: This slot represents the maximum accrual that is allowed during the accrual period. Maximum Accrual is not used in the account solution or in the water rights allocation but is available to hold data for viewing and use in Object-level Accounting Methods and Rules.
I/O: Input or Rules
Links: No
Revised: 08/03/2021
