Report Items Reference
This section provides details about the settings that apply to each type of report item.

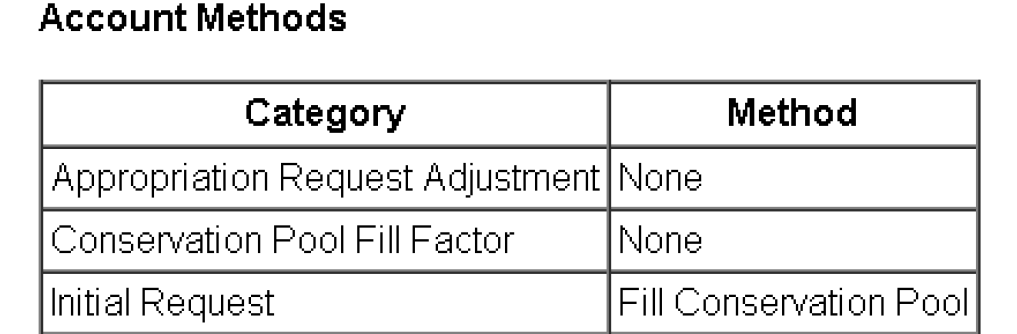

 Account Method Table

Item Type
Account Method Table
Description
Displays a table with an account’s method categories and the selected method in each category. Note: These are account level methods, not object level methods.
Setting
Type
Notes
Selection
Single Selection
The account whose methods should be displayed
Title
Single line text
The text to appear as the table title
Show Only Non-default Methods
Yes/No
If yes, only categories with a non-default method selected are included in the table.
Sample
 Account Section

Item Type
Account Section
Description
Displays a section describing an account on the workspace. The title is the name of the account. Sub-sections can be added to an account section.
Setting
Type
Notes
Account Name
Single Selection
The account associated with this section.
Include Account Type
Yes/No
If Yes, the account type is included in the section title.
Show Description
Yes/No
Not applicable.
Sample

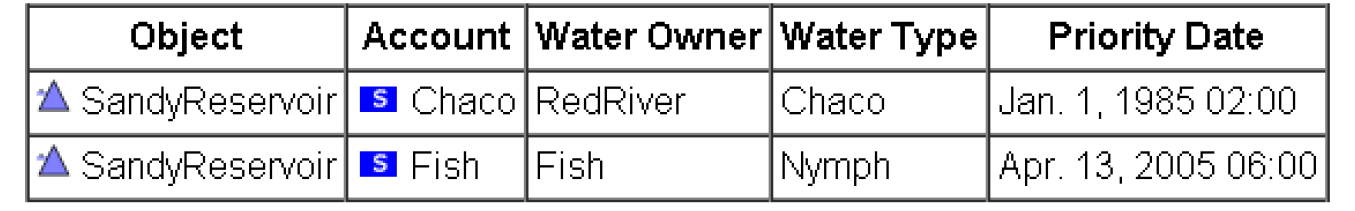

 Account Table

Item Type
Account Table
Description
Presents a table with a list of accounts (often those for a single simulation object) and optional columns for several account attributes including type, water type, water owner, and priority date
Setting
Type
Notes
Selection
Multiple Selection
The accounts to include in the table
Title
Single line text
The text to appear as the table title
Include Object Name
Yes/No

Include Account Name
Yes/No

Include Water Owner
Yes/No

Include Water Type
Yes/No

Include Priority Date
Yes/No

Sample

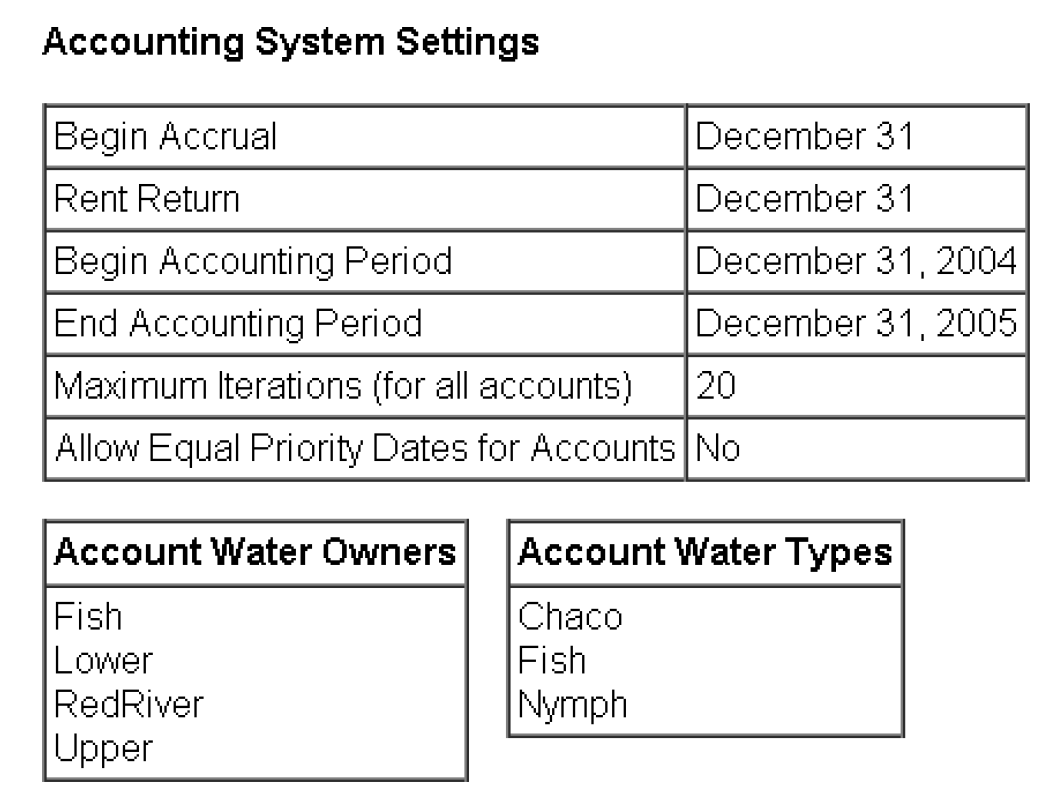

 Accounting System Settings

Item Type
Accounting System Settings
Description
Lists the information on the accounting system including range, accrual date, water types, owners, etc. This is the information shown in the Accounting, then Account System Configuration dialog.
Setting
Type
Notes
Include Account Water Owners
Yes/No
If yes, show a table of all user-defined Water Owners.
Include Account Water Types
Yes/No
If yes, show a table of all user-defined Water Types.
Include Supply Release Types
Yes/No
If yes, show a table of all user-defined supply Release Types.
Include Supply Destinations
Yes/No
If yes, show a table of all user-defined supply Destination Types.
Sample

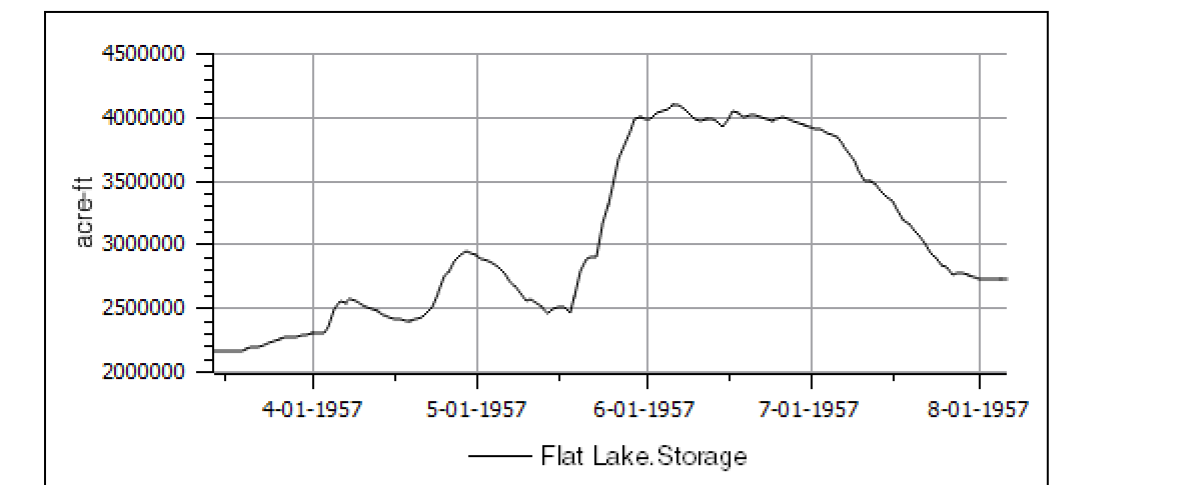

 Chart

Item Type
Chart
Description
Displays an image of an existing Chart output device. Use the configured timestep or override with an optional setting.
Setting
Type
Notes
Chart Name
Single Selection
The existing chart device to include in the report
Title
Single line text
The text to appear above the chart.
Date/Time
Date/Time
The timestep to be used for series data within the chart. If left blank, the timestep defined on the chart is used. If specified, that date is used. See Date/Time Specification for additional information.
Chart Width (pixels)
Integer
The width of the chart in pixels. The default is 500.
Chart Height (pixels)
Integer
The height of the chart in pixels. The default is 500.
Sample

Item Type
Description
Shows an Image imported from a file. An optional caption setting is provided.
Setting
Type
Notes
Image Name
Single-line text
The image name is used only to identify the image within the Report Layout tree. It is initially taken from the imported image’s file name.
Caption
Multi-line text
A string of text to appear below the image. For more information on images, see the text below the table.

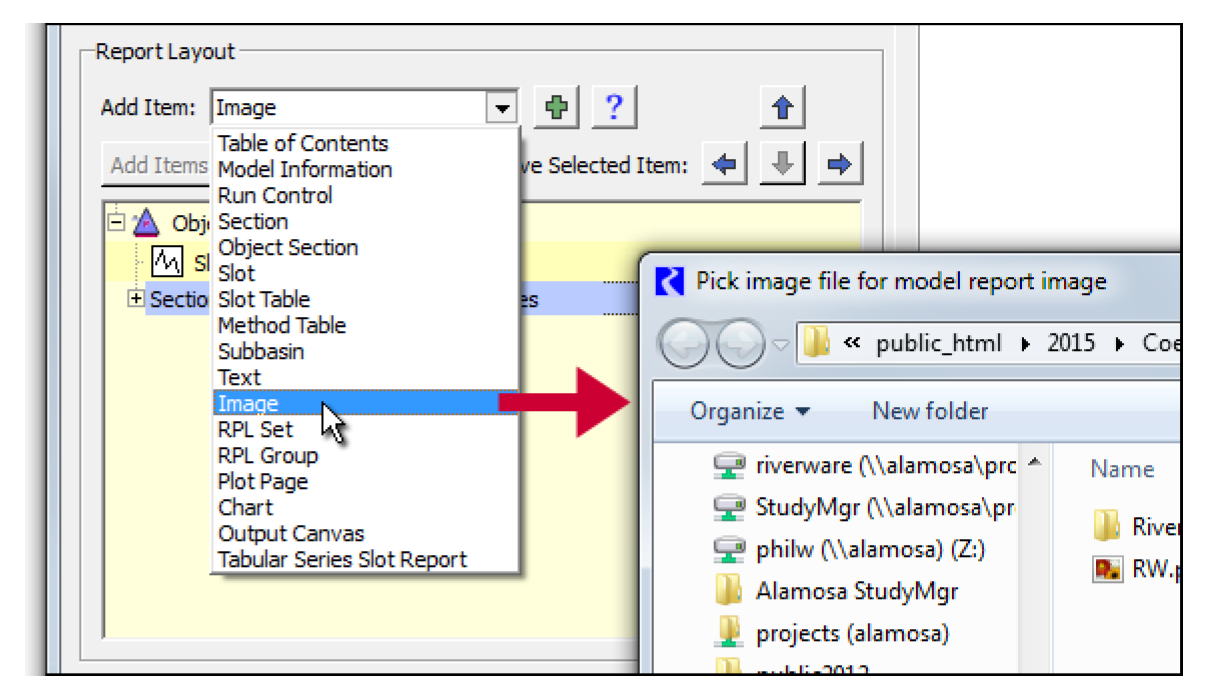

When you add an Image to the layout, a file selector is opened which allows you to select an image file.
After picking an image file, a new Image item is created. Optional Caption text can be specified with each image item. In the generated model report, caption text is shown under the image. For sufficiently wide images (at least 300 pixels wide), the caption is horizontally centered below the image and wrapped to the image width. Captions for narrower images are not constrained in this way; they appear under the image, left aligned, and flowing to the full display width of the generated model report page. It is not currently possible to select a different image for an existing image item. If a different image is desired, a new image item must be created. (You may wish to retain the old image item during the creation of the new image item so that the old image caption text can be copied and pasted to the new image item).
For imported images, the Image data is stored in the model file in the model report output device configuration. Including many large images in a model report configuration could potentially increase the size of the model file significantly and could result in slower model file loading.

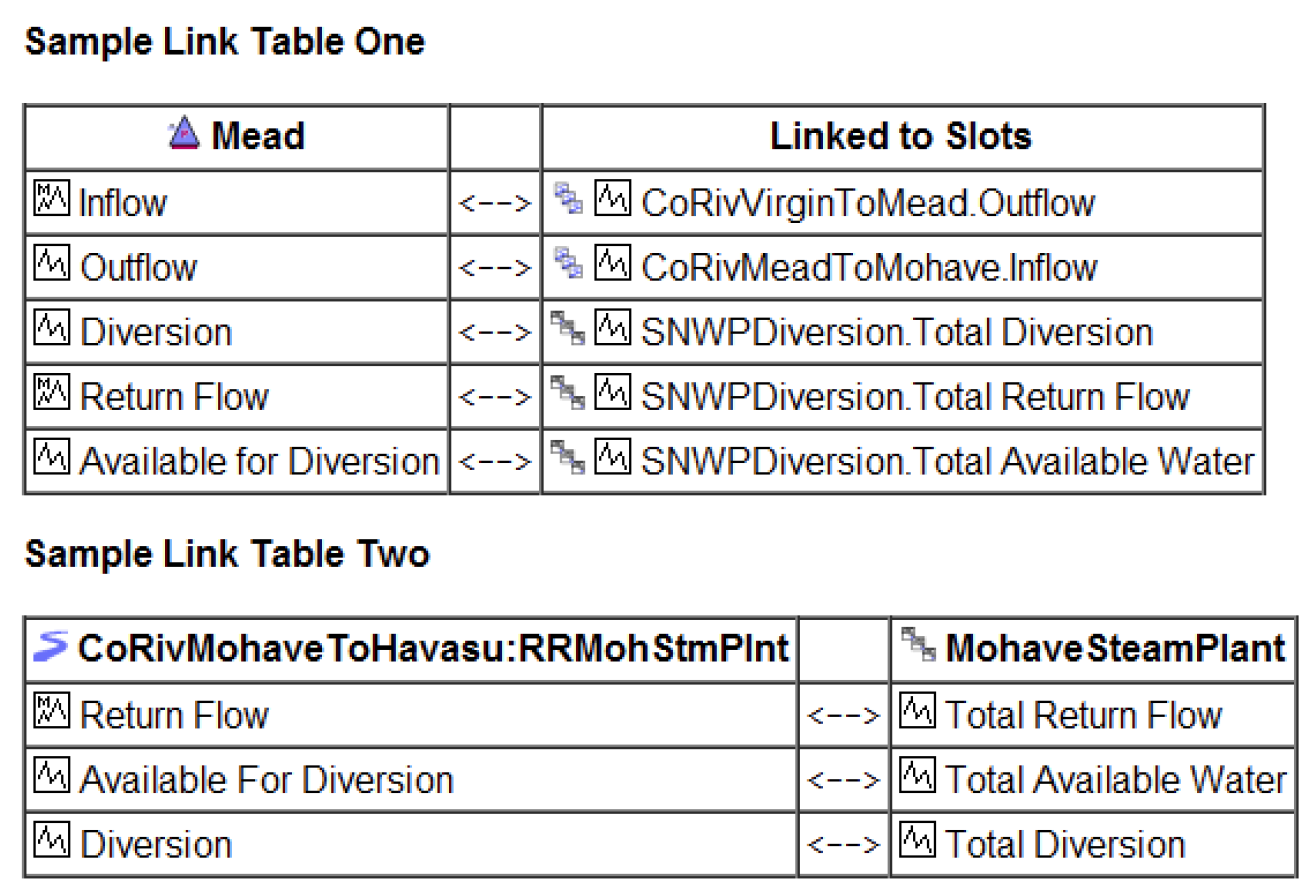

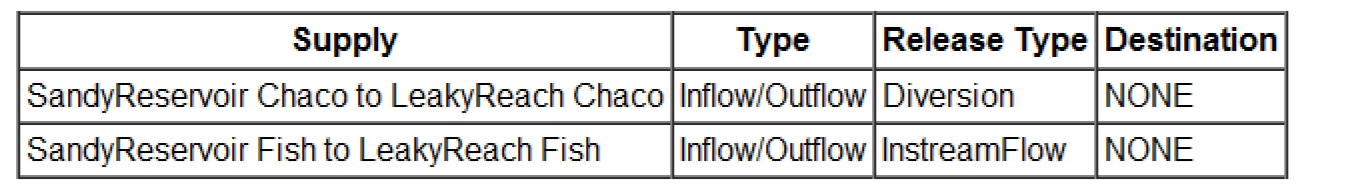

 Link Table

Item Type
Link Table
Description
Presents a table of the physical links to slots on the specified object, optionally limited to links to the slots on a second specified object.
Setting
Type
Notes
Title
Single line text
The text to appear as the table title
Object Name 1
Object Selection

Object Name 2
Object Selection
If specified, only the links between slots on Object 1 and Object 2. If not specified, any links from slots on Object 1 will be shown.
Sample

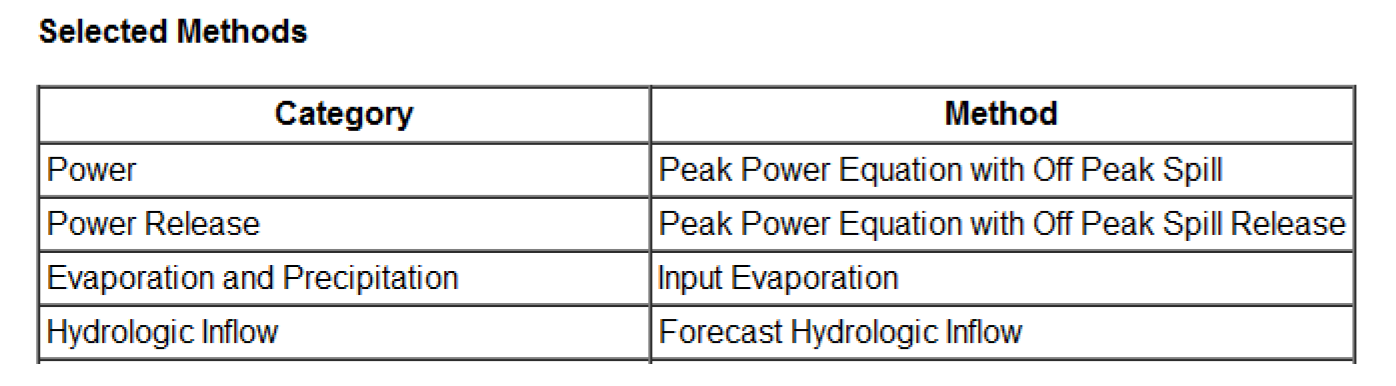

 Method Table

Item Type
Method Table
Description
Displays a table of the method categories and the selected method in each category. When accounting is enabled, this table includes Object Level Accounting Methods.
Setting
Type
Notes
Object Name
Single Selection

Title
Single line text
If present, will appear as the title of the table.
Show Only Non-default Methods
Yes/No

Sample

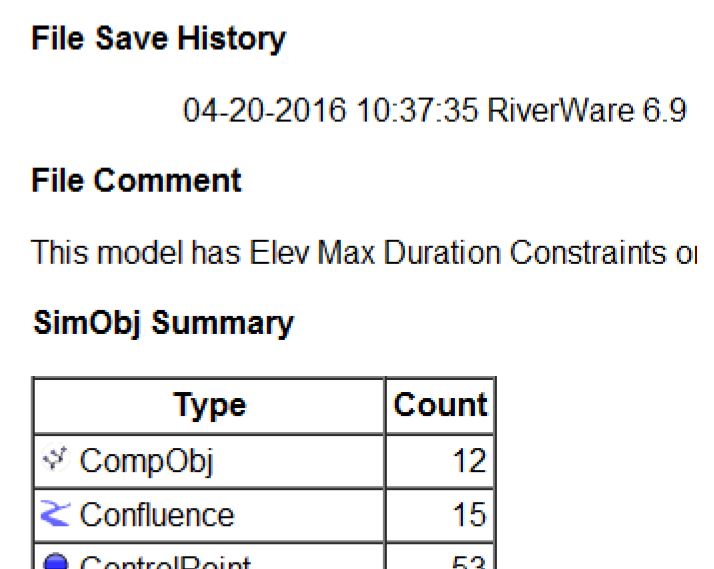

 Model Information

Item Type
Model Information
Description
Lists the information contained in the Model Info dialog (accessed from the workspace using File, then Model Info), including the model’s save history and the specified comments.
Setting
Type
Notes
Include File Save History
Yes/No

Include File Comment
Yes/No

Sample
 Object Section

Item Type
Object Section
Description
Creates a section for a workspace object, whose title is the name of that object and whose contents are controlled by the items in the section.
Setting
Type
Notes
Object Name
Single Selection

Include Object Type
Yes/No

Show Description
Yes/No
Optionally include the description shown on the Description tab in the Open Object dialog.
Sample

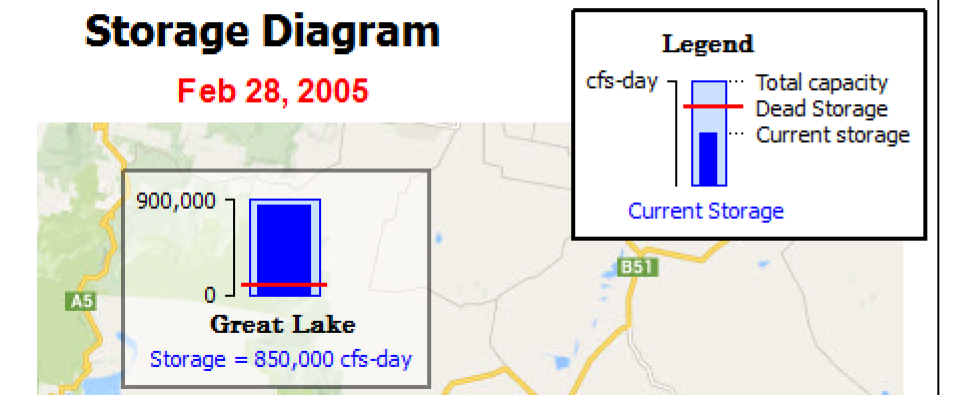

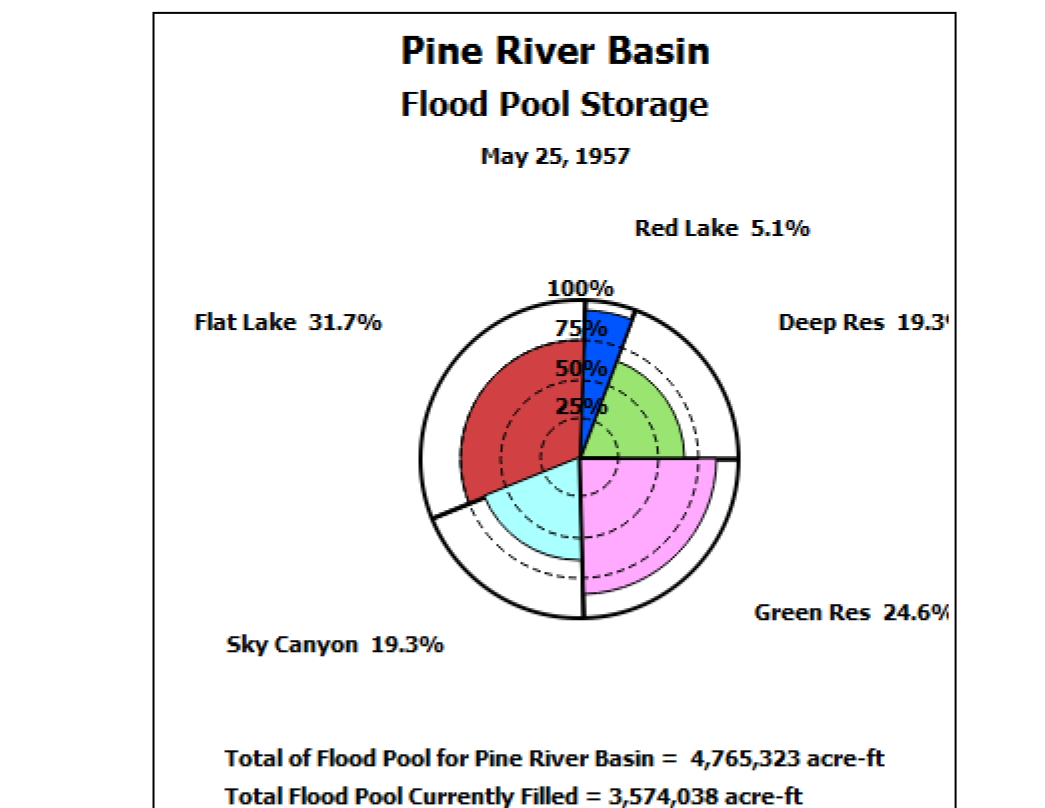

 Output Canvas

Item Type
Output Canvas
Description
Displays an image of an existing Output Canvas device. Use the configured timestep or override with an optional setting. See Output Canvas for additional information.
Setting
Type
Notes
Output Canvas Name
Single Selection
The existing Output Canvas device to include in the report
Title
Single line text
The text to appear above the canvas image.
Date/Time
Date/Time
The timestep to be used for series data within the output canvas. If left blank, the timestep defined on the canvas is used. If specified, that date is used. See Date/Time Specification for additional information.
Max Width (pixels)
Integer
The maximum width of the canvas in pixels. The default is 10000. The image is the natural size or smaller and the aspect ratio from the original canvas is maintained.
Max Height (pixels)
Integer
The maximum height of the canvas in pixels. The default is 10000. The image is the natural size or smaller and the aspect ratio from the original canvas is maintained.
Sample

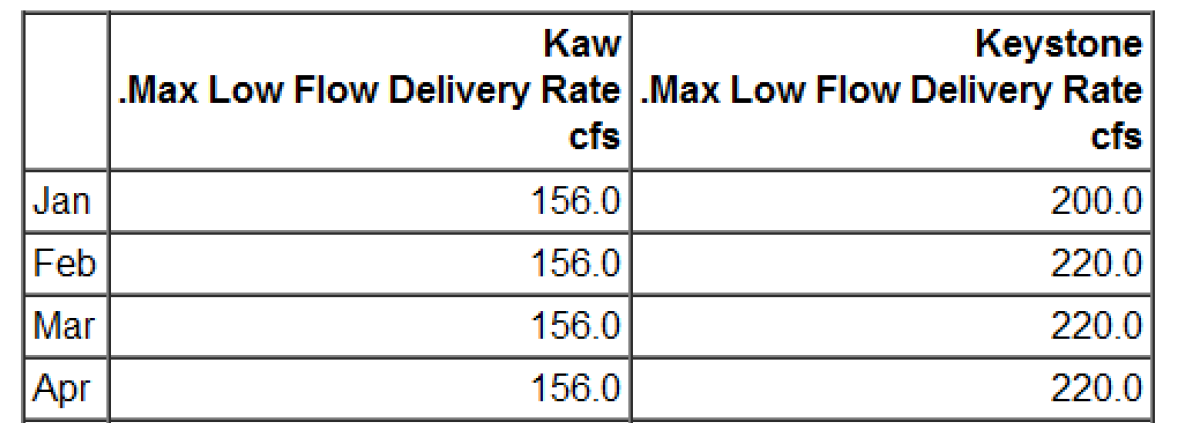

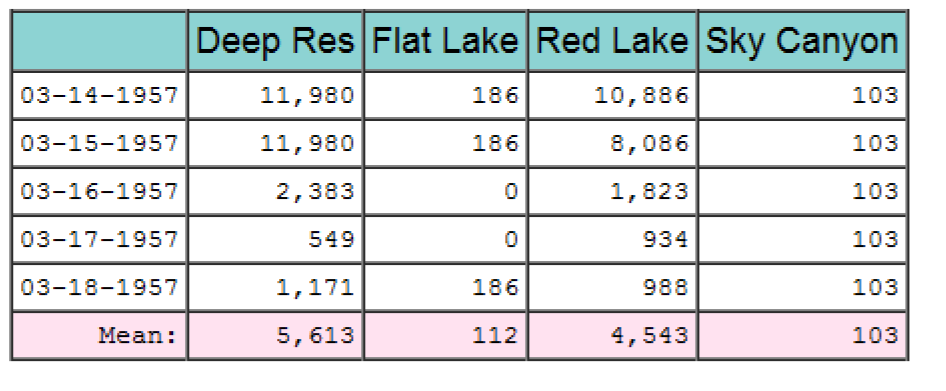

 Periodic Slot Table

Item Type
Periodic Slot Table
Description
Shows a table where the rows represent the time intervals of a periodic slot and the columns represent the columns in one or more periodic slots. These are used to display periodic slots that have only one column.
Note: An error is generated if periodic slots having different overall periods are included. However, different time interval configurations can be represented within a single Periodic Slot Table. This includes mixes of regular interval and irregular interval configurations, and different specific interval start times.
Setting
Type
Notes
Title
Single line text
If present, will appear as the title of the table.
Column Slots
Sortable Slot Selection
See Lists of Items for details on selecting lists of items,
Sample
 Plot Page

Item Type
Plot Page
Description
Displays an image of an existing plot page output device. Use the Plot Page’s timesteps or override with an optional setting.
Setting
Type
Notes
Plot Page Name
Single Selection

Title
Single line text
If present, will appear as the title of the plot page.
Width (pixels)
Integer

Height (pixels)
Integer

Start Date
Date/Time
Specify the date/times to use in the report, if desired. This will override the Plot Page dates when specified.
See Date/Time Specification for details.
End Date
Date/Time
Sample

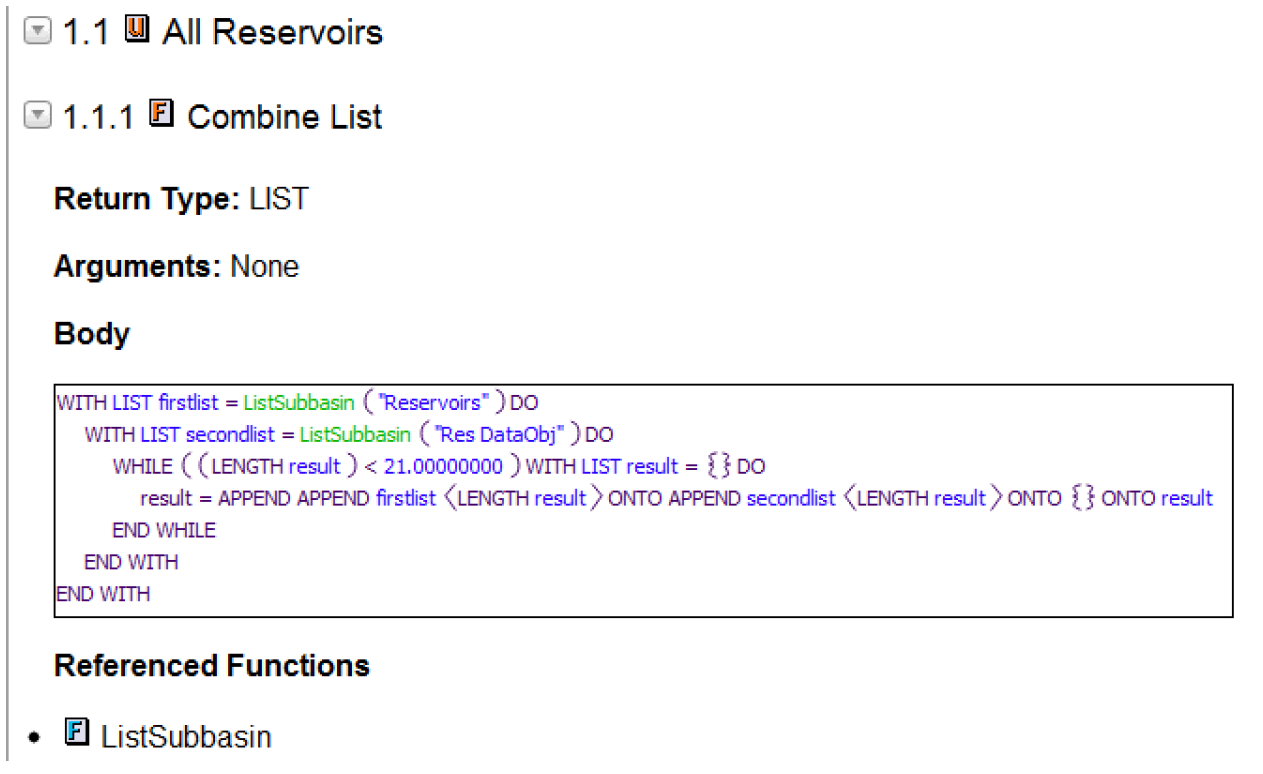

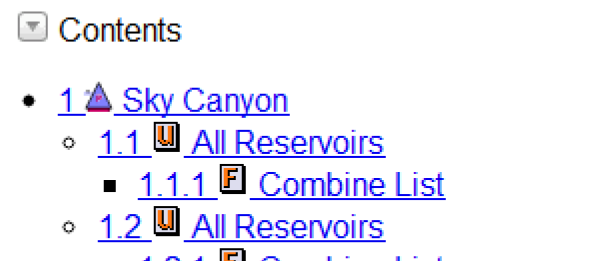

 RPL Group

Item Type
RPL Group
Description
Displays a section for a single policy or utility group in a RPL set.
Setting
Type
Notes
Set
Single Selection
These items might generate output for a RPL Report Group, and that group might include references to workspace objects, slots, or subbasins, so these items include format settings that apply to slots, objects, and subbasins. For example, each includes the “Slot: Include Object Name” setting which is used when generating output for a RPL Report Group containing a slot.
Group
Single Selection
Show Execution Properties
Yes/No
Show the index or priority range of the group (where applicable) and whether the group is enabled or disabled.
Show Descriptions
Yes/No
Include the Descriptions entered on each RPL Editor dialog. See Descriptions in RiverWare Policy Language (RPL) for details.
Show Notes
Yes/No
Include the Notes entered on each RPL Editor dialog. See Notes in RiverWare Policy Language (RPL) for details.
Show RPL Comments
Yes/No
Include Comments that are inline in the RPL Expression. See Comments in RiverWare Policy Language (RPL) for details.
List Rules in Order of Execution
Yes/No
For Policy Groups in RBS Rulesets, Initialization Rules Sets, and Iterative MRM Rules Sets, when set to Yes, the rules are displayed based on the Agenda Order. (See Show Advanced Properties in RiverWare Policy Language (RPL) for details on the Agenda Order.) When set to No, rules are displayed in the order they are shown in the RPL Set Editor. For Report Groups, Optimization Goal Sets, Accounting Methods and functions, this setting has no effect. These items are always displayed in the same order as in the RPL Set Editor.
Sample

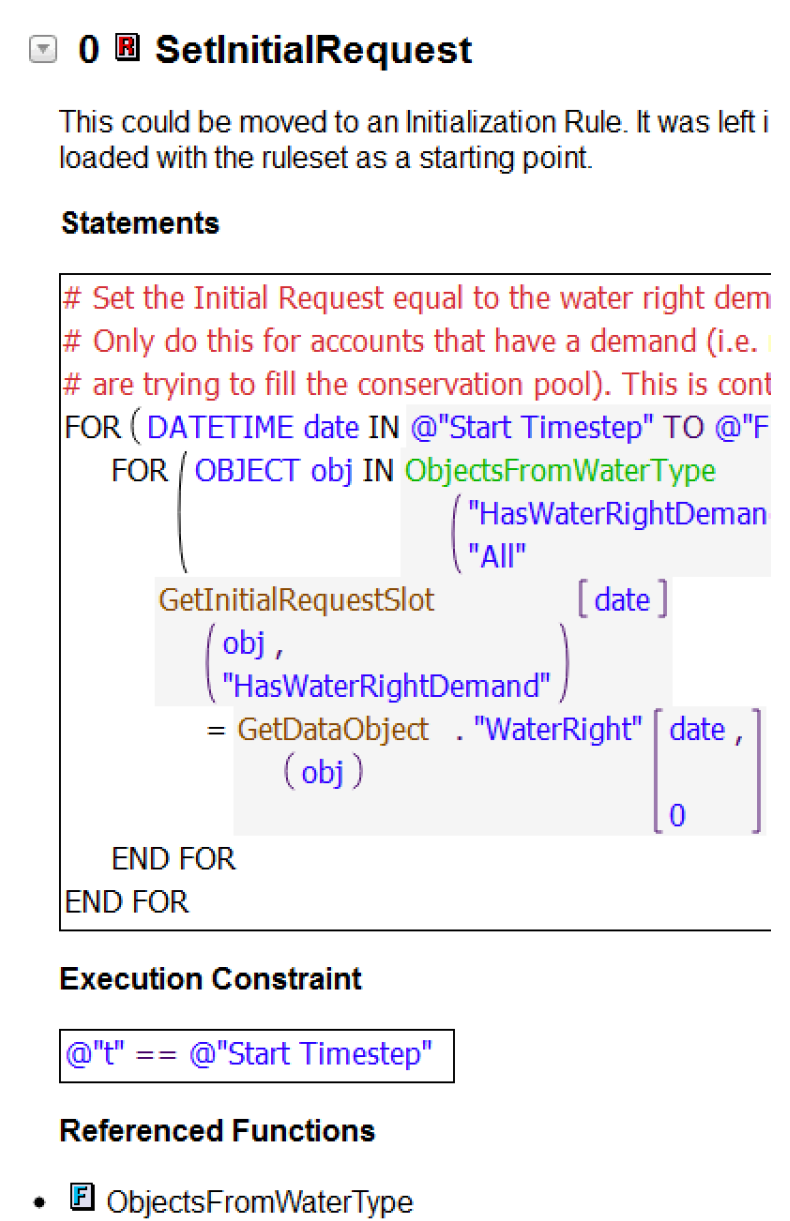

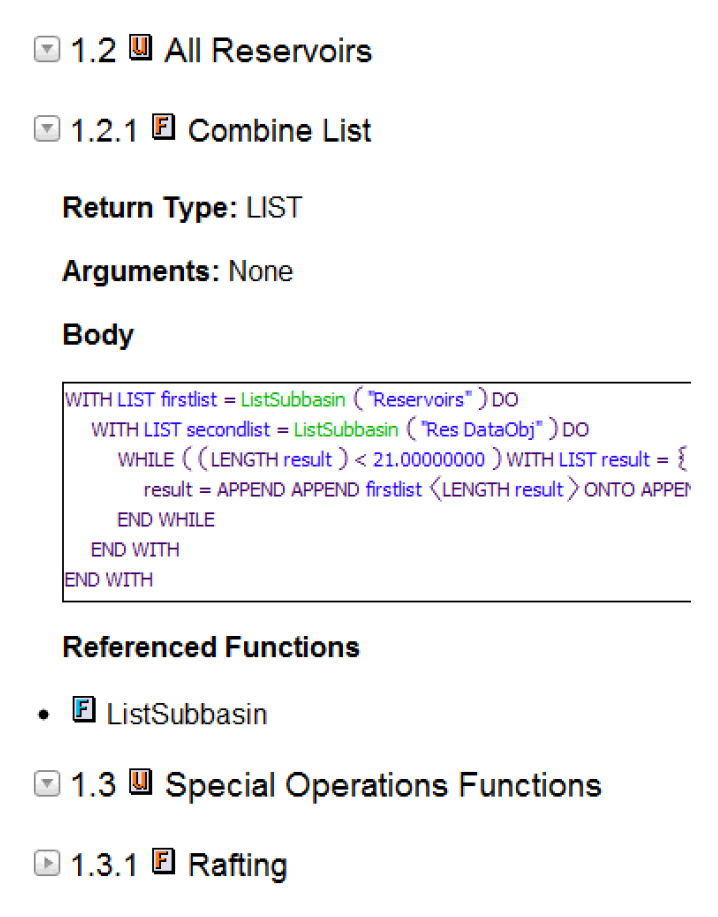

 RPL Rule/Goal

Item Type
RPL Rule/Goal
Description
Displays a section for a single RPL item (Rule/Goal/Accounting Method/Init Rule).
Setting
Type
Notes
Set
Single Selection

Rule / Goal / Method / Init Rule
Single Selection
The Setting name depends on the type of set selected.
Show Execution Properties
Yes/No
Show the index, priority, and flag where applicable and whether the item is enabled or disabled.
Show Description
Yes/No
Include the Descriptions entered on each RPL Editor dialog. See Descriptions in RiverWare Policy Language (RPL) for details.
Show Notes
Yes/No
Include the Notes entered on each RPL Editor dialog. See Notes in RiverWare Policy Language (RPL) for details.
Show RPL Comments
Yes/No
Include Comments that are inline in the RPL Expression. See Comments in RiverWare Policy Language (RPL) for details.
Sample
 RPL Set

Item Type
RPL Set
Description
Displays a section for each policy and utility group in a RPL set.
Setting
Type
Notes
Set
Single Selection
These items might generate output for a RPL Report Group, and that group might include references to workspace objects, slots, or subbasins, so these items include format settings that apply to slots, objects, and subbasins. For example, each includes the “Slot: Include Object Name” setting which is used when generating output for a RPL Report Group containing a slot. See Blocks and Groups in RiverWare Policy Language (RPL) for details on groups. See RPL Printing and Formatting in RiverWare Policy Language (RPL) for details on the RPL selector.
Show Policy Groups
Yes/No
Show Utility Groups
Yes/No
Show Global Groups
Yes/No
Show Execution Properties
Yes/No
For each item in the set, show the index, priority, and flag where applicable and whether the item is enabled or disabled.
Show Descriptions
Yes/No
Include the Descriptions entered on each RPL Editor dialog. See Descriptions in RiverWare Policy Language (RPL) for details.
Show Notes
Yes/No
Include the Notes entered on each RPL Editor dialog. See Notes in RiverWare Policy Language (RPL) for details.
Show RPL Comments
Yes/No
Include Comments that are inline in the RPL Expression. See Comments in RiverWare Policy Language (RPL) for details.
List Rules in Order of Execution
Yes/No
For RBS Rulesets, Initialization Rules Sets, and Iterative MRM Rules Sets, when set to Yes, the rules are displayed based on the Agenda Order. (See Show Advanced Properties in RiverWare Policy Language (RPL) for details on the Agenda Order.) When set to No, rules are displayed in the order they are shown in the RPL Set Editor. For Report Groups, Optimization Goal Sets, Accounting Methods and functions, this setting has no effect. These items are always displayed in the same order as in the RPL Set Editor.

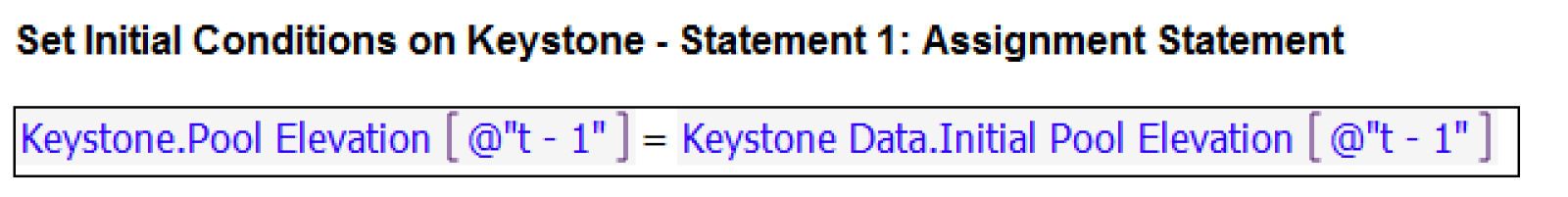

 RPL Statement

Item Type
RPL Statement
Description
Shows a single top-level RPL Statement within a RPL Block (a Rule, Goal, User-Defined Accounting Method or Initialization Rule).
Setting
Type
Notes
Set
Single Selection

Rule / Goal / Method / Init Rule
Single Selection
The Setting name depends on the type of set selected.
Statement
Single Selection
The RPL Statement within the selected RPL Block. Statement items are presented in a menu in the form of the statement number (1) and the Statement name.
Note: The default statement name is the statement type (Assignment, Print, etc.). You can rename statements as follows. From the main RPL Set editor, Select View, then Show Statements. Locate the desired statement in the tree-view. Right-click the statement and select Rename. Enter a new name.
Title
Text
Optional title text placed above the RPL Statement. The line editor includes a Set to Rule and Statement Name button, which recomputes the title from the RPL Block and Statement names.
Show RPL Comments
Yes/No
Include comments that are inline in the RPL Expression.
Sample

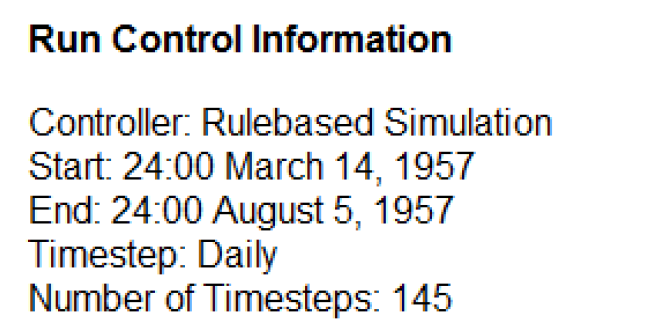

 Run Control

Item Type
Run Control
Description
Shows the information contained in the single run control dialog, including the controller, start and end dates, and timestep size.
Setting
Type
Notes
N/A


Sample

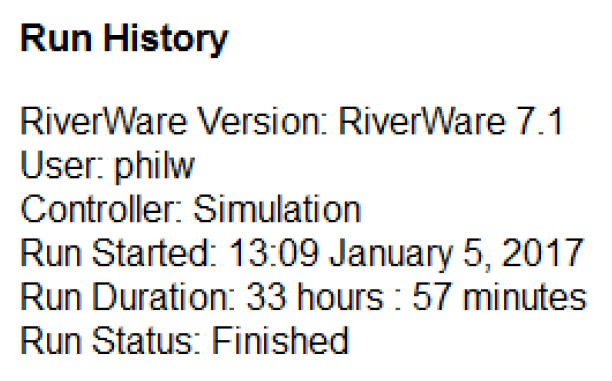

 Run History

Item Type
Run History
Description
Shows status information about the last run.
Setting
Type
Notes
Include RiverWare Version
Yes/No
Show the RiverWare version used for the last run.
Include User
Yes/No
Show the user name for the user that made for the last run.
Include Controller
Yes/No
Show the RiverWare controller used for the last run.
Include Run Start Time
Yes/No
Display the time at which the last run was started.
Include Run Duration
Yes/No
Display the duration of the last run.
Include Run Status
Yes/No
Show the status of the last run including Finished, Aborted, Stopped, etc.
Sample

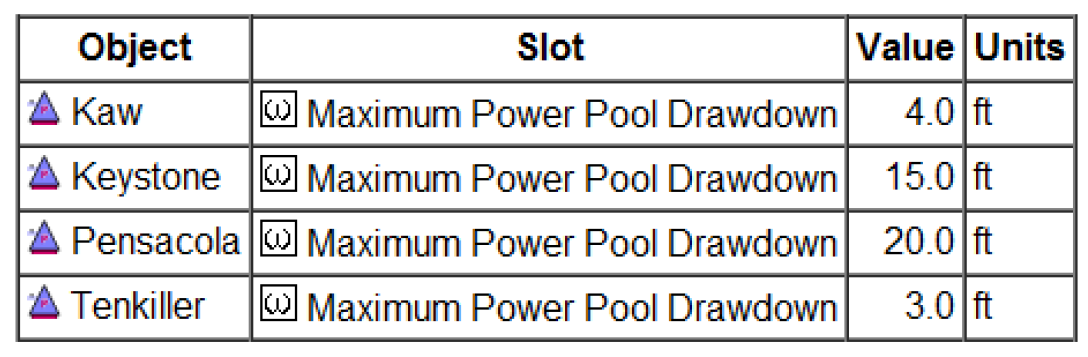

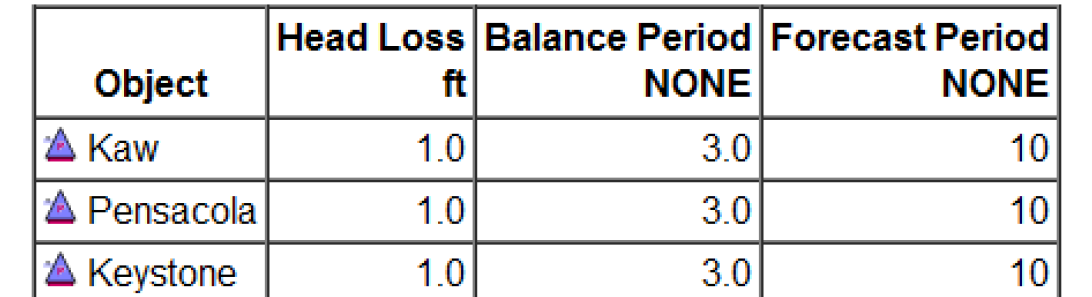

 Scalar Slot Grid

Item Type
Scalar Slot Grid
Description
Presents a table showing a grid of scalar slot values. The rows of the table represent objects while the columns represent one or more named scalar slots.
Setting
Type
Notes
Title
Single line text
If present, will appear as the title of the table.
Row Objects
Sortable Object List
See Lists of Items for details on selecting lists of items.
Column Slots
Slot Name List
See Lists of Items for details on selecting lists of items.
Sample

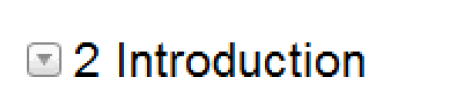

 Section

Item Type
Section
Description
Presents a titled section whose contents are controlled by the items in the section.
Setting
Type
Notes
Title
Single line text
The text used as the section name.
Sample

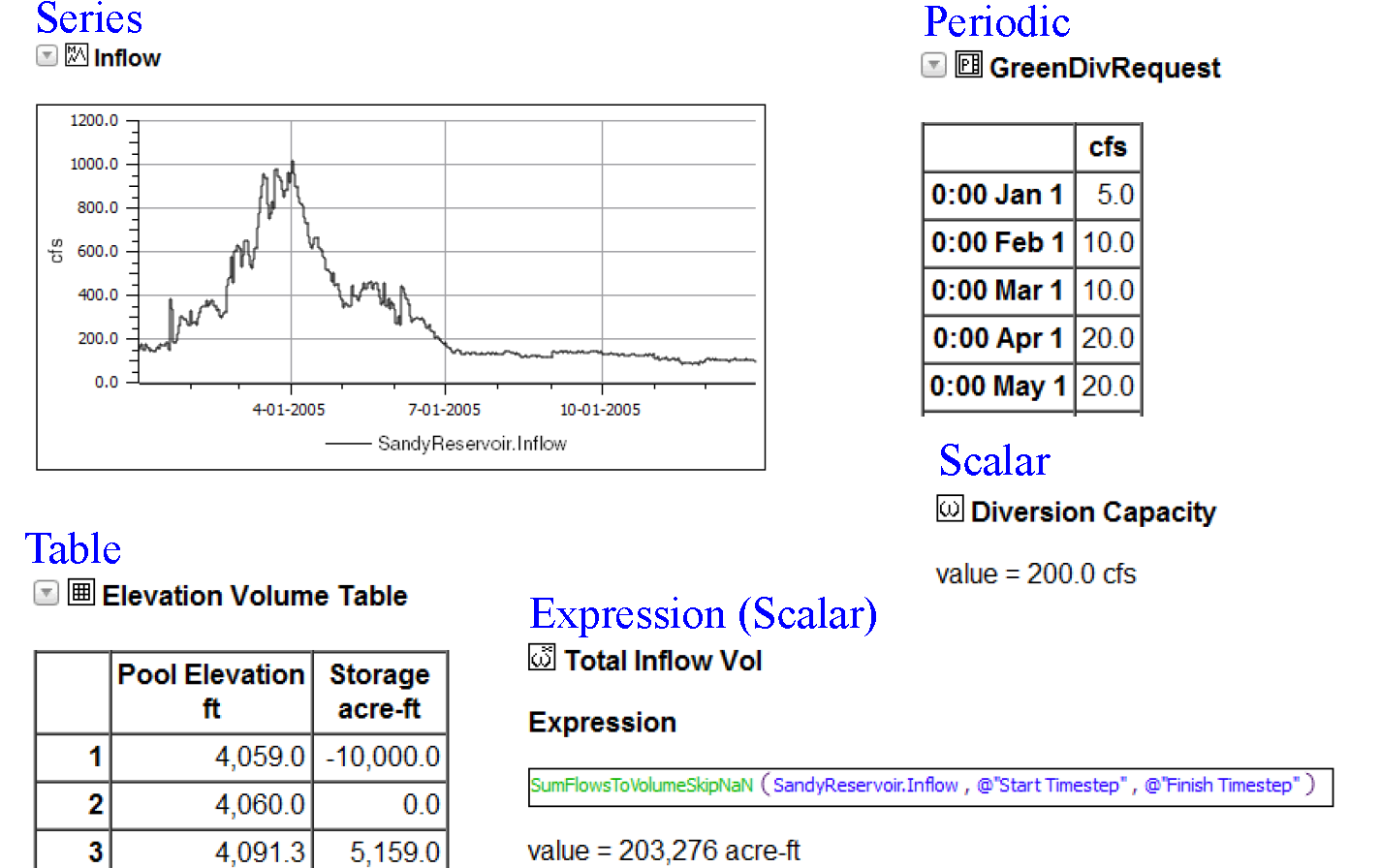

 Slot

Item Type
Slot
Description
Shows a slot’s name, description, and values. For, table, periodic and scalar slots, the values are shown. For series slots, a plot of the time series is shown. For Expression Slots, the RPL expression is shown along with a plot (series) or value (scalar)
Setting
Type
Notes
Slot Name
Single Selection

Include Object Name
Yes/No

Include Account Name
Yes/No

Include Slot Type
Yes/No

Maximum Columns Per Table
Integer
If positive, values may be displayed in multiple tables as needed.
Plot Width (pixels)
Integer
Applies to SeriesSlots whose values are plotted.
Plot Height (pixels)
Integer
Applies to SeriesSlots whose values are plotted.
Add PE/Storage Column
Yes/No
For certain table slots like the reservoir’s Elevation Area Table, a column of storage values corresponding to the elevations (using the Elevation Volume Table) are shown. Select No to not show this Storage column.
Start Date
Date/Time
Specify the date/times to use in the plot of series data, if desired. This will override the default dates when specified.
See Date/Time Specification for details.
End Date
Date/Time
Show Description
Yes/No
Include the description entered on the Open Slot dialog.
Show RPL Comments
Yes/No
For Expression Slots, show the RPL inline comments.
Samples
 Slot Value Table

Item Type
Slot Value Table
Description
Presents a table showing the name and a single value for one or more selected slots. Each row of the table is a slot. Columns include the Slot, Object (optional), Account (optional), Value, and Units.
Setting
Type
Notes
Selection
Multiple Selection

Title
Single line text
If present, will appear as the title of the table.
Include Object Name
Yes/No

Include Account Name
Yes/No

Sample
 Subbasin

Item Type
Subbasin
Description
Shows a table of the members of a subbasin.
Setting
Type
Notes
Subbasin
Single Selection

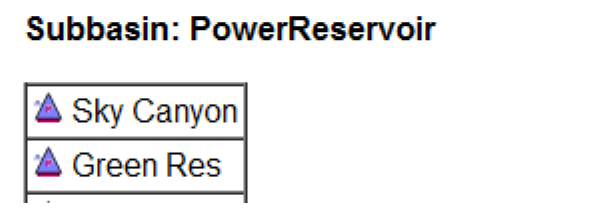

Sample
 Supply Table

Item Type
Supply Table
Description
Presents a table of supplies and optional columns for supply attributes including type, release type, and destination.
Setting
Type
Notes
Selection
Multiple Selection
The Supplies to include in the table
Title
Single line text
The text to appear as the table title
Include Supply Type
Yes/No
Show whether the supply is an Inflow/Outflow, Diversion/Return Flow, or Transfer supply
Include Release Type
Yes/No

Include Destination
Yes/No

Sample
 Table of Contents

Item Type
Table of Contents
Description
Lists the sections in the report, with hyperlinks to their locations.
Setting
Type
Notes
Title
Single line text

Sample
 Tabular Series Slot Report

Item Type
Tabular Series Slot Report
Description
Displays an existing Tabular Series Slot Report output device in either HTML or text format. The title defined within the Tabular Series Slot Report is extracted from the report and presented as a report item title text within the generated Model Report. Use the configured timesteps or override with an optional setting.
Setting
Type
Notes
Tabular Series Slot Report Name
Single Selection
The existing tabular series slot report device to include in the report
Tabular Series Slot Report Format
HTML/Text
Tabular Series Slot Reports can be generated as an HTML table or as a Text table.
Start Date
Date/Time
Specify the date/times to use in the report, if desired. This will override the Tabular Series Slot Report dates.
See Date/Time Specification for details.
End Date
Date/Time
Sample
 Text

Item Type
Text
Description
Prints user defined text. The text can be Plain Text or Rich Text which allows formatting.
Setting
Type
Notes
Text
Multi-line text
Select More to edit the text in a dialog.
Type
Rich or Plain
Specify whether the text is Plain Text (non-formatted letters and numbers) or Rich Text (formatted with fonts, colors, size, bullets etc). See Text Considerations for details on Rich Text.

Revised: 01/10/2022
