Copy defined thresholds to other slots

System Control Table (SCT) : Using the SCT : Configuring Threshold Alerts : Copy defined thresholds to other slots

Use this procedure to copy and paste alert thresholds from one slot to others. This procedure simplifies the process of defining thresholds for multiple slots; you can copy thresholds from one slot and paste them to one or more others, and then edit the copied thresholds to fine-tune the settings.

Note: Slot references are copied as is; no attempt is made to substitute a new object name.

1. Go to the Edit Series Slot List tab. Alternatively, press Alt+Shft+S.

2. Select the Configure Color Alerts option.

3. Select the slot whose thresholds you want to copy.

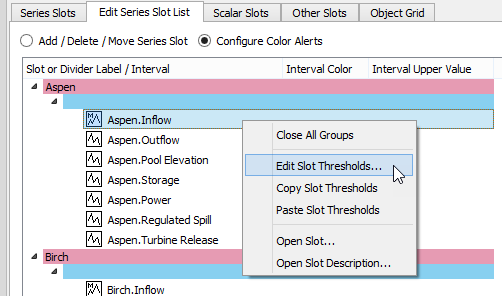

4. Right-click and select Copy Slot Thresholds in the shortcut menu.

5. Select a slot to which you want to copy the thresholds.

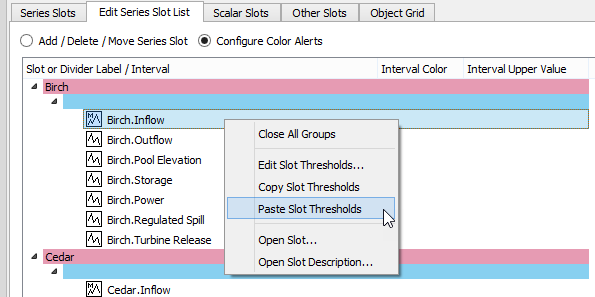

6. Right-click and select Paste Slot Thresholds in the shortcut menu.

The thresholds are applied to the selected slot exactly as defined. You can then edit individual settings to define threshold values and colors that are unique to this slot, if you want.

7. Optionally, you can repeat Step 5. and Step 6. to paste the same thresholds to additional slots.
