Scripts
The following changes have been made to RiverWare scripts.
New Script Actions
The following actions were added to work with the new Ensemble Data Tool (EDT), see Ensemble Data Tool. These actions allow for post-processing and analysis of concurrent MRM results within RiverWare.
• Analyze Ensemble Data Set - Compute statistics on an ensemble data set. See Analyze Ensemble Data Set in Automation Tools for more information.
• Create Ensemble Data Set - Create an ensemble data set from an RDF file. See Create Ensemble Data Set in Automation Tools for more information.
• Delete Ensemble Data Set - Remove an open ensemble data set from the EDT. See Delete Ensemble Data Set in Automation Tools for more information.
• Open Ensemble Data Set Tool - Open the EDT dialog box. See Open Ensemble Data Tool in Automation Tools for more information.
Script Action Settings Viewer

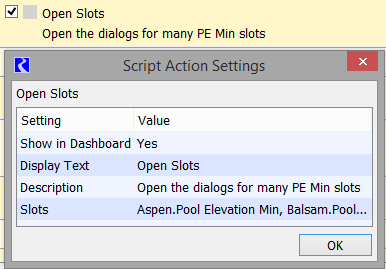

Accessible from the Script Dashboard, a new dialog called the Script Action Settings shows the configuration of a script action without having to open the Script Editor. The screenshot below shows an action on the dashboard and then below it the corresponding Script Action Settings dialog box. Access the settings viewer using right-click context menu and then View This Action’s Settings.
For more information see Operations for Actions on the Dashboard in Automation Tools.
Workspace Scripts Menu
Previously, the Scripts menus in the workspace and the SCT displayed a list of all scripts that exist in the model. Two enhancements have been made to these menus:
1. The list of scripts is now those in the default script group
2. Script groups and the scripts they contain are now available as cascading submenus.

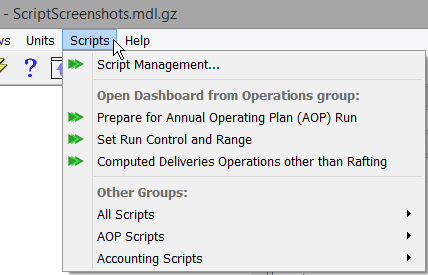

The following shows the new Scripts menu with the default “Operations” group shown. Three other groups show cascading menus.
a
For more information, see Accessing the Script Manager in Automation Tools.
Revised: 07/09/2023
