Configure the object grid display settings
Use this procedure to configure the display attributes of the object grid.
1. Go to the Object Grid tab.

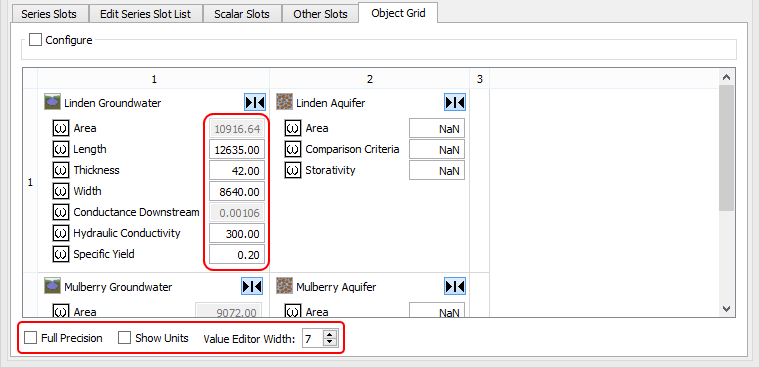

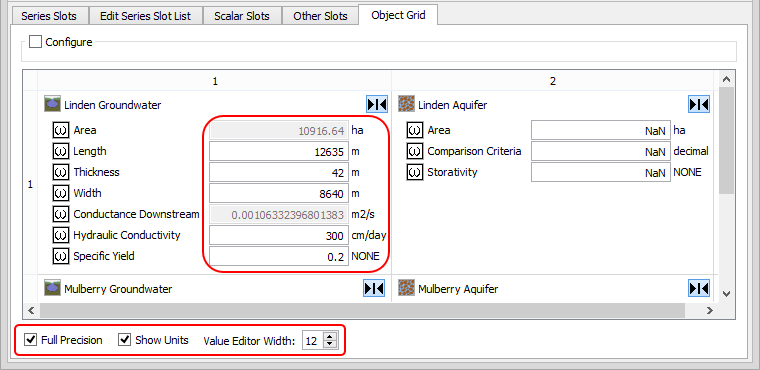

2. Configure slot display settings as follows.
– Select the Full Precision check box to display slot values at full precision. Full precision is the precision necessary to precisely represent the internal floating-point numeric value. Clear the check box to display slot values at the display precision only.
Note: This is just a display setting; you can always edit slot values at full precision, regardless of the precision displayed.
– Select the Show Units check box to display units next to each slot value. Clear the check box to hide the units.
Note: When units are hidden, you can hover over the slot value to display a tooltip with the unit.
– In the Value Editor Width text field, enter the total number of characters you want to display in the slot value fields. This is useful if horizontal space is limited. The supported range is 3 to 22, and the default is 12.
Note: This is just a display setting; it does not affect the number of characters saved.
