Cumulative Storage Value Table Automation

Objects and Methods : Level Power Reservoir : User Methods : Cumulative Storage Value Table Automation

This category allows the RiverWare simulation to automate the creation of the Cumulative Storage Value Table. This category is only visible if Cumulative Storage Value Table is selected in the Future Value category.

None

If this method is selected, no automation will be performed and the user must enter the data into the Cumulative Storage Value Table.

Marginal Value to Table

If this method is selected, the Marginal Storage Value table will be used as the source for the generation of the Cumulative Storage Value Table. This is the only calculation associated with this method. There are no slots associated specifically with this method.

This method uses information from the simulation slot Marginal Storage Value Table to generate a Cumulative Storage Value Table. The cumulative storage value can be thought of as the summation of the marginal storage values from a storage of 0 to the current storage. Therefore, the automation method finds the same midpoint values used by the simulation Future Value Calc method, and uses those points in the table.

If only one value exists in the Marginal Storage Value Table, then only two entries will exist in the Cumulative Storage Value Table. The two entries will be 0, and midway between the value in the Marginal Storage Value Table, and the maximum value set on the Storage slot. If more than one value exists, three or more points will result.

Table 18.1 is an example Marginal Value Table. Table 18.2 is an example of the resulting Cumulative Storage Value. Figure 18.1 is a graph of the Cumulative Storage Value data.

Table 18.1 Marginal Value Table
Storage	Marginal Value
20	30
60	26
100	24

Table 18.2 Cumulative Storage Value Table
Anticipated Storage	Cumulative Value
40	1200
80	2240
140	3680

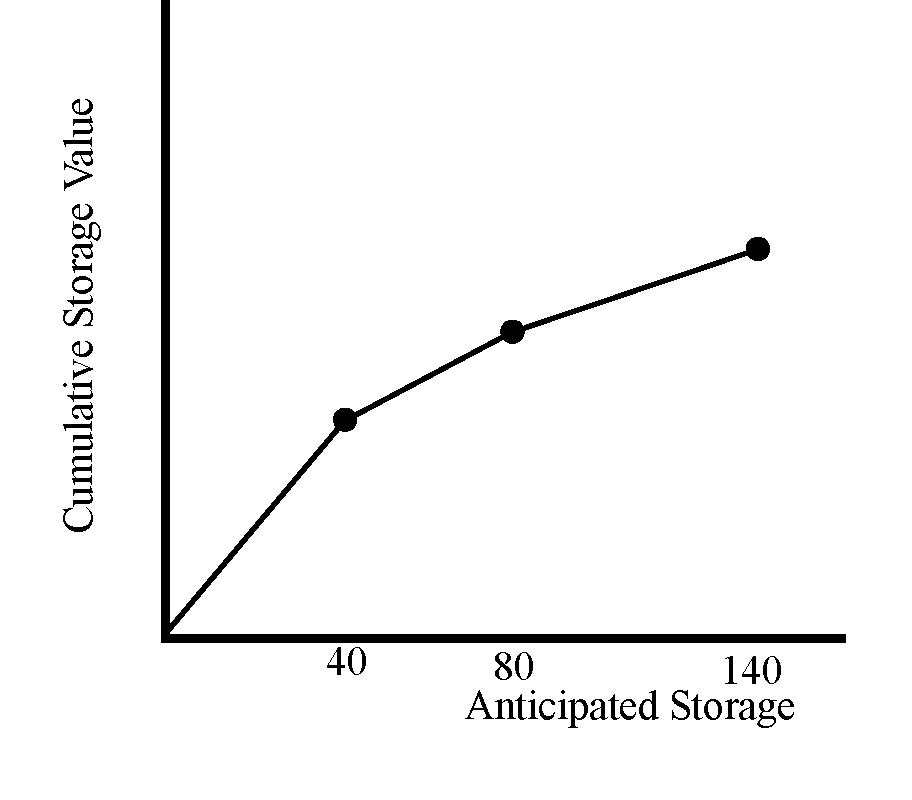

Figure 18.1 Cumulative Storage Value data
