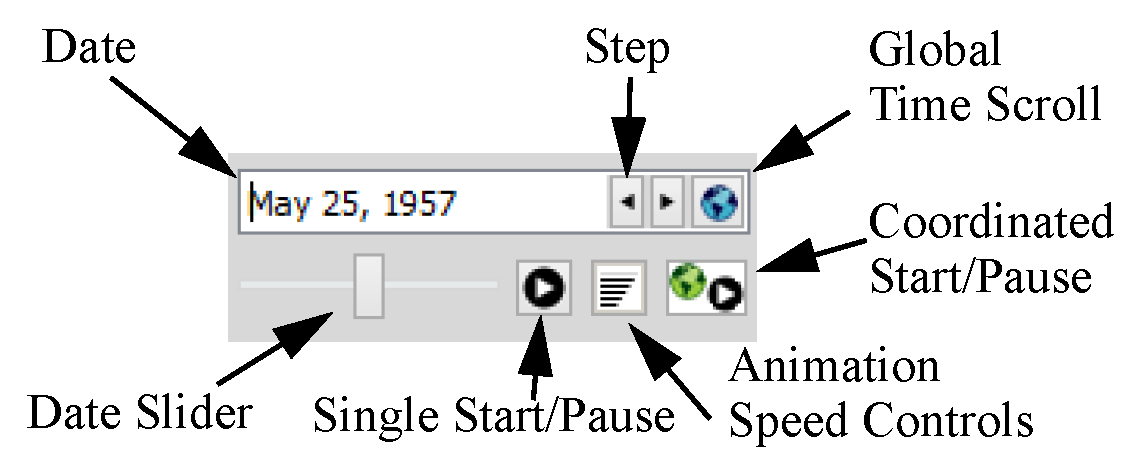

If the timestep controls have been added in the configuration, the controls appears under the chart as shown in
Figure 5.9. These controls allow the chart display to be stepped forward and backward through the timesteps. Select
Start to animate through time. Use the date slider to see where you are in time and the animation speed controls to change the speed (seconds per frame). Select
Coordinated Start/Pause to animate all opened charts and Output Canvas at the same time. When in coordinated animation mode, you can stop all animations from any dialog. But, from the dialog in which you started the global animation, you can select the single pause to pause all dialogs. Then use the slider to move the date for all dialogs globally. Select
Coordinated Start/Pause to end the coordinated animation.
