Debugging and Analysis : Diagnostics : Accounting Diagnostics
Accounting Diagnostics

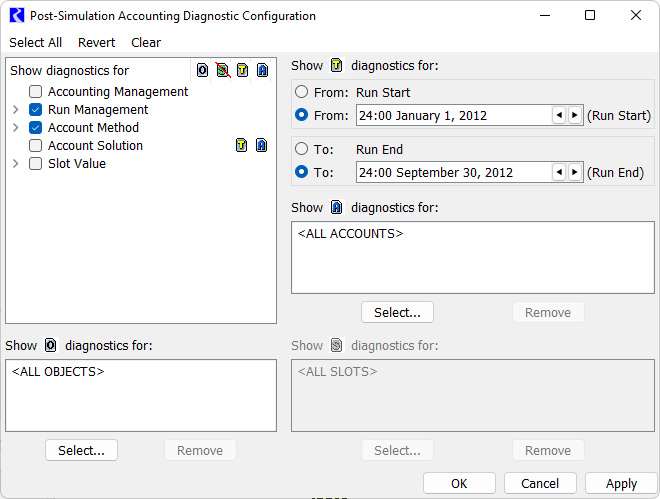

Figure 3.14 shows the Post-Simulation Accounting Diagnostics Configuration dialog.
Figure 3.14
Available filters include Objects, Accounts, Slots, and Timesteps. Diagnostics allow the user to see when each individual account is solving, what slots are known and unknown at that timestep, the accounting method being used, what the value is when an account's slot is set, and more.
Accounting Diagnostic Groups
Table 3.6 summarizes the types of messages that are displayed when a Diagnostic Group is selected.

Table 3.6
Super Group
Diagnostics Group
Type of diagnostics issued
Run Management:

Controller
Beginning/End of Run/Timestep for each time.
Examples:
Initializing model run.
Beginning of Run.
Begin Timestep.
Execute timestep.
End of run.

Object
Beginning/End of Run/Timestep for each Object and time.
Examples:
Clear state.
Propagating user input.
Beginning of run.
Begin timestep.
End timestep.
End of run.

Account
Beginning of Run for each Account and time.
Examples:
Clear state.
Propagating user input.
Account Method:

Controller
Describes when the controller is notified of a change to an account's slot.
Example:
The "Post-Simulation Accounting" controller received a slot changed notification for slot "BigLake^City.Inflow".

Object
Describes which user defined methods are being executed.
Example:
Executing Category "Storage Account Gain Loss" with selected method "BigLake_Gain Loss".

User Method Execution
Diagnostics for object level accounting methods.
Examples:
Executing user-defined accounting method #3 ("HappyLake_SlotInflows", within group "Storage Account Slot Inflow")
Assignment initiated (the left-hand side is "$ "HappyLake^Fish.Slot Inflow" []").
Evaluation of Assign statement successful; will attempt assignment: Fish.Slot Inflow[January 1, 2004] = 3.99 [1.00 * cfs].
Independent Groups:

Account
Management
N/A

Account Solution
Describes when the account is solving including the knowns and unknowns.
Example:
Inflow is known, Storage is allowed, Outflow is input; solving for Storage.
Slot Value:

Set Value
Describes when an accounting slot is set.
Example:
• Confluence^Fish.Inflow: Set value = 25.740254 * 1.0cfs

Interpolation
Table Slot table interpolation lookups for each account slot.


Revised: 07/03/2024
