Canvas Items Reference
This section provides details about the settings that apply to each type of Canvas item.
 General Settings
These are settings that apply to the entire canvas. This is always shown and cannot be deleted.

Setting
Type
Notes
Name
Single line text

Canvas Width
Value in pixels

Canvas Height
Value in pixels

Background Color
Color Chooser
See Color Chooser for details.
Timestep
Datetime Text
Usually the date shown is controlled by the date controls in the preview or on the canvas itself
Show on Simulation View
Yes/No
Show supported items on the appropriate workspace view. See Showing Canvas Items on the Workspace for details.
Show on Geospatial View
Yes/No
 Teacup Group
Teacup Groups are a container for Teacups so that all data is consistent across the teacups in the group. The Teacup Group defines the slots to use, where they are located, the size of the bars in the teacup, and the fonts for the label, axis, and text items. Teacup Groups can have bounding boxes, text items, and markers that are displayed for each teacup. In addition, a Teacup Group can have a Teacup legend to provide a key. See Teacup Legend and Instructions for Creating a Teacup Diagram for additional information.

Setting
Type
Notes
Name
Text

Show
Yes/No

Unit Type
Menu Selection
Values shown will use the Unit Scheme definition for the specified Unit Type. Select View, then Unit Scheme Manager to see the scheme.
Precision
Selection
Select the precision of numeric values shown. See Precision for details.
Maximum Entity Name
Text

Maximum Entity Color
Color Chooser
See Color Chooser for details.
Maximum Slot Reference Type
Object/Slot Name or Data Object/Slot Name
Choose whether the specified Maximum slot is on the object itself or an accompanying data object. See Slot Reference Type for details.
Maximum Slot Name
Slot Selection
The slot used for the larger bar on the teacup. See Slot Selections for details.
Current Entity Name
Text

Current Entity Color
Color Chooser
See Color Chooser for details.
Current Slot Reference Type
Object/Slot Name or Data Object/Slot Name
Choose whether the specified current slot is on the object itself or an accompanying data object. See Slot Reference Type for details.
Current Slot Name
Slot Selection
The slot used for the smaller (current) bar on the teacup. See Slot Selections for details.
Teacup Geometry
Selection
The shape of the teacups. Select either rectangular, trapezoidal congruent, or trapezoidal constant Top/Bottom. See Teacup Geometry for details.
Show Gap
Yes/No
Specify if there is a horizontal gap between the current and maximum value. See Show Gap for details.
Maximum Teacup Height
Number
Height of the largest teacup in the group.
Teacup Width
Number
Width of all the rectangular teacup bars in the group.
Teacup Bottom Width
Number
Width of the bottom of all the trapezoidal teacups.
Teacup Top Width
Number
Width of the top of all the trapezoidal teacups (Constant Top/Bottom)
Show Vertical Axis
Yes/No

Label Font
Font Selector
The font used for the teacup labels.
Axis Font
Font Selector
The font used for the teacup axis.
Text Font
Font Selector
The font used for all text items in the group.
 Teacup Legend
A Teacup Legend is part of a Teacup Group and provides a key to the teacups. The maximum value, the current value, markers, text and the units are shown in the legend.

Setting
Type
Notes
Label
Text
The text used for the label on the legend.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
 Teacup
A teacup is shown for the selected objects. You can modify the name and change the corresponding data object, if necessary. See Instructions for Creating a Teacup Diagram for details.

Setting
Type
Notes
Label
Text
The text used for the label on the teacup.
Reference Object
Object Selection
Use the selector to select the object for this teacup. Usually this is a Reservoir object.
Reference Data Object
Object Selection
Use the selector to select the data object related to the reference object. This is usually located automatically if available.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
 Object Icon Group
The Object Icon Group contains RiverWare icons representing the objects shown on the workspace. Object icons are shown in groups so that the text labels are consistent. Object Icon Groups can have bounding boxes and text items that are displayed for each Object icon.

Setting
Type
Notes
Name
Text
The name of the group as shown in the Output Canvas Content group
Show
Yes/No

Precision
Selection
Select the precision of numeric values shown. See Precision for details.
Label Font
Font Selector
The font used for all Object Icon Labels
Text Font
Font Selector
The font used for all text items added to the Object Icon Group
 Object Icon
The Object Icon item specifies the Object(s) to include in an Object Icon Group. You can also specify the labels to show for each icon.

Setting
Type
Notes
Label
Text
The label to use for the icon.
Reference Object
Object Selection
The object for which you would like to show the icon
Reference Data Object
Object Selection
Use the selector to select the data object related to the reference object. This is usually located automatically if available.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
Scale
Number
Specify the relative scale of the icon. The valid range is from 20-200%
 Marker
Markers, representing a slot value, are horizontal lines shown on each teacup. Markers are added to the Teacup Group. You specify the line color, style and the slots to use.

Setting
Type
Notes
Label
Text
The text used for the marker on the legend.
Line Color
Color Chooser
See Color Chooser for details.
Line Style
Menu

Slot Reference Type
Object/Slot Name or Data Object/Slot Name
Location of the slot to use for the marker. See Slot Reference Type for details.
Slot Name
Slot Selection
The slot used for marker. See Slot Selections for details on this selection.
 Text Group
A text group is a container for free standing text on the canvas. You can name the group and specify the font to use for all text items in the group.

Setting
Type
Notes
Name
Text
This text is used to identify the group
Show
Yes/No

Precision
Selection
Select the precision of numeric values shown. See Precision for details.
Font
Font Selector
The font used for all Text Items in the group.
 Text Item
There are two kinds of text items: 1. Free-standing text items are single-lines of text shown on the canvas. 2. Text items in teacup groups are single-lines of text shown below the teacup label of each teacup.
Text items represent static text, one slot value, or the relationship of two slot values or a timestep. You specify the type of text you want and the corresponding slots. Also specify the color and any prefix or suffix text.

Setting
Type
Notes
Text Type
Menu Choice
Select one of the types of text. See Text Types for details.
Text Color
Color Chooser
See Color Chooser for details.
Prefix Text
Text
String to include before the Text Item
Suffix Text
Text
String to include after the Text item
Slot 1 Reference Type
Object/Slot Name or Data Object/Slot Name
Location of the slot to use for the text item. See Slot Reference Type for details.
Slot 1 Name
Slot Selections
See Slot Selections for details.
Slot 2 Reference Type
Object/Slot Name or Data Object/Slot Name
Location of the slot to use for the marker. See Slot Reference Type for details.
Slot 2 Name
Slot Selections
For Text items that show or use two values, this is the second slot. It is only shown for Text items with two slots.
Legend Text
Text
The text that is displayed on the legend.
 Bounding Box
For better appearance, you may wish to add Bounding Boxes to Teacup Groups or Object Icon Groups so that a box is drawn around each teacup or icon. You can specify the color of the background and its opacity and the border color.

Setting
Type
Notes
Show
Yes/No

Opacity
Number
This value must be between 0 and 100, inclusive.
Background Color
Color Chooser
See Color Chooser for details.
Show Border
Yes/No

Border Color
Color Chooser
See Color Chooser for details.
 Flow Line Group
Flow Lines are shown in groups so that all data is consistent across the group. The Flow Line Group defines the unit type, minimum, and maximum values and their respective thicknesses along with the interval configuration. See Instructions for Creating a Flow Line Diagram for details.

Setting
Type
Notes
Name
Text

Show
Yes/No

Unit Type
Menu
The Unit Type to use for all flow lines in the group.
Minimum Value
Number and units
The value representing the minimum. Any values less than this will be shown with the minimum thickness.
Minimum Thickness
Number of pixels
The thickness corresponding to the minimum value. See Flow Line Thickness for details on thickness.
Maximum Value
Number and units
The value representing the maximum. Any values greater than this will be shown with this thickness.
Maximum Thickness
Number of pixels
The thickness corresponding to the maximum value. See Flow Line Thickness for details on thickness.
Interval Definitions
Number of intervals
Select the button to open a dialog where the intervals are defined. See Flow Line Color and Style for details. When finished, the number of intervals is shown.
Threshold Specification
Menu
Select how thresholds will be specified. The choices are For Each Flow Line (default) or Group Level By Slot Name. See Specifying Thresholds for details.
Threshold N Slot Name
Slot Name Selection
When Group Level By Slot Name is selected in the Threshold Specification item, the thresholds must be contained in a slot on each object that contains a flow line and have a consistent name. The slot name is selected in this setting, at the group level. There will be one less thresholds than the number of intervals. See Specifying Thresholds for details. Series, Scalar, and Periodic slots are supported.
 Flow Line
The Flow Line item is part of a Flow Line Group. The Flow Line defines the specific slot to use along with the thresholds to use on that flow line. See Instructions for Creating a Flow Line Diagram for details.

Setting
Type
Notes
Label
Text
The flow line label.
Reference Slot
Slot Selection
The Slot that provides the values for the Flow Line.
Threshold N Specification
Menu
When the For Each Flow Line setting is selected on the group’s Threshold Specification, the thresholds are specified on each flow line. This setting controls how the threshold is specified, either By Constant or By Slot. See Specifying Thresholds for details.
Threshold N Constant
Number and units
When the By Constant threshold specification is used, specify the value for this threshold.
Threshold N Slot
Slot Selection
When the By Slot threshold specification is used, specify the slot to use for this threshold, Series, Scalar, and Periodic slots are supported.
 Flow Line Legend
A Flow Line Legend can be added to a Flow Line Group to provide a key that describes the intervals defined in a flow line group and show sample lines that represent the thickness at various values.

Setting
Type
Notes
Flow Line Legend Label
Text
The label to show at the top of the legend.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
Flow Line Legend Values
Number of Sample Values
Select the setting and then click the button to open a dialog in which you define the sample values. See below for details. When finished, the number of sample values is shown.

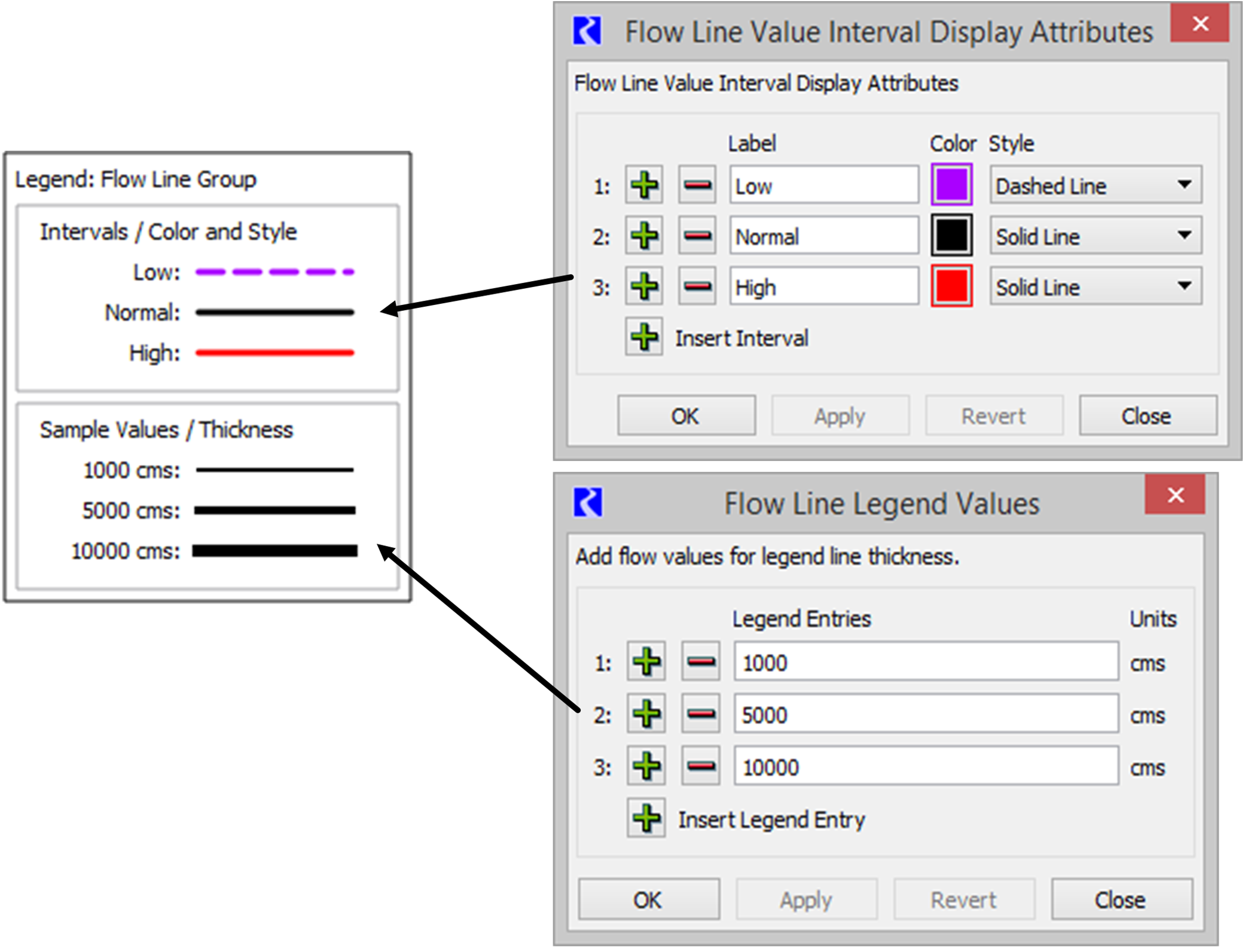

As shown in Figure 6.4, the top part of the legend provides a key to the intervals defined on the Flow Line Group. The intervals are defined and labeled on the Flow Line Group through the Interval Definitions setting. See Flow Line Color and Style for details.
The bottom panel in the legend provides a key to the line thickness and the values they represent. You define which values you would like to show. In the Flow Line Legend Value setting, click the button to open the dialog. Use the plus and minus buttons to add/delete entries. For each sample defined, a solid black line will appear in the legend with the appropriate thickness with respect to the Flow Line Group's minimum and maximum flow values and their defined thickness.
Figure 6.4  Screenshot showing a Flow Line Legend and the configuration dialogs
 Canvas Line Group
The Canvas Line Group is a container for Canvas Lines. Canvas Lines in the group have the same thickness, color, symbol type and size.

Setting
Type
Notes
Name
Text

Show
Yes/No

Line Thickness
Number of Pixels
The thickness of the lines
Line Color
Color Chooser
See Color Chooser for details.
Symbol Type
Menu
Select either None, Arrow, Dot, or Triangle. The symbol is only shown on one end of the line.
Symbol Size
Number
Specify the size of the symbol.
Symbol Color
Color Chooser
See Color Chooser for details.
 Canvas Line
Canvas Lines are used to create pointers or other line indicators on the canvas. Canvas lines are polylines with as many verticies as needed.

Setting
Type
Notes
Label
Text
The canvas line label.
 Image Group
Image Groups are containers for Images.

Setting
Type
Notes
Name
Text

Show
Yes/No

You can add any jpg or png image to an image group. The image is then embedded in the output device. Also specify if it is on the foreground layer or background layer.

Setting
Type
Notes
Name
Text
By default, this is the original image file name.
Layer
Foreground/Background
Select the layer on which the image lives. Background images can be separately locked into position on the Canvas Preview.
Image Opacity
Number
This value must be between 0 and 100, inclusive.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
Scale
Number
Specify the relative scale of the image. Either enter the number as a setting (20-400%) or drag the re-scale icon on the canvas to resize.
 Chart Group
A chart group is a container for Chart items.

Setting
Type
Notes
Name
Text

Show
Yes/No

 Chart
Chart items contain a reference to an existing Chart output device within the model. The chart is drawn with the canvas' reference timestep date/time. The canvas is drawn either with its native background color or with a background and frame specified by an optional “Bounding Box” added to the containing Chart Group. This is similar to the bounding box support for Teacups and Teacup Groups.

Setting
Type
Notes
Chart Name
Selection
Select the name of the previously configured chart device.
Width
Number
The width of the chart in pixels. See Chart Configuration for details on chart sizing.
Height
Number
The height of the chart in pixels. See Chart Configuration for details on chart sizing.
Scale
Percent
Scaling factor; must be less than or equal to 100%. See Chart Configuration for details on chart sizing.
X Position
Number
See Position for details.
Y Position
Number
See Position for details.
Revised: 07/03/2024
