Slots
The following changes have been made to RiverWare slots.
Empty Slot Viewer
The slot viewers can now be empty if you remove all slots. This is useful for window layouts as you can include an empty slot viewer as part of a layout. For more information on window layouts, see Window Layouts.
Export Table Slots as CSV
Table slots (including periodic and statistical tables) can be exported as a comma separated values (CSV) file by selecting the File menu in the slot dialog and then Export as CSV, and from the new Export Table Slots as CSV script action. The menu item and script action export table slots in display precision, with row and column labels with date/time values formatted as “10-20-1988 24:00:00”.
For more information, see Export as CSV in User Interface.
Scalar Slots with Expression Evaluation
See important changes to Scalar Slots with Expression Evaluation.
Series Slot Scrolling
Scrolling of all non-SCT series slot dialogs can now be synchronized. This option is enabled by default and can be controlled using the Synchronize Scrolling checkbox in the relevant dialogs. In Figure 4.13, as you scroll either dialog through time, the other dialog’s time range also scrolls. The synchronize control is also shown in Figure 4.13.

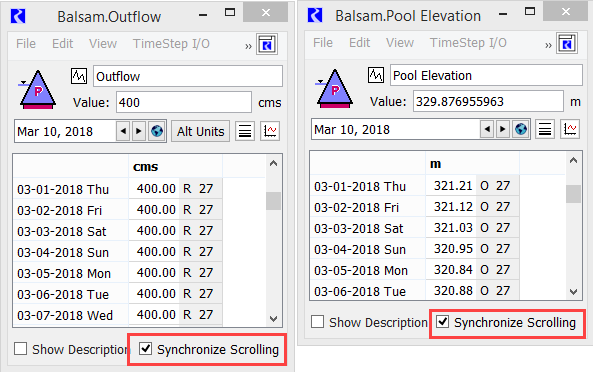

Figure 4.13  Screenshot of new Synchronize Scrolling checkbox.
For more information see Synchronize Scrolling in User Interface.
Revised: 07/03/2024
