Output and Analysis Tools
The following changes were made to output and analysis tools.
Data Analysis Tool
The Data Analysis Tool (DAT), previously called the Ensemble Data Tool, allows you to analyze results from a multiple run or to perform series slot regression. For more information, see Data Analysis Tool (DAT) in Output Utilities and Data Visualization
The DAT was enhanced as follows:
• Functionality was added to allow you to analyze series slot data using multiple linear regression. The data is used directly from the slots and not from an RDF file imported to an ensemble Data Set. See Slot Analysis in Output Utilities and Data Visualization.
• The Analyze button is now a menu where you can select either
– Analyze Selected Data Set - As previously, analyze trace data imported from an RDF file. Ensemble Data Set Analysis in Output Utilities and Data Visualization.
– Analyze Slots from Model - Select series slots in the model to analyze using multiple linear regression. See Slot Analysis in Output Utilities and Data Visualization.
• Ensemble Data Sets were generalized to be called Data Sets with a “type” that is either Ensemble or Analysis.

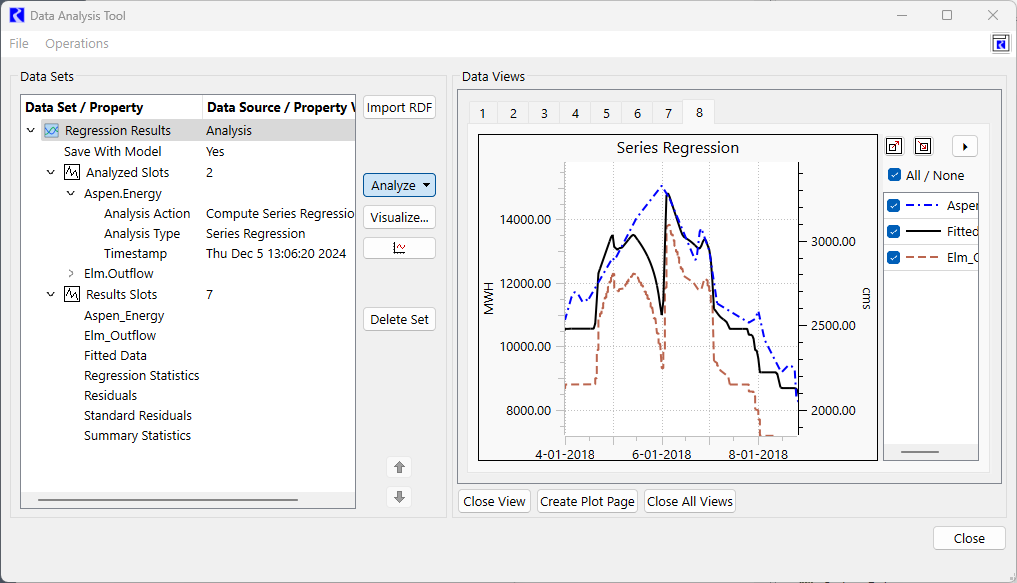

Figure 1.11 Data Analysis Tool with the new Compute Series Regression visualization
