Clear slot values
Use these procedures to clear editable slot values. The cell values are set to NaN and the cell value flag is set to Output (O). Generally, editable slot values are ones that would be computed during a model run, including values with the following flags:
• O—Output
• B—Best Efficiency
• D—Drift
• M—Max Capacity
• U—Unit Values
Clear selected values
Use this procedure to clear selected values only.
1. Select one or more cells with editable values.
Note: In aggregated view, if you select a summary cell, the update will be applied to all timesteps in the aggregation interval
2. Do one of the following to clear the selected values.
– Press Delete.
– Select Edit, then Clear Outputs, then within Selection.
– Right-click and select Clear Outputs in the shortcut menu.
The cell values are set to NaN and the cell value flags are set to Output (O).
Related topics
Clear all values
Use this procedure to clear all editable values in the SCT.

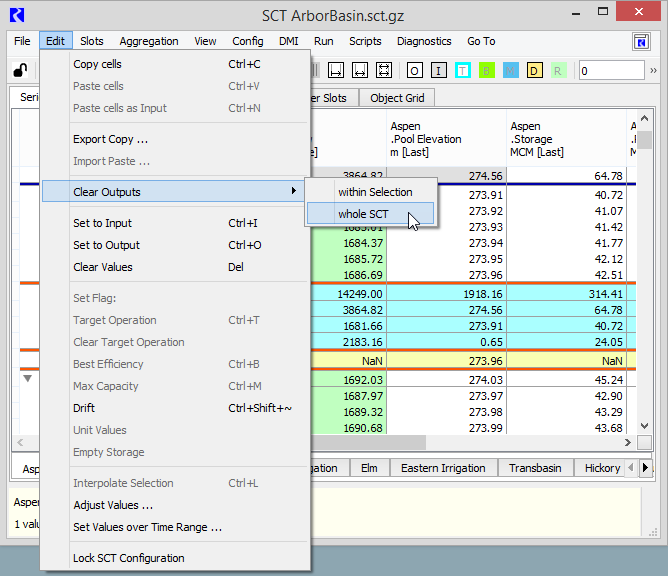

1. On the SCT menu, select Edit, then Clear Outputs, then Whole SCT.

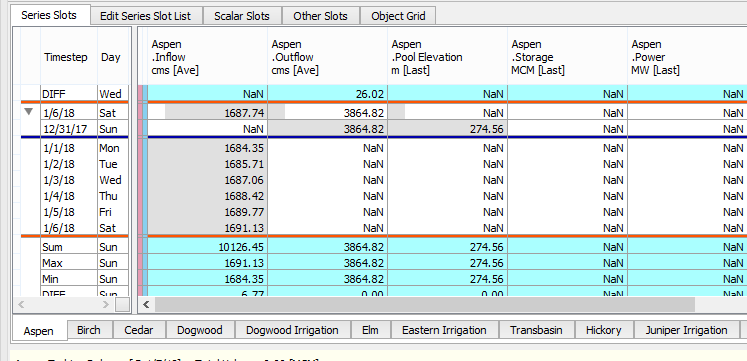

All editable values are cleared. The cell values are set to NaN and the cell value flags are set to Output (O).
Related topics
Revised: 12/06/2024
