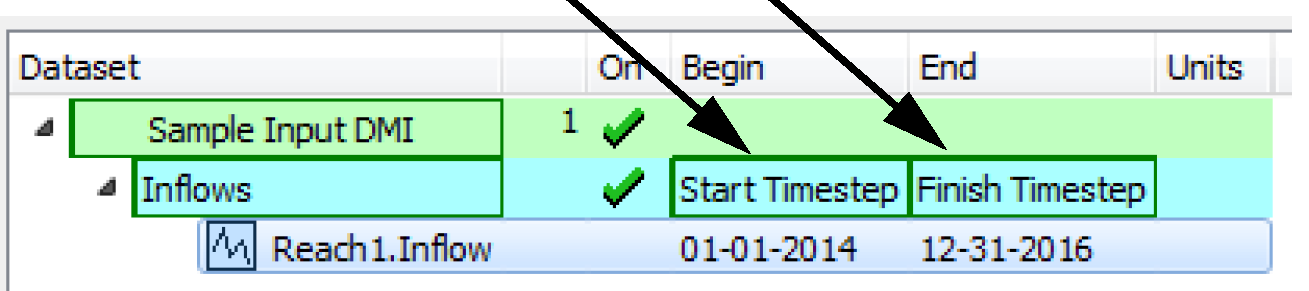

This section describes the user interface used to execute and create DMIs. This section applies to all of the DMI approaches. See Database DMI for details on the user interface for the Database DMI.

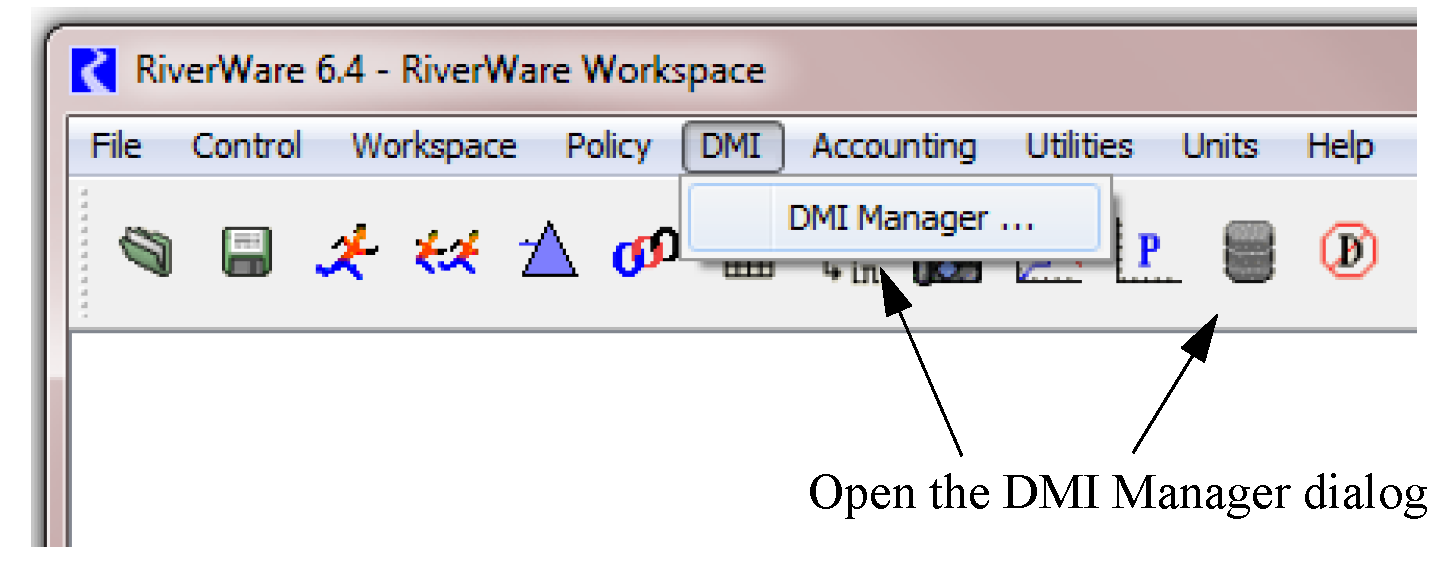

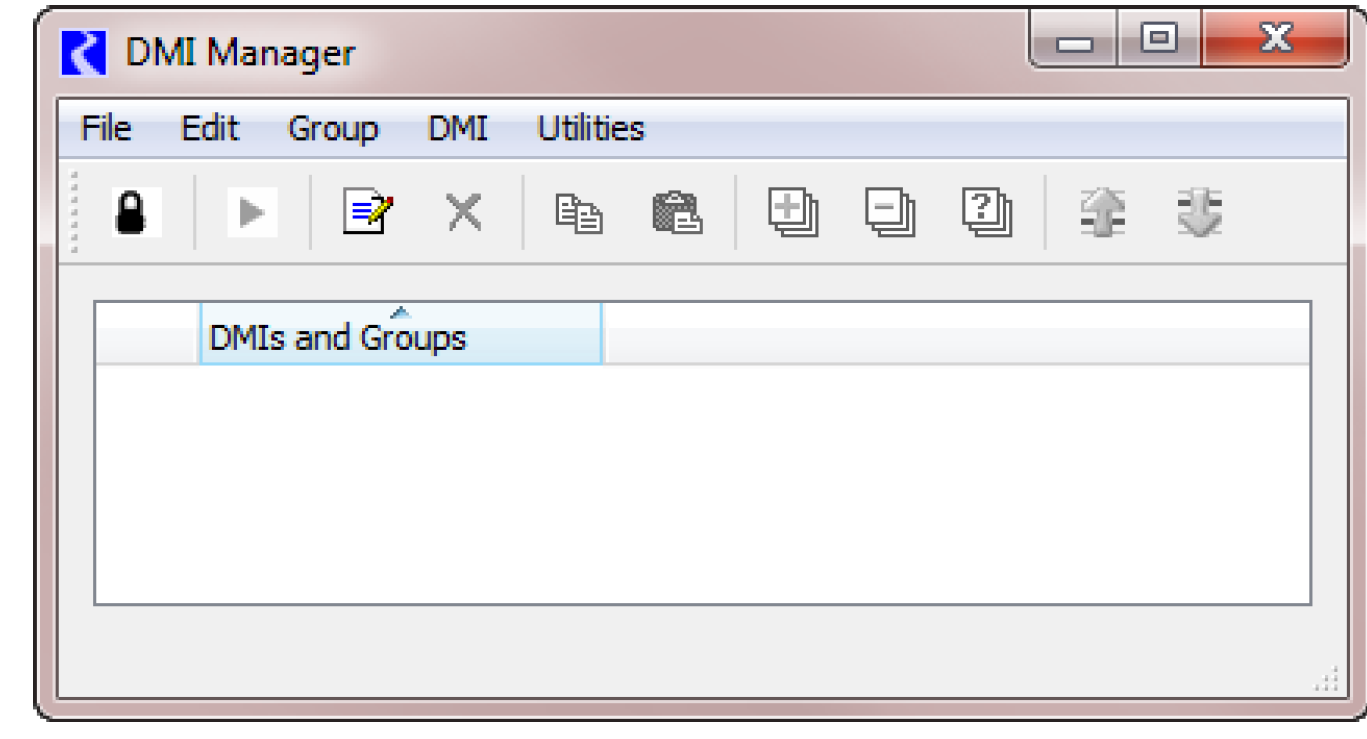

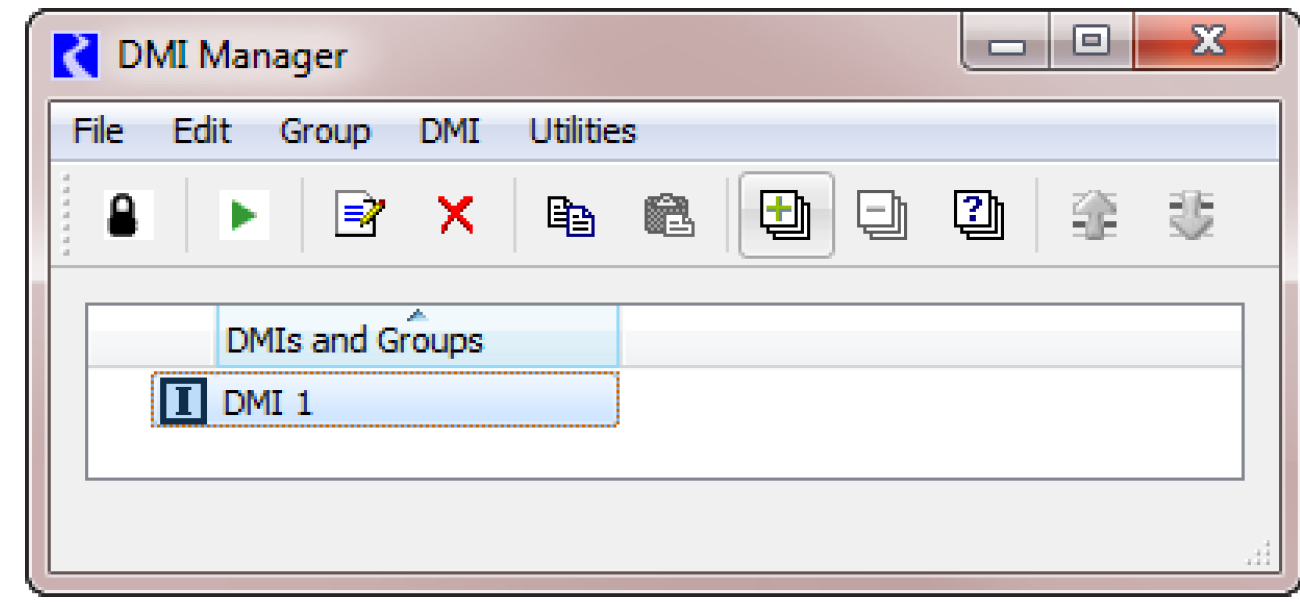

The Workspace provides a DMI menu and a DMI toolbar button. Selecting either the DMI menu, then DMI Manager or the toolbar button opens the DMI Manager. Once one or more DMIs are defined, the DMI menu also contains these DMIs, which can be invoked directly from the workspace. See Invoking DMIs and DMI Groups for details.

The DMI Manager enables is used for the following:

In the DMI Manager and related windows, actions can be performed using one or more of the following, each of which acts on the current selection:

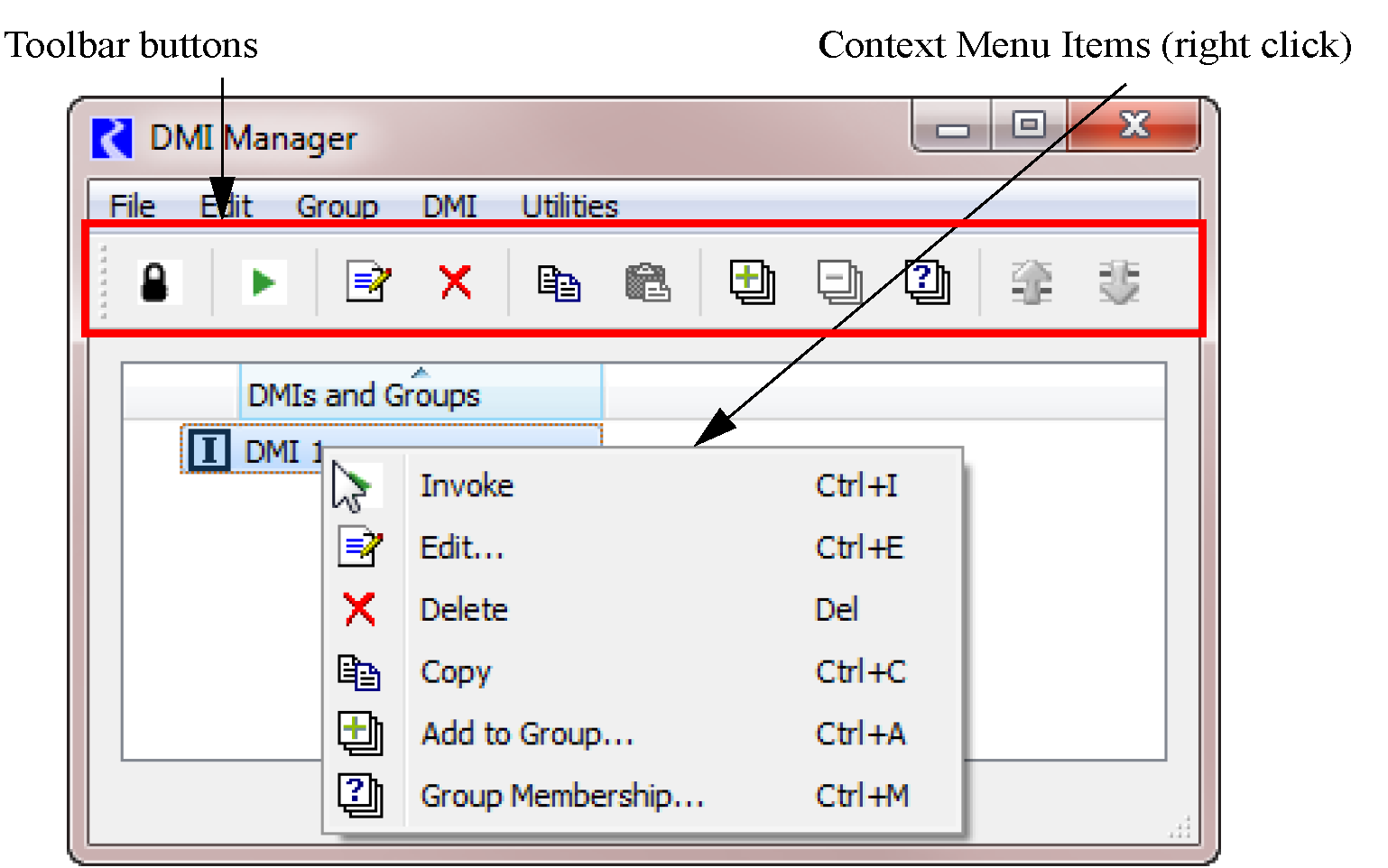

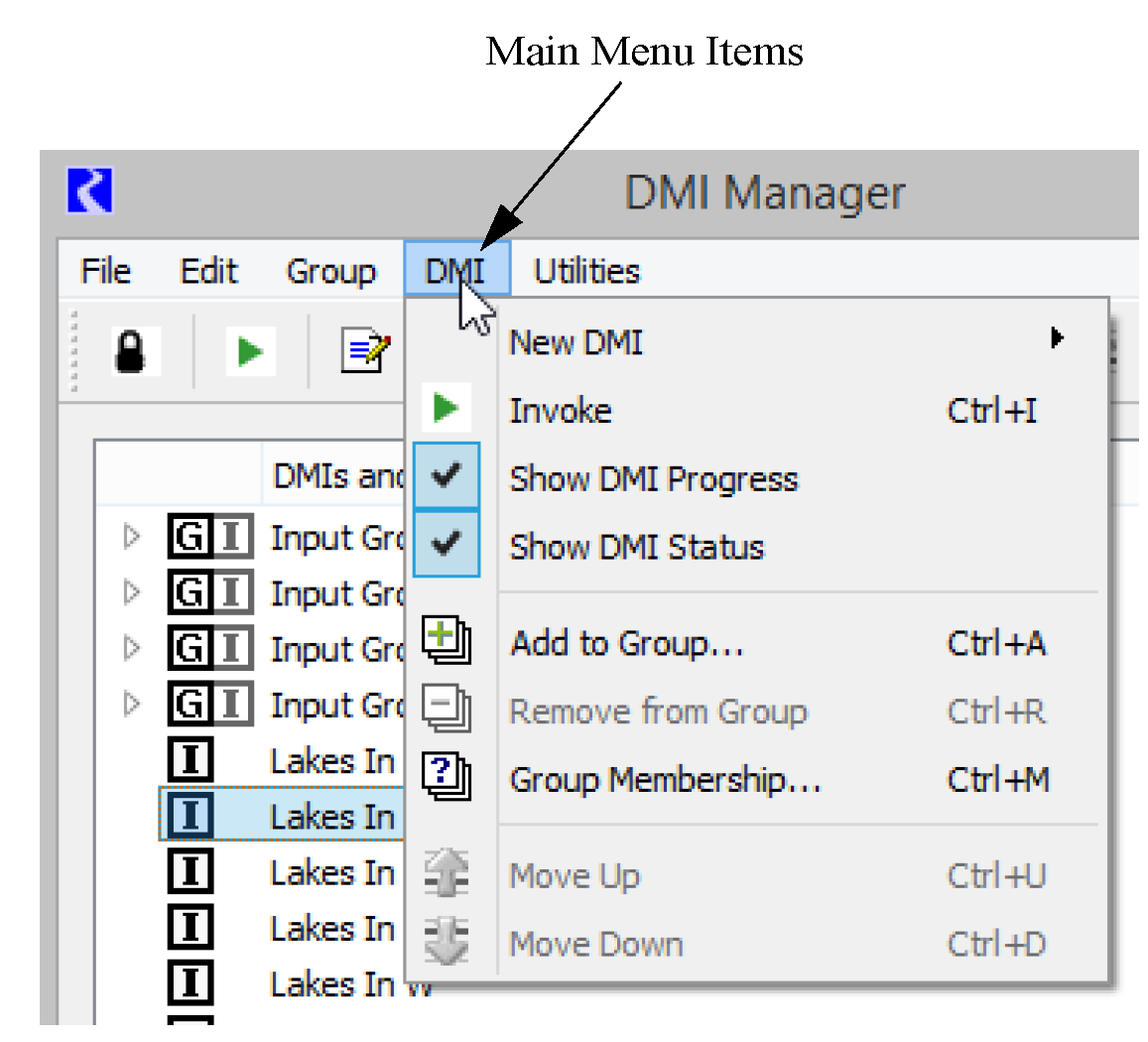

Main menu items, toolbar buttons and context menu items performing the same action share the same icon. For example, Figure 1.1 and Figure 1.2 illustrate that from the DMI Manager a user can invoke the selected DMI identically using the DMI, then Invoke main menu item, the Invoke toolbar button, the DMI Invoke context menu item and the Control-I keyboard accelerator.

Actions which aren’t valid for the current selection are disabled. (That is, their main menu items, toolbar buttons and context menu items are disabled.)

The document refers to main menu items when describing actions; be aware that in most cases toolbar buttons, context menu items and keyboard accelerators are also available for the actions.

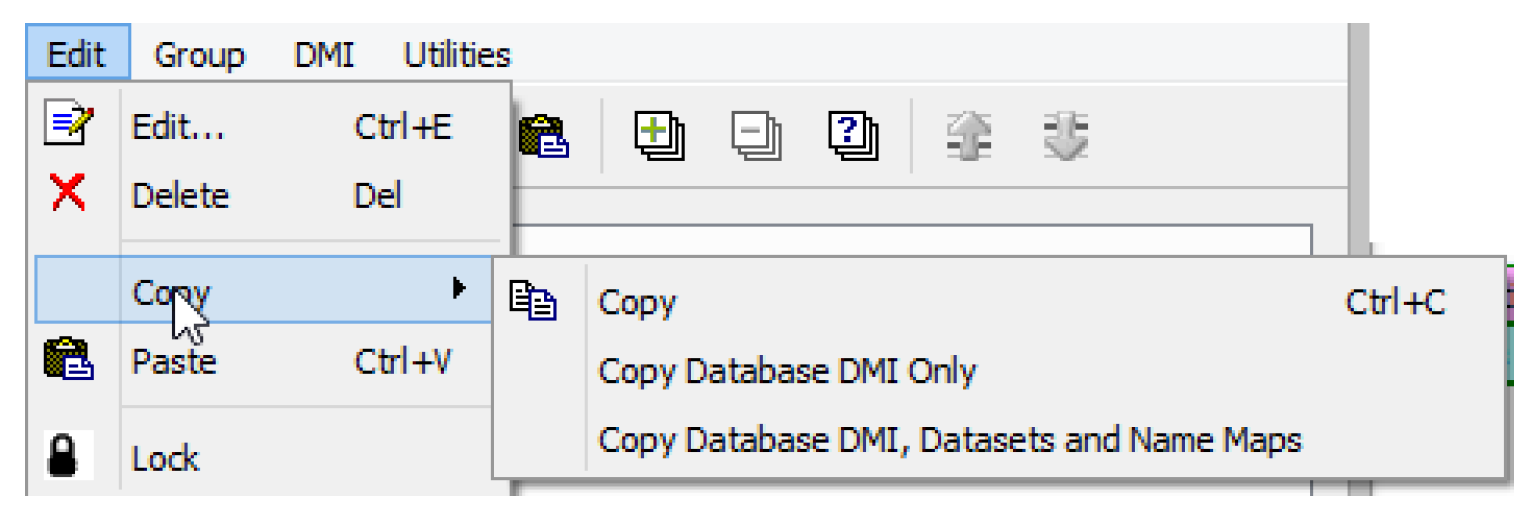

The Edit menu and right-click context menu have a Copy operation. This leads to the following options:

A Paste operation will add the most recently copied items with the name “Copy of DMI Name 1”.

Create a new DMI under the DMI, then New DMI main menu item and choose the type of DMI to create; the DMI has a default name.

indicates an input DMI; similarly indicates an output DMI.

Delete a DMI with the Edit, then Delete main menu item.

Open the DMI Editor with the Edit, then Edit main menu item or double-click the row. The DMI Editor is different for the different types of DMIs. See DMI Editor Dialog for details on the DMI Editor for the Control File-Executable approach. See Trace Directory DMI Editor Dialog for details on the Trace Directory DMI. See Creating a Database DMI for details on the DMI Editor for the Database DMI.

Sorting of DMIs and DMI groups is limited to sorting by name or type by selecting column header.

A DMI group is an ordered collection of one or more DMIs. When a DMI group is invoked, its DMIs are invoked in order, until all have completed or one has failed. There are two kinds of groups:

Additionally, an icon indicates whether the group contains all Input DMIs , all Output DMIs or a mix of Input and Output DMIs

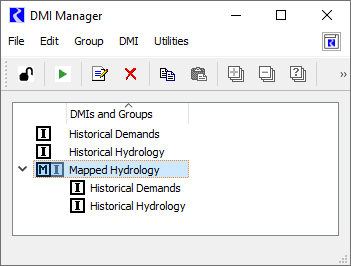

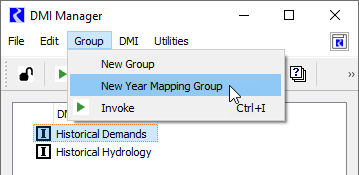

Create a new DMI group with the Group, then New Group or New Year Mapping Group main menu item.

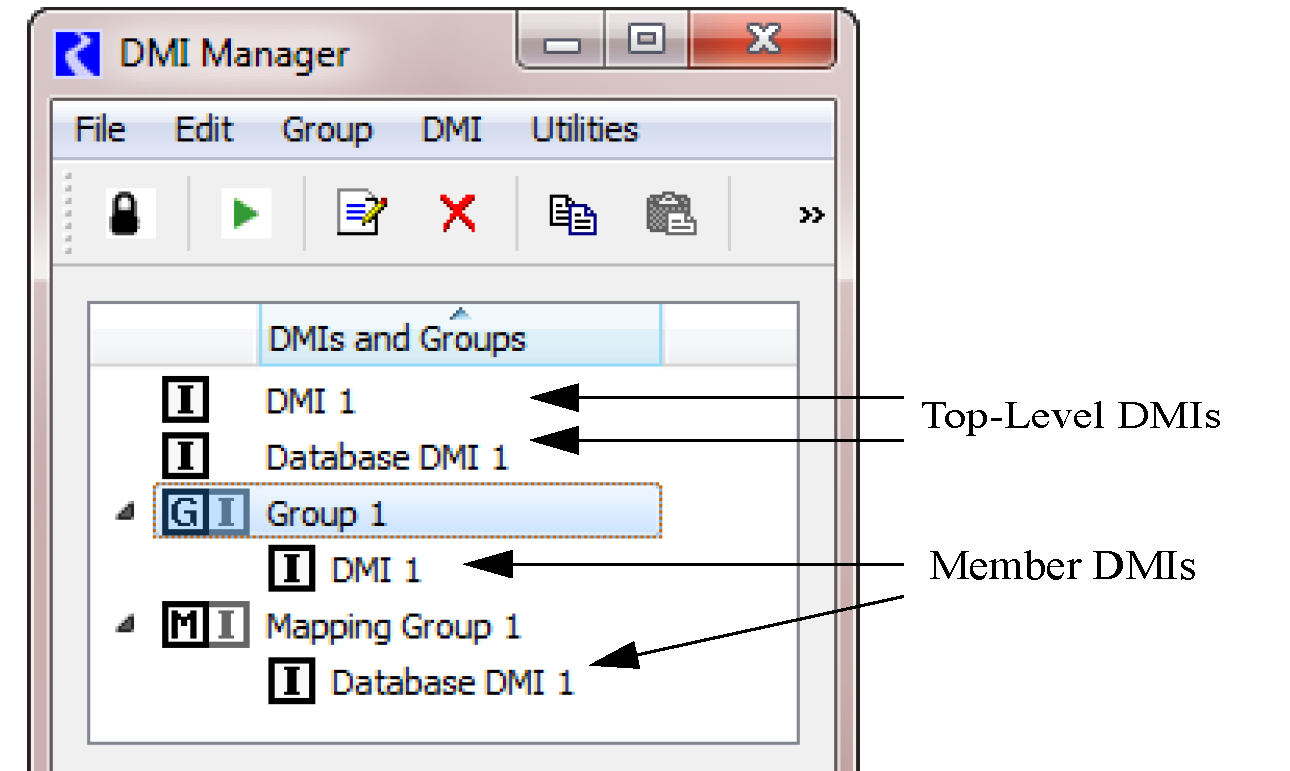

DMIs can appear one or more times in the DMI Manager; once as a top-level DMI and zero or more times as a member of a group. Actions which pertain to a DMI globally (for example, editing it) are only valid when a top-level DMI is selected; actions which pertain to a DMI within a group (for example, moving it up or down) are only valid when a member DMI is selected. See Figure 1.3.

When the distinction is important, a DMI is referred to as either a top-level DMI or a member DMI.

Editing DMI groups includes:

To edit a DMI group’s name double-select the name cell, to edit the name in place.

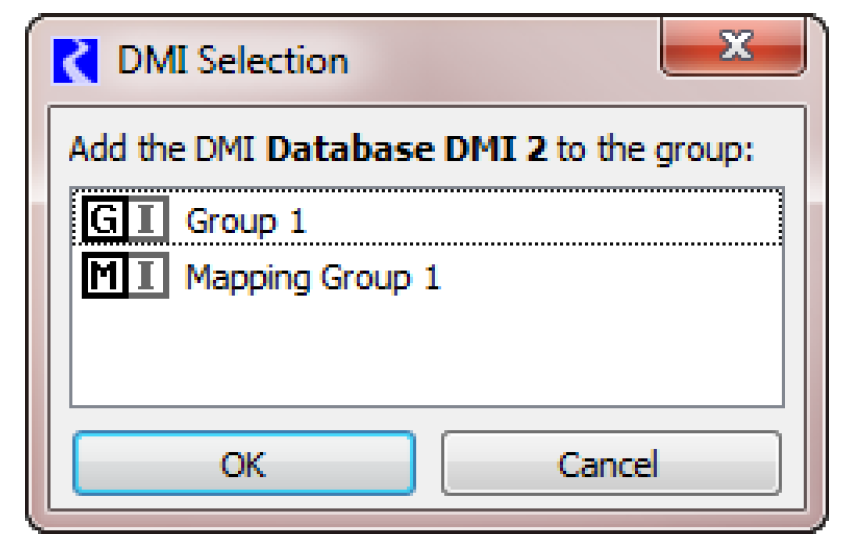

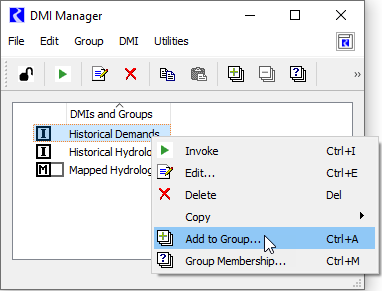

To add a top-level DMI to a group, select the DMI, then Add to Group main menu item. You are then presented with a dialog listing the available groups; select the desired group and select OK.

If no groups are available (e.g. there are no groups or the DMI is a member of all groups) you will be notified.

To remove a member DMI from a group, select the DMI, then Remove from Group main menu item.

To move a member DMI within a group, select either the DMI, then Move Up main menu item or the DMI, then Move Down main menu item.

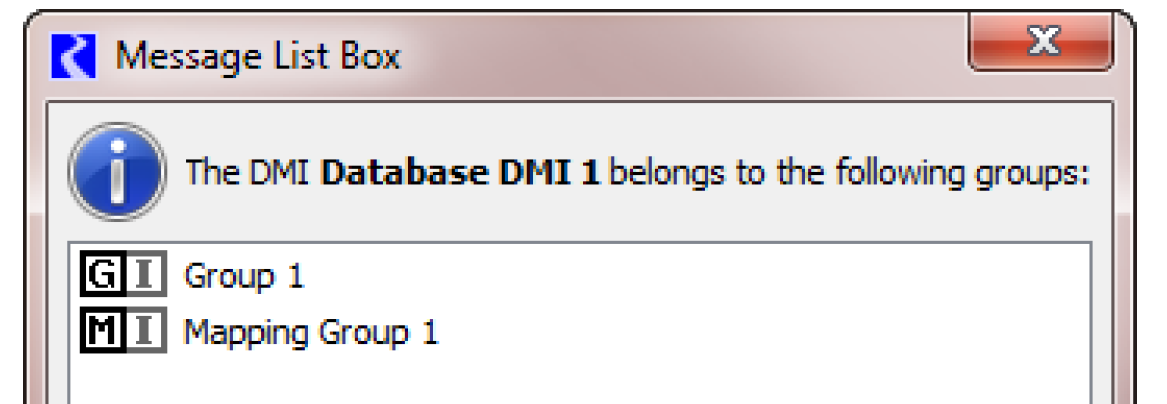

To query a group membership for a DMI, select the DMI, then Group Membership main menu item; the group membership is displayed.

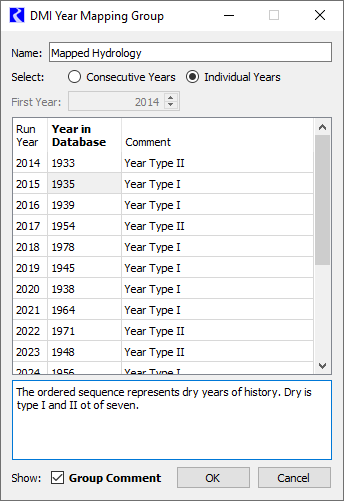

A Year Mapping Group allows you to import data from the specified years in your database to years in your run. For example, for a 5-year run with run dates from 1/1/2000 to 12/31/2005 you might want to use data from 1992, 1936, 1952, 1962, 1932. This tool allows you to create the map between the data in the database and the years of your run. It has a specific algorithm for dealing with leap days; see Year Mapping Algorithm for details.

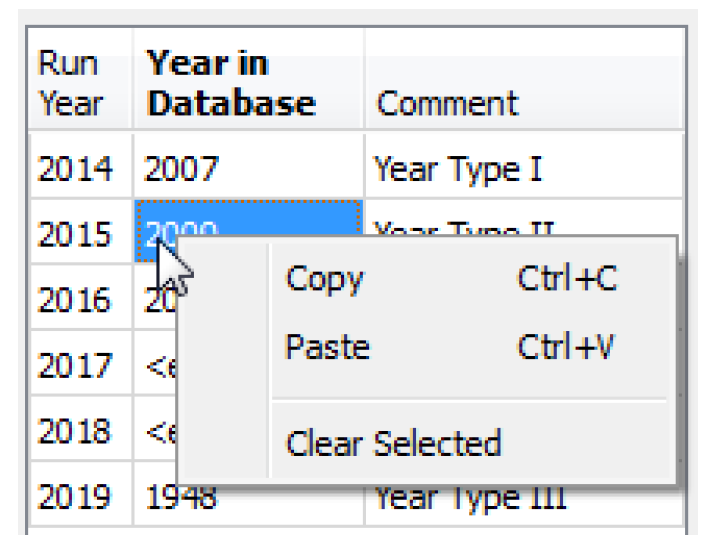

You can copy and paste the information from and to external applications using the right-click context menus shown.

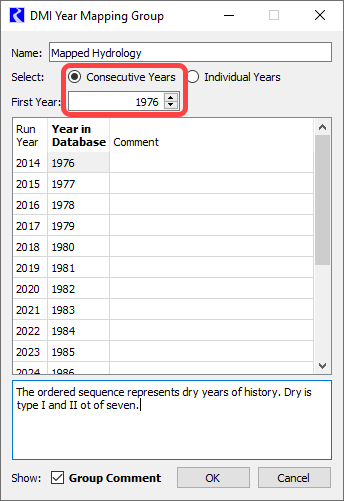

You can optionally select the Consecutive Years option. Then enter the First Year, and all run years will be filled in automatically with consecutive years.

Table 1.1 describes how the mapping deals with Leap Years.

One exception to the cases in Table 1.1 is when the run Start Timestep is February 29 of a leap year, and the year in the database is a non leap year. In that case, the values from March 1 are used for February 29 and March 1 because February 28 is not in the run range.

Following are some possible error conditions:

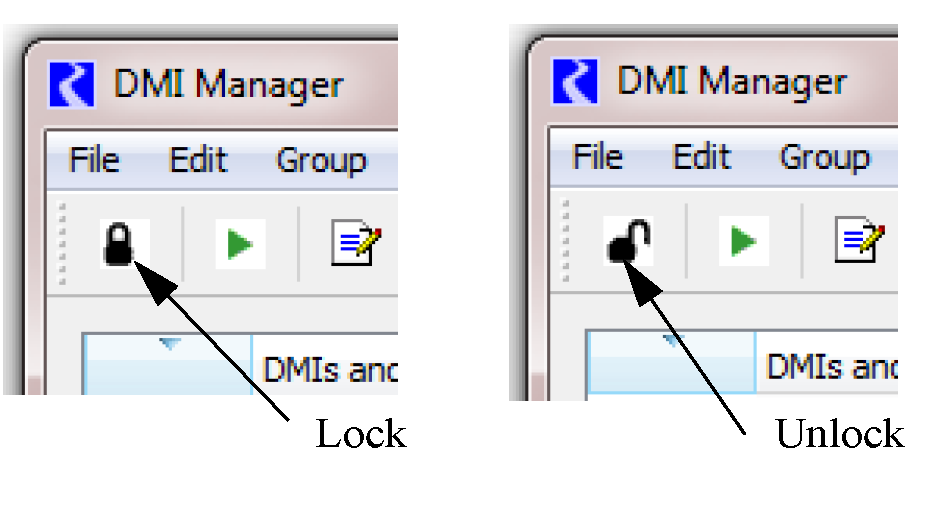

To lock the DMI Manager, select Edit, then Lock main menu item. Before locking, you must close the DMI Parameter and DMI Editors (and will be warned if they are open).

When locked, you cannot edit the DMI or DMI group configuration.

To unlock the DMI Manager, select the Edit, then Unlock main menu item.

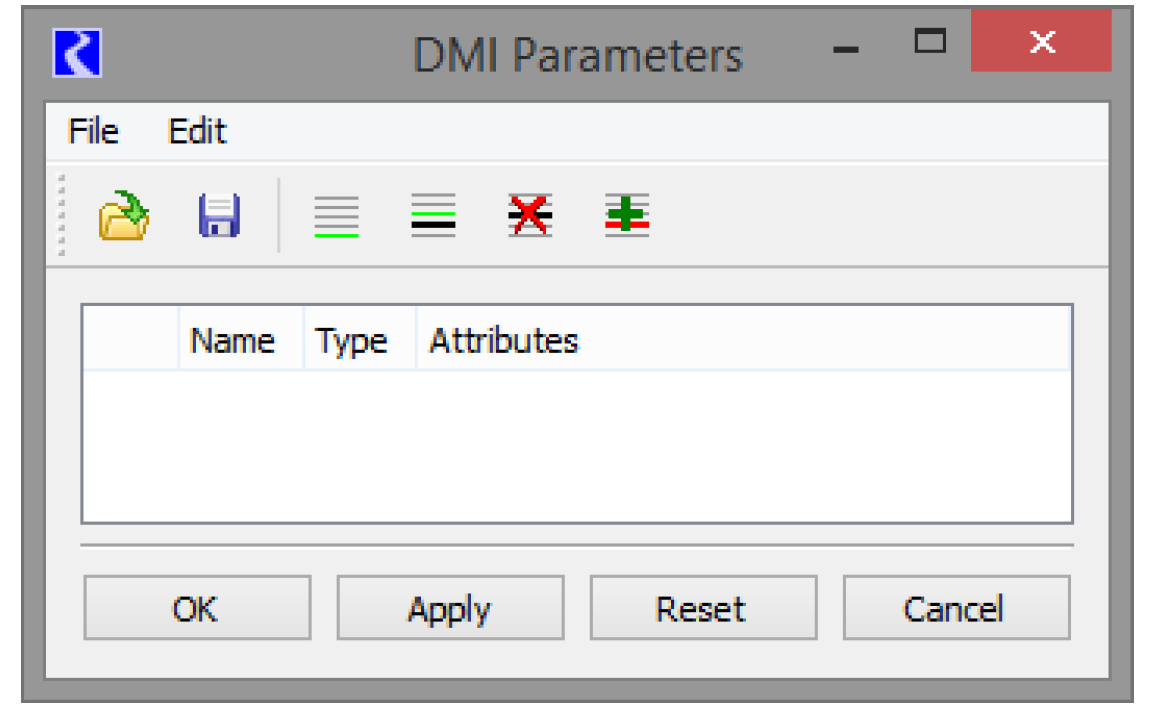

The DMI Parameters is used for the following:

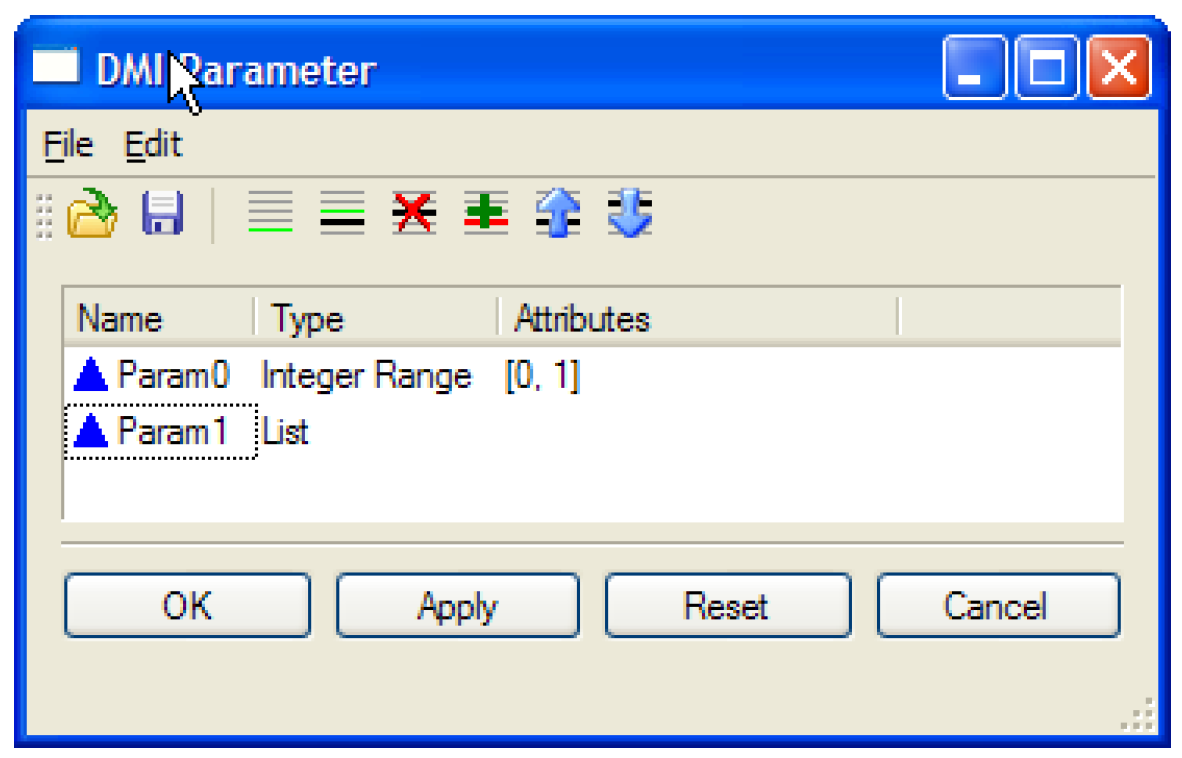

To create a parameter, either:

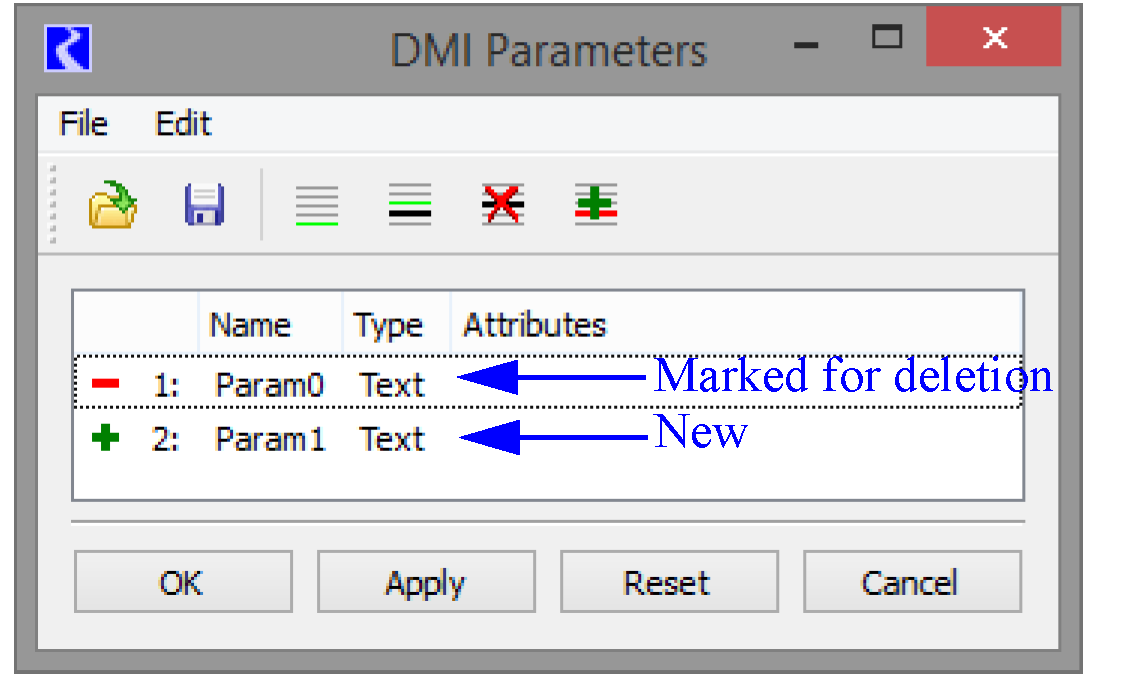

The parameter has a default name, and marks it as a new parameter. When the edits are applied the mark is removed from the parameter.

To delete a parameter, select the Edit, then Delete Row main menu item. If the parameter is new (marked with ) it’s removed from the list; otherwise marks it for deletion. When the edits are applied parameters marked with are removed from the list. See Figure 1.4.

To restore a row, select the Edit, then Undelete Row main menu item; the mark is removed from the parameter.

When you edit a parameter as described in the following sections marks the parameter as modified. When the edits are applied the mark is removed from the parameter.

To edit a parameter name, click twice in the Name cell, to edit the name in place. When the edits are applied the new parameter name is validated; the possible errors are:

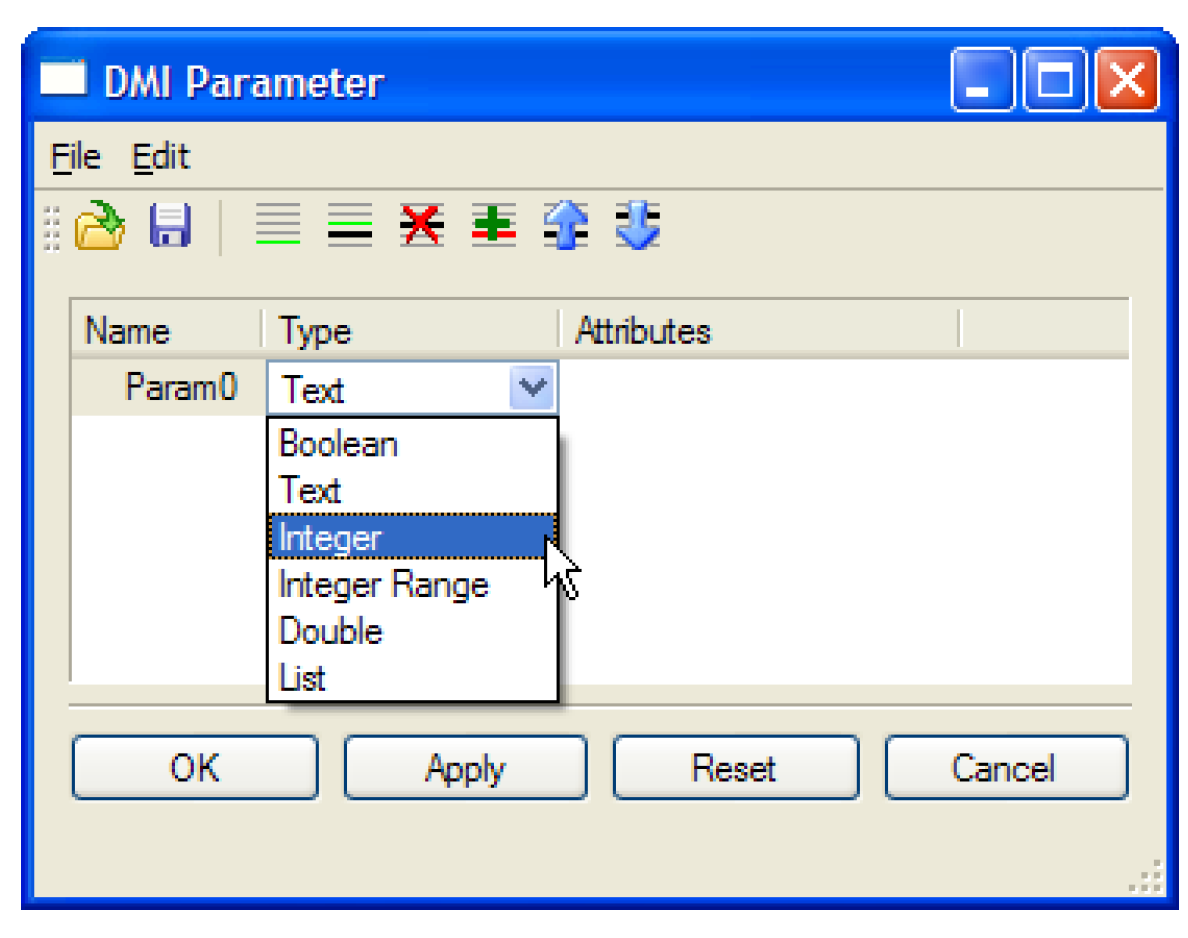

To edit a parameter type, Click-Pause-Clicks in the Type cell, to activate the Type menu and then selects the parameter type.

If the selected type has attributes the default attributes are displayed in the Attributes column.

To edit a parameter’s attributes, double-click the Attributes cell to activate the button, and then selects the button to open an attribute-specific window.

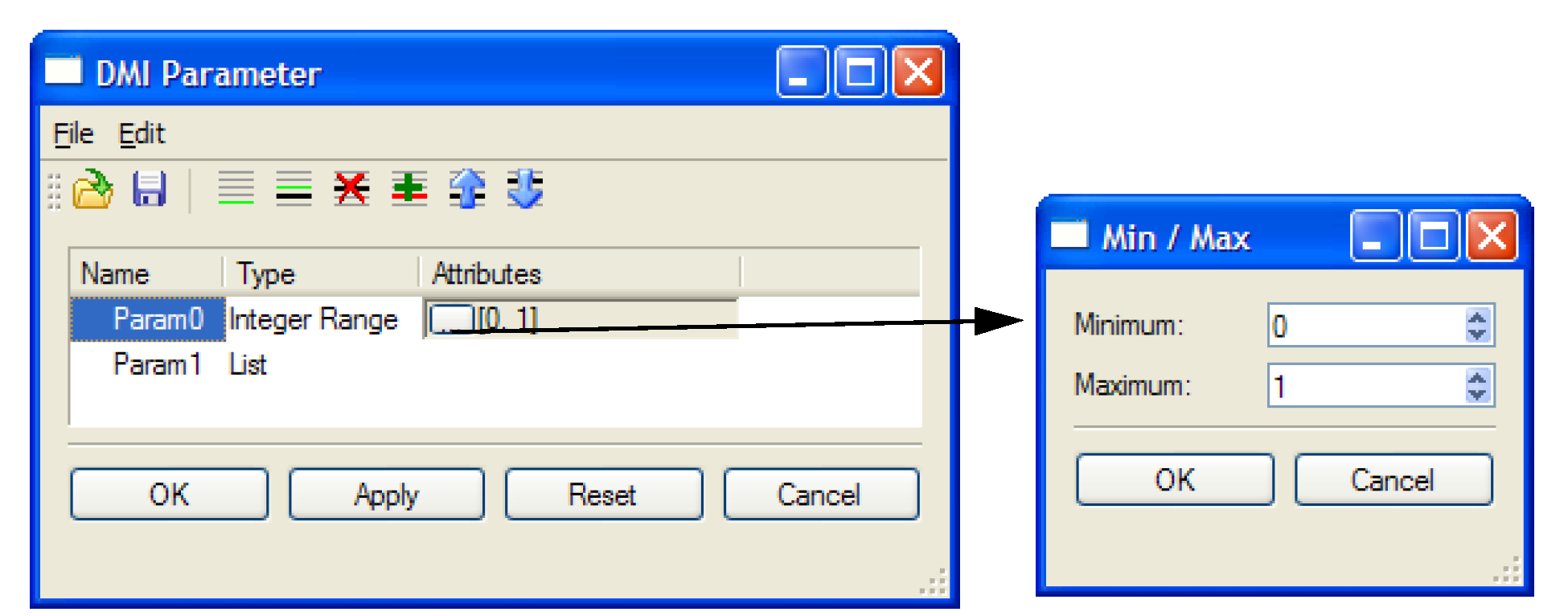

For an Integer Range the attribute-specific window enables you to enter the minimum and maximum values, ensuring the maximum value is greater-than the minimum value:

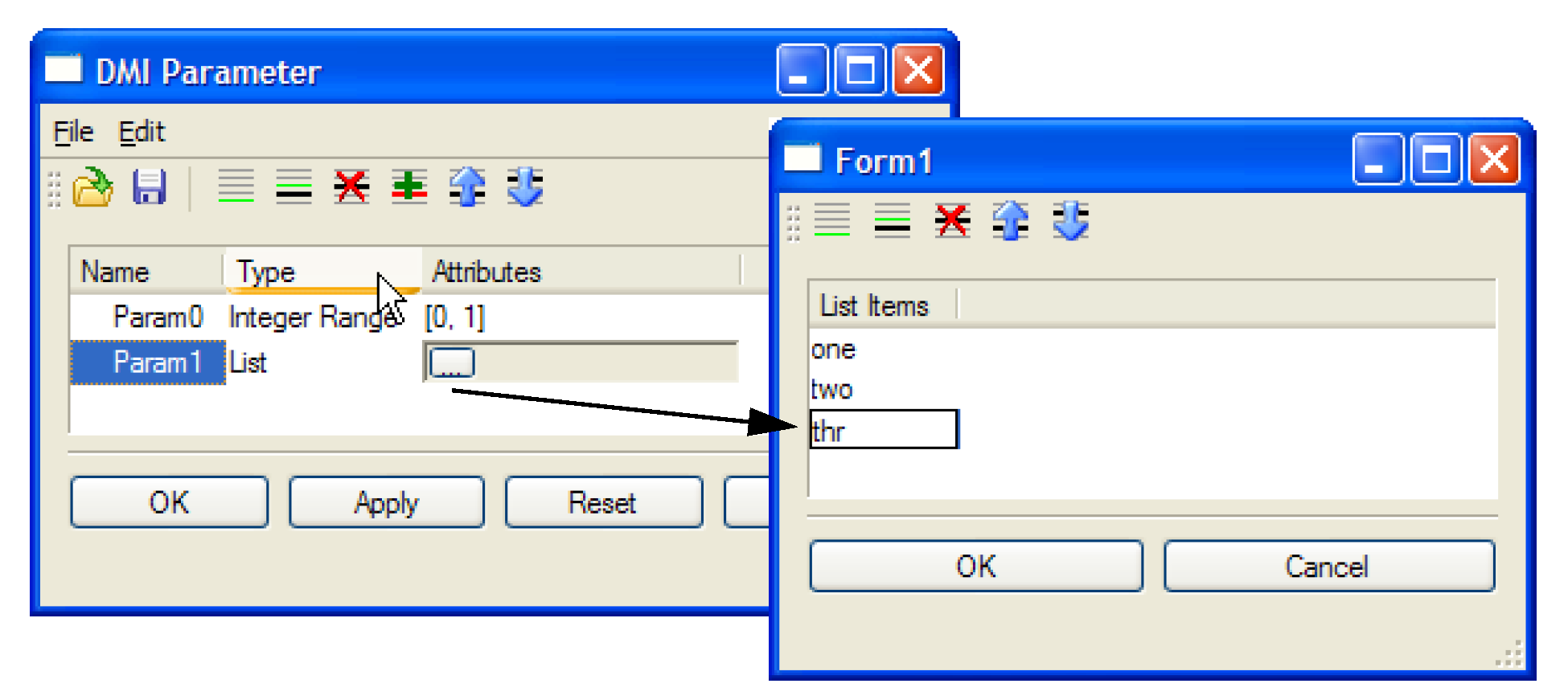

Figure 1.5 shows that for a List, the attribute-specific window enables you to append, insert, delete, edit and order text items, ensuring the text items contain only non-white space characters (first image).

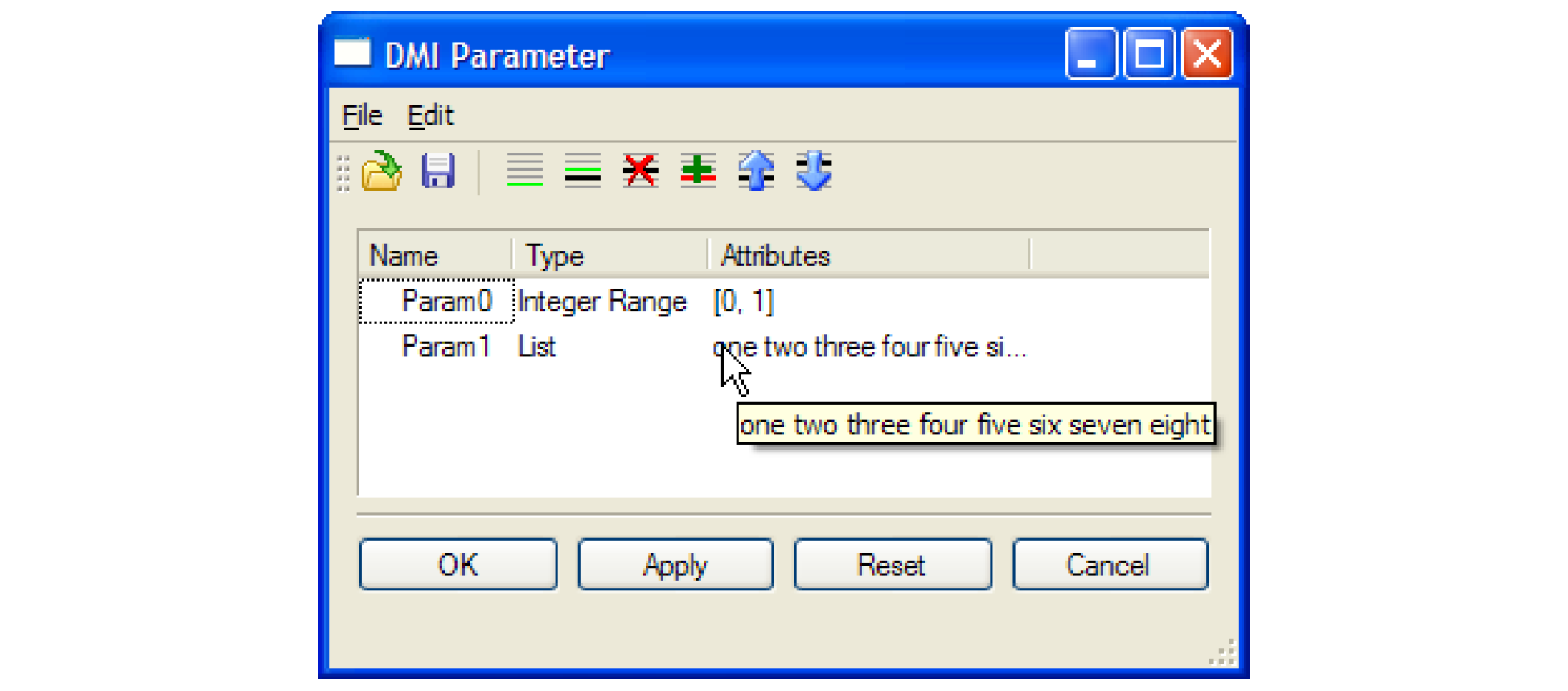

Figure 1.6 shows that if the resulting list contains more text than will fit in the Attributes cell, an ellipsis (“...”) is displayed and the entire list is displayed in a tooltip when the mouse pointer is paused on the Attributes cell (second image).

Before exporting or importing parameters, all edits (, or ) must be resolved (applied or canceled).

To export parameters, selects the File, then Export Parameters main menu item, which opens a file chooser. Select the file to export the parameters to, then selects Save. If the file has a “.gz” suffix the parameters are saved in a compressed format.

To import parameters, select the File, then Import Parameters main menu item, which opens a file chooser. Select the file to import the parameters from, then selects Open.

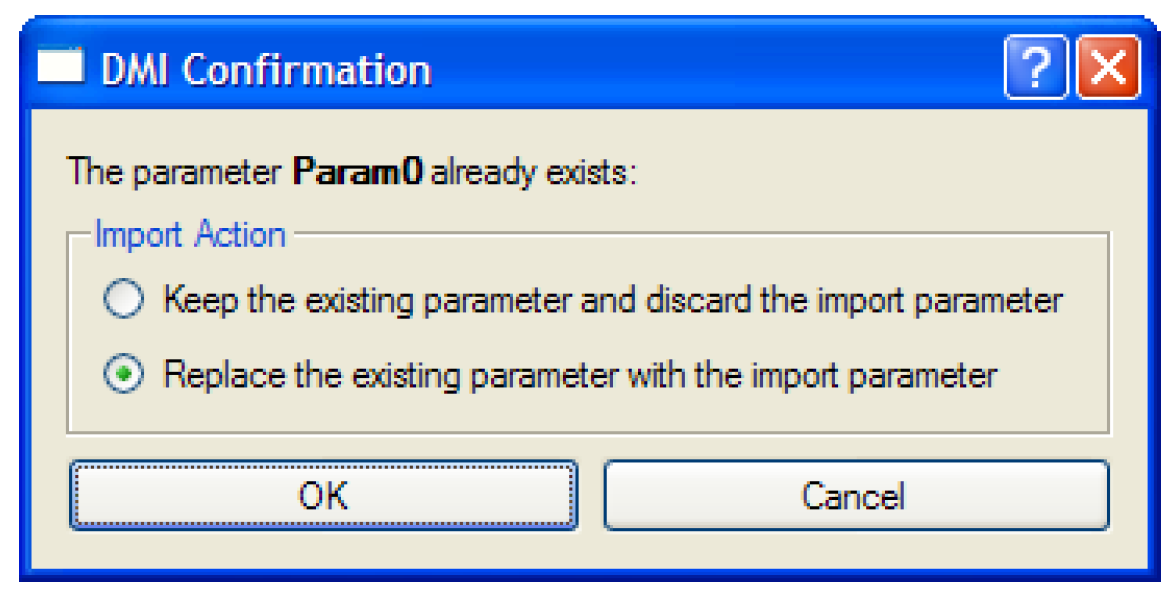

Parameters are imported by name; if the file contains a parameter which already exists, you are asked whether to keep the existing parameter or replace it with the import parameter:

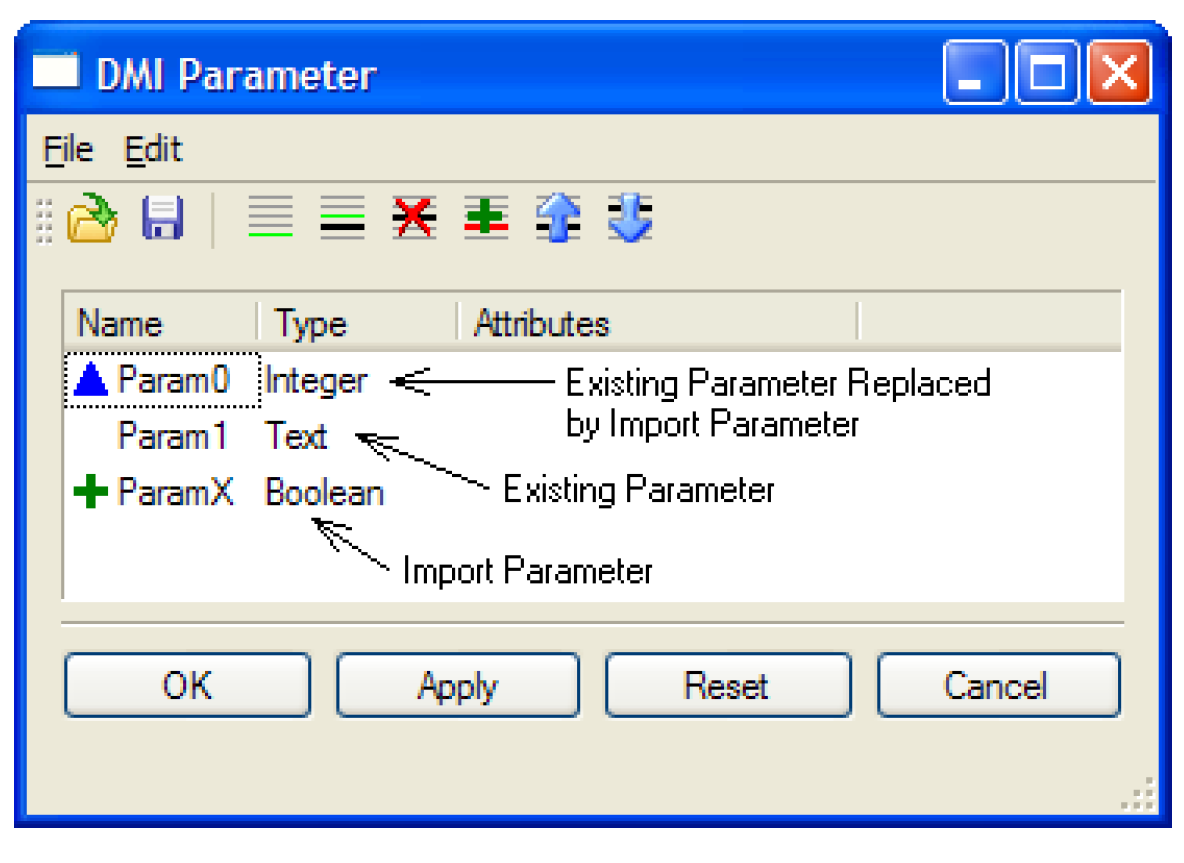

Also, parameters are imported as though they were edited. Import parameters which are new are marked with ; import parameters which replace an existing parameter are marked with :

Then, you can:

When the DMI Parameter window changes a parameters it can invalidate DMIs using the parameters. Consider Param0 (a Boolean parameter), Param1 (a Text parameter) and Param2 (an Integer Range parameter):

Although the DMI is invalid, it isn’t changed; that is, when the DMI is invoked its executable’s command line will still include:

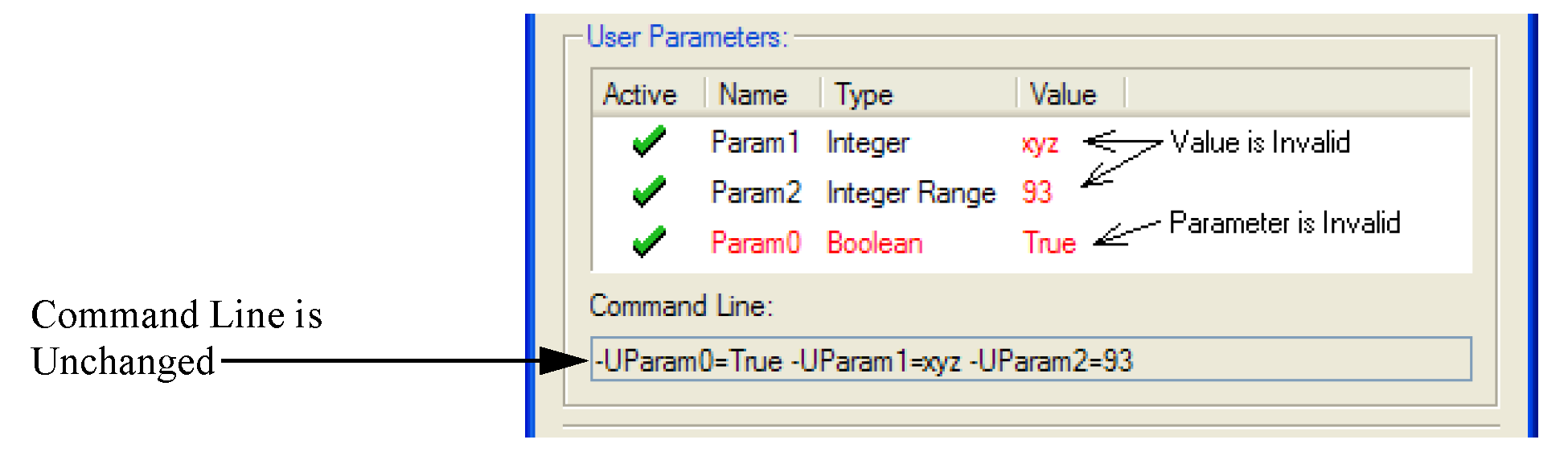

However, when you edit the DMI there will be a graphical indication that the DMI is invalid, and you will be constrained in how the DMI can be edited.

Param0 is shown entirely in red to indicate it is deleted. In this case, you are limited in that you:

Param1’s value and Param2’s value are shown in red to indicate they are invalid. Here, you are limited in that you:

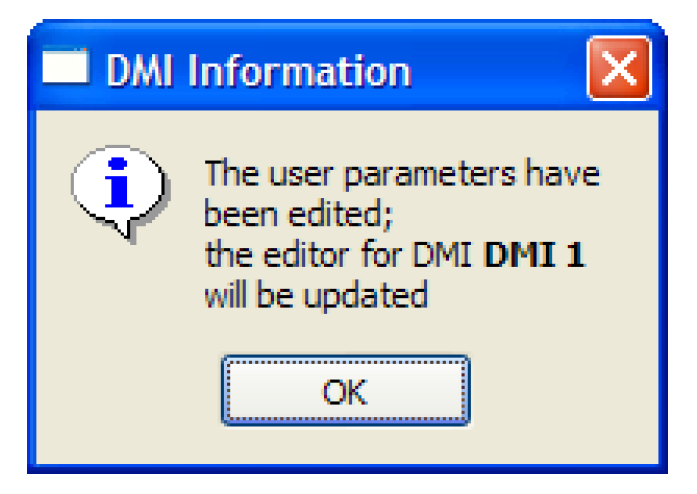

Finally, if the DMI Editor is open when you edit the parameters, a confirmation dialog appears, notifying that the DMI Editor will be updated.

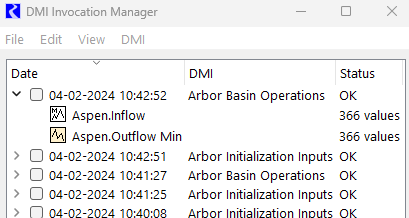

The DMI Invocation Manager displays all DMI invocations that have been recorded. From this tool, you can clear values that were set by a specific DMI.

The Invocation Manager is opened from the DMI Manager using the Utilities, then Invocation Manager menu.

For each invocation the manager displays the following:

The DMI Invocation Manager is a singleton; that is, no other edits or views to any RiverWare window can be made while the DMI Invocation Manager is open. It must be closed first. Use the File, then Close Window menu, Ctrl-W shortcut or Close button.

Values set by a DMI with Invocations Recorded are given the “Z” flag. Tooltips on the slot window displays indicate which DMI set each values on the slot. For example, in Figure 1.7, on Jan 2, 2020 the value 1685.71 was set by the “Arbor Basin Operations” DMI.

The manager has two views, By DMI and By Date accessible from the View menu.

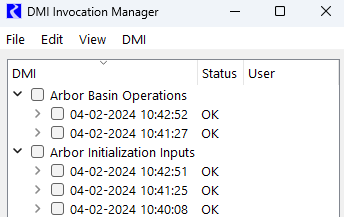

In the By DMI view, the invocations are grouped by DMI, with the invocations in reverse-chronological order (most recent is on the top).

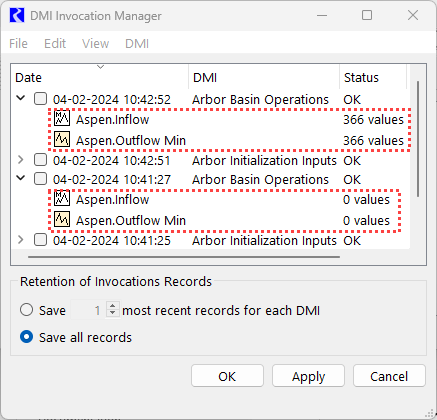

In the By Date view, the invocations are displayed in a list, in reverse chronological order.

In both views, the slots set by an invocation are displayed in a tree view in alphabetical order.

It is possible an invocation of a DMI will be superseded by other events, perhaps another invocation of the DMI or user inputs from the user interface. In , the first invocation of “Arbor Basin Operations” (bottom) has been superseded by the second invocation (top), and consequently the first invocation (bottom) no longer is responsible for setting the values that are on the slot. This is indicated with the “0 values” in the Status column.

To clear numerical values that were set by a DMI invocation, select the invocations, and then from the Edit menu Clear Selected Values.

The Edit, then Clear Selected Values feature clears values set by DMIs on a per-invocation basis; you select the DMI invocations to clear, and only the values set during those invocations will be cleared. Suppose a DMI is invoked twice, setting values on a SeriesSlot at timesteps t1 and t2 during the first invocation and at timesteps t3 and t4 during the second invocation. If a user selects the first invocation, only the values set at timesteps t1 and t2 will be cleared.

Following are some limitations on the clearing of DMI values:

DMIs can then be executed directly from the DMI Invocation Manager using the DMI menu.

To delete Invocation Records, select the desired invocation records, and then delete by selecting Edit and then Deleted Selected Records. This operation deletes the record from the list of invocations but does not delete any of the values.

When recording invocations, the DMI information is written to the model file during model save. There are two options to specify how much information to retain over time:

When switching from All to N records, a confirmation is presented if records will be deleted.

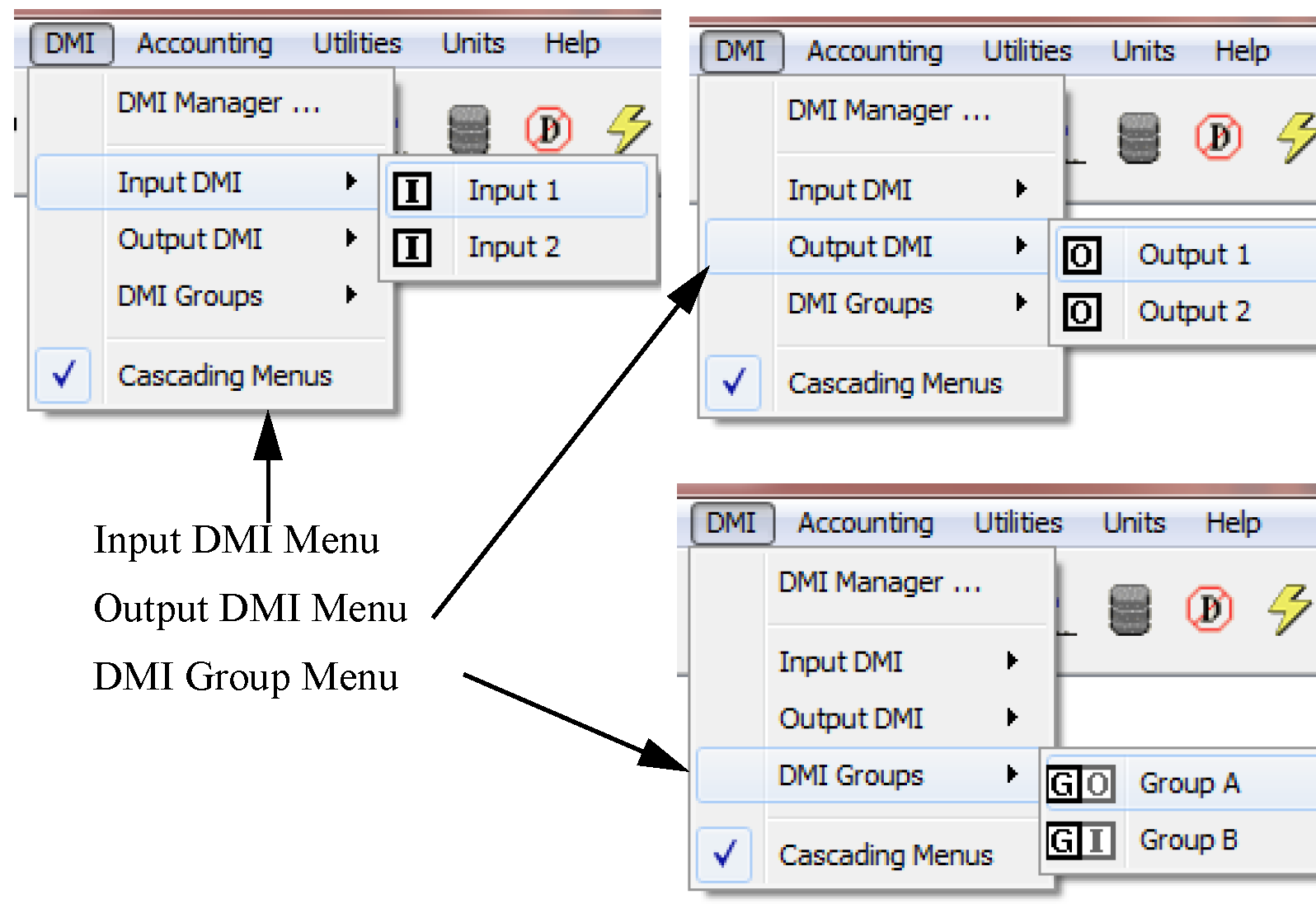

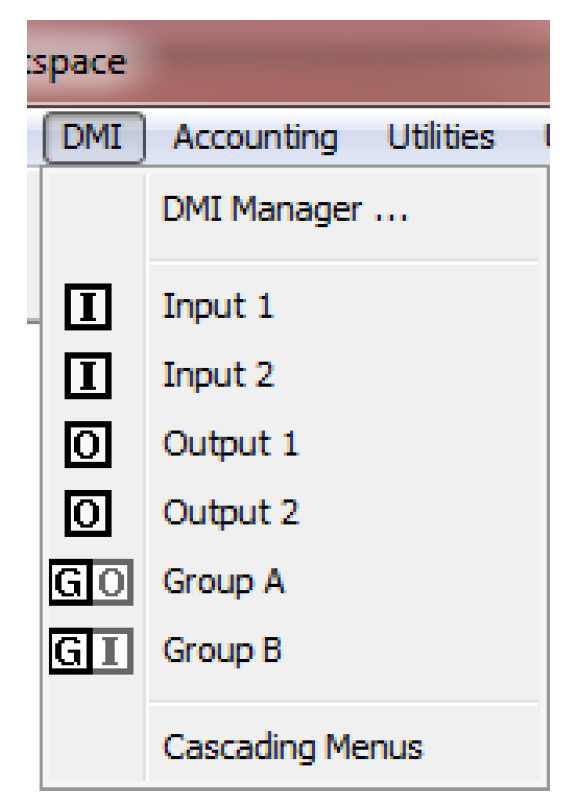

There sere five ways to invoke a DMI or DMI Group: from the DMI Manager, from the Workspace, from the SCT, from the DMI Invocation Manager, or from RPL blocks.

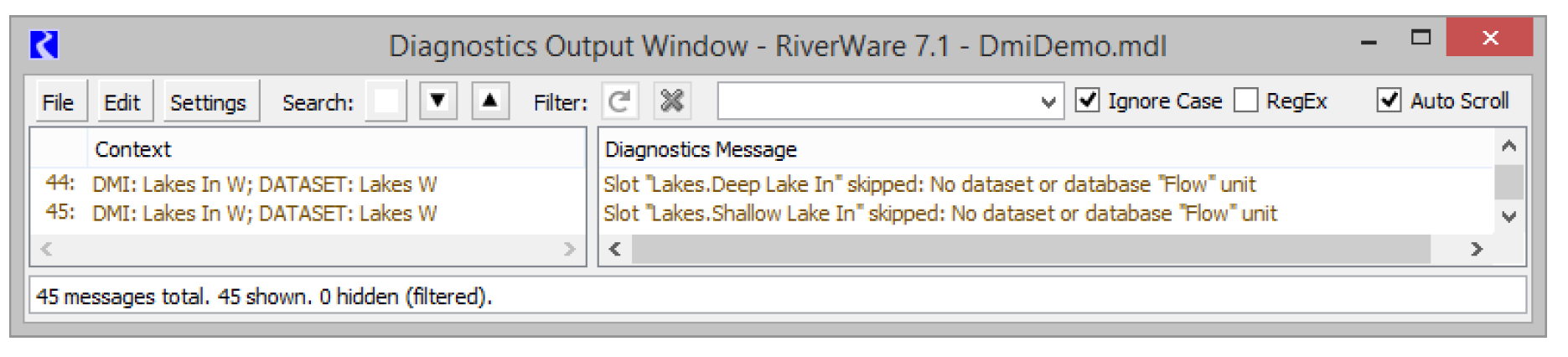

When a DMI is invoked, each warning is displayed in the Diagnostic Output.

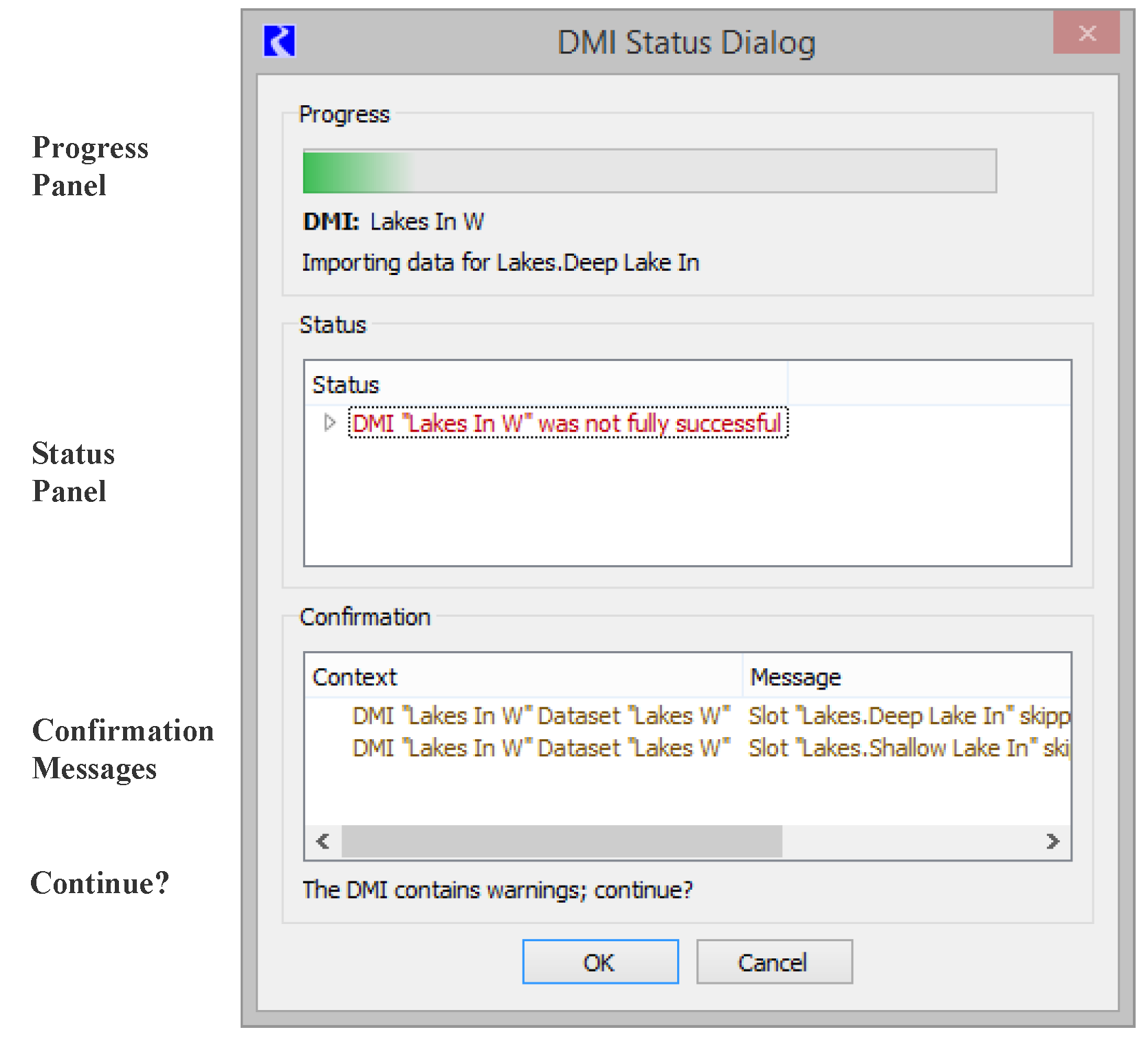

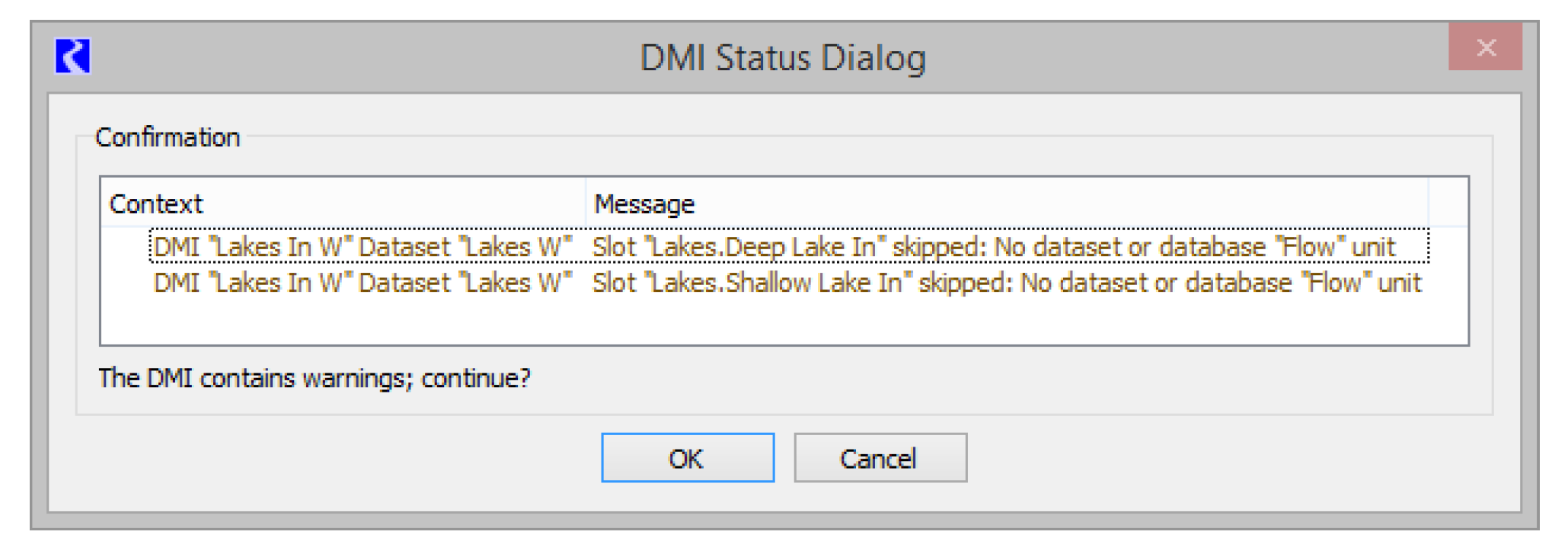

If the DMI is configured to Confirm Warnings (see Name and Type and Confirm Warnings Checkbox) or an error occurs, a separate DMI Status Dialog will open. Figure 1.10 shows the warning or error messages.

If the messages are just warnings and you wish to continue execution of the DMI (Confirm Warnings is selected), select OK. Otherwise, select cancel to stop execution.

Any errors generated by the DMI are displayed in the DMI Status Dialog and in the Diagnostic Output in red text. After an error, the DMI stops executing.

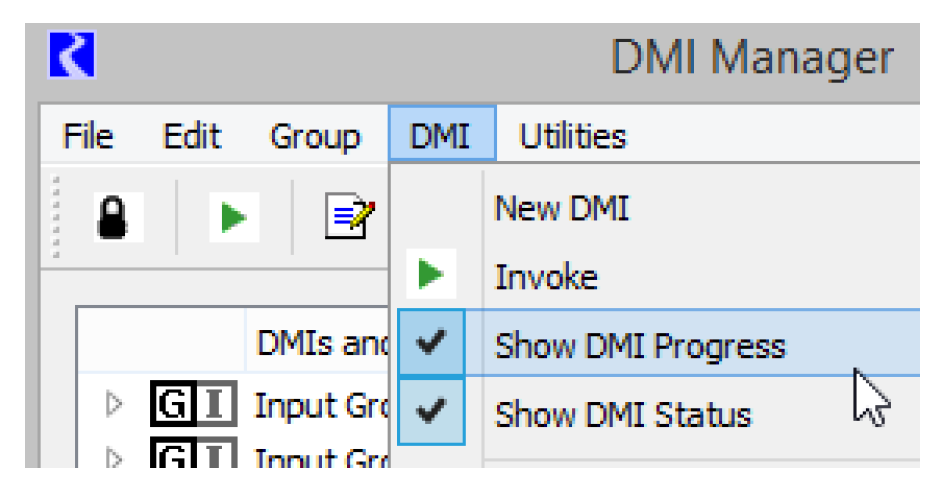

The status of an executing DMI is shown in the bottom of the DMI manager. You can also configure to show a separate DMI Status Dialog that has optional panels for the Progress, Status, and Confirmation. This shows information on the DMI as it executes including the slots that it is processing and the location of the data being processed. To show this status dialog, from the DMI Manager, select DMI, then Show DMI Status or DMI, then Show DMI Progress. The selections are saved with the model file. In Figure 1.11, both Show DMI Progress and Show DMI Status are selected. In addition, there are Confirmation messages that must be confirmed before this DMI can continue.

In Figure 1.12, the Progress panel shows that the DMI is executing including the Group (if there is one), the DMI, and the slots being processed.

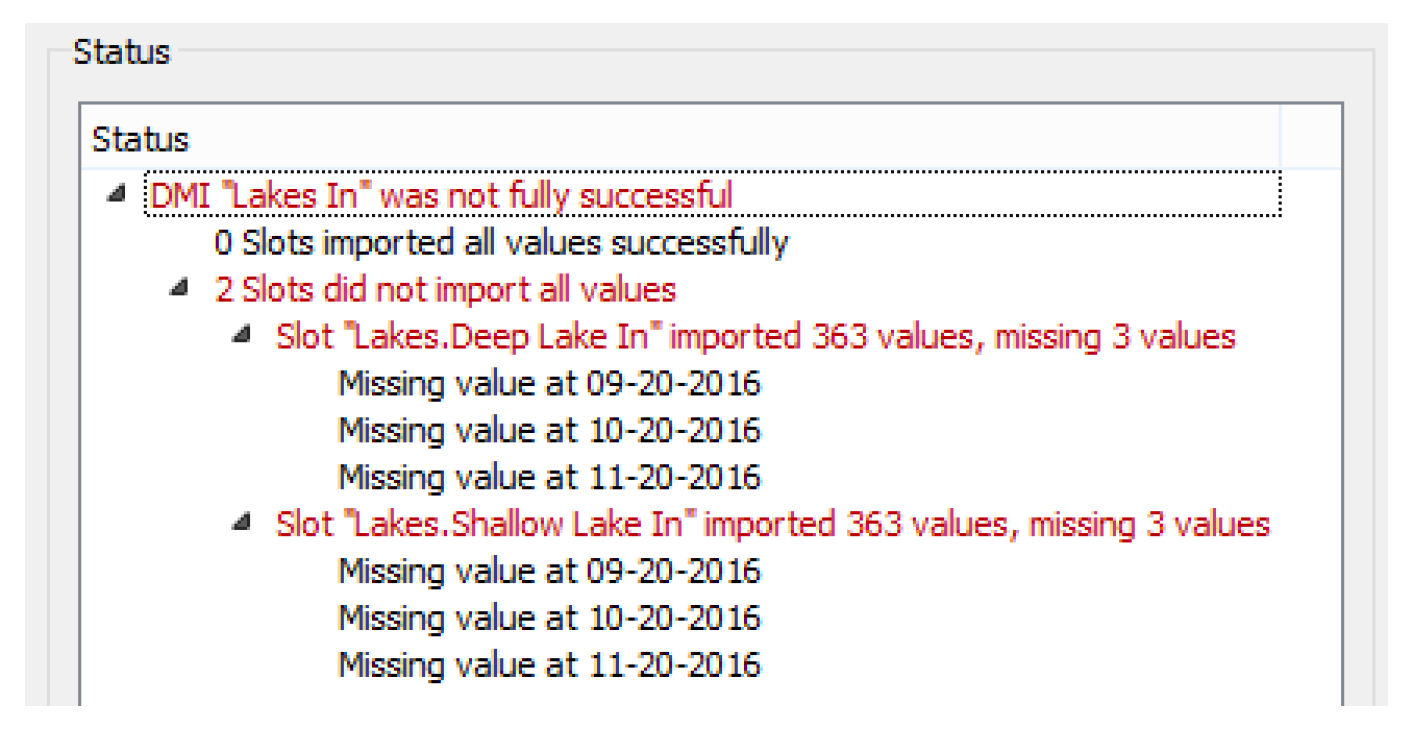

The Status Panel shows the results (for an Input DMI only). For example, in Figure 1.13, the treeview has been expanded to show all of the information. This indicates that 363 values were imported for each slot, but three values in each slot were missing. The red messages are also copied to the Diagnostics Output Window so you can see the messages after closing the DMI Status dialog.
