Action Type Settings Reference

Automation Tools : Script Management : Action Type Settings Reference

This section provides details about settings specific to each type of action.

Clear DMI Values

Clear the values set by a DMI (by using the DMI invocation manager functionality).

Setting	Type	Notes
DMI Name	Text	Enter the DMI name or choose the DMI using the menu.

Clear Scalar Slot Values

Clear the values on a set of Scalar Slots (i.e. set them to NaN).

Setting	Type	Notes
Slots	Slot Selection	Enter or choose one or more scalar slots for which you wish to clear the values.

Clear Table Slot Values

Clear certain values on a set of Table slots (i.e. set them to Nan).

Setting	Type	Notes
Slots	Slot Selection	Enter or choose one or more table slots. The values in these slots will be cleared.
Row	Text	Specify the row as either the row number (zero based) or the row heading
Column	Text	Specify the column as either the column number (zero based) or column heading

Configure MRM Index Sequential

For the specified MRM configuration, modify the configuration in terms of Index Sequential. This is shown on the Input tab in the MRM configuration. See “Index-sequential Runs” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller
Number of Runs	Integer	Specify the Number of Runs
Initial Offset	Integer	Specify the Initial Offset
Interval	Integer	Specify the Interval

Configure MRM Input DMI

For the specified MRM configuration, modify the configuration in terms of Input DMIs, particularly the repeat count. This is shown on the Input tab in the MRM configuration. See “Input” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller.
DMI Name	Text	Choose the Input DMI to configure. This should already be selected in the MRM configuration.
Repeat Count	Integer	Specify the Repeat Count.

Configure MRM Output

For the specified MRM configuration, modify the configuration in terms of the Output. This is shown on the Output tab in the MRM configuration. See “Output” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller.
Control File	File Chooser	Enter the file path. See “Filename Information” for details.
Generate CSV Files	Yes/No	Specify whether or not to generate CSV output
Generate NetCDF Files	Yes/No	Specify whether or not to generate NetCDF output
Allow Control File Editing	Yes/No	Specify if you would like the control file to be editable on the dashboard.

Create Slot Cache

Creates a slot cache that contains the current values of all series slots on the workspace, in the range of the current controller. See “Slot Cache” in User Interface for details on the cache.

Note: The slot cache is under development. Contact riverware-support@colorado.edu for details and the current status of this feature.

Setting	Type	Notes
None

Create Snapshot

Create a Snapshot of the specified slots.

Setting	Type	Notes
Slots	Slot Selection	Enter or choose one or more slots for which you wish to take a snapshot.
Snapshot Name	Text	Specify the name of the snapshot object to create.
Replace Existing Snapshot?	Yes/No	Choose to replace a snapshot of the same name. If No, then a unique name for the snapshot will be created.

Divider

This item adds a divider to the Script Editor and Script Dashboard. It does not do anything in script execution; it is strictly for to provided a visual separation between actions. The Display Text can be used to add text to the divider.

Setting	Type	Notes
Divider Color	Color Chooser	Use the color chooser to select the background color for the divider.

Enable Dispatching

For the specified objects, enable or disable the dispatch method execution. When disabled, the object icons on the workspace and in other dialogs appear dimmed.

Setting	Type	Notes
Objects	Object Selection	Choose the desired objects using the object selector.
Enable or Disable?	Enable Dispatching / Disable Dispatching	Specify Enable to enable dispatching. Specify Disable to disable dispatching of those objects.

Enable MRM Distributed Runs

For the specified MRM configuration, specify whether to distribute concurrent runs to multiple processors on the same machine. See “Distributed Concurrent Runs” in Solution Approaches for details on distributed MRM.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller.
Enable or Disable?	Enable / Disable	Specify Enable to run in distributed mode. Specify Disable to run the concurrent runs on a single processor.

Enable RPL Item

Enable or disable a RPL item (policy group, rule, method, or goal).

Setting	Type	Notes
Set	Single Selection	Choose the set to which the RPL item belongs.
Item	Single Selection	Use the RPL item chooser to select the item.
Enable or Disable?	Yes/No	Specify Yes to Enable or No to disable the specified item.

Evaluate Expression Slots

Evaluate a set of expression slots.

Setting	Type	Notes
Slots	Slot Selection	Choose the slots using the selector.

Execute DMI

Invoke a DMI or DMI group.

Setting	Type	Notes
DMI Name	Text	Enter the DMI name or choose the DMI using the menu.

Execute MRM Run

Execute the specified MRM configuration.

Setting	Type	Notes
Configuration	Text	Enter the name of an MRM configuration you wish to run.

Execute Run

Run the model.

Setting	Type	Notes
NA

Execute Script

Execute a script from within this script.

Note: The script called by this action cannot have additional Execute Script actions. Rephrased, a script cannot call a script that calls another script. Only one level of a script executing a script is allowed. Also, a script cannot call itself.

Setting	Type	Notes
Script Name	Text	Type the script name or choose the desired single script from the script selector.

Generate Output Device

Generate the specified Output Device. This could be a file based device like a Model Report or a graphical device like a Plot Page.

Setting	Type	Notes
Device Name	Text	Enter or choose the name of a output device (plot, file, report, chart)

Global Time Scroll

Scroll time and series displays to the specified symbolic date/time.

Setting	Type	Notes
Scroll to DateTime	Datetime	See “Datetime Information” for details.
Allow Editing	Selection	Yes indicates that users should be allowed to override the start date in the Dashboard.

Load Goal Set

Open and load a goal set (for Optimization runs).

Setting	Type	Notes
File name	Text	Enter the file path. See “Filename Information” for details.
Confirm Replacement	Yes/No	Yes indicates that if the specified set is already open, a dialog should be presented to confirm replacement of the existing set.
Show Dialog	Yes/No	When this setting is Yes, the RPL set dialog is shown when the action is executed. Otherwise, the set is loaded into the model, but not shown.

Load Ruleset

Open and load a ruleset (for Rulebased Simulation runs).

Setting	Type	Notes
File name	Text	Enter the file path. See “Filename Information” for details.
Confirm Replacement	Yes/No	Yes indicates that if the specified set is already open, a dialog should be presented to confirm replacement of the existing set.
Show Dialog	Yes/No	When this setting is Yes, the RPL set dialog is shown when the action is executed. Otherwise, the set is loaded into the model, but not shown.

Memo

Pause script execution and optionally open a confirmation dialog with your user specified message. While script execution is paused, you can interact with RiverWare or other applications in ways not directly supported by scripts. Select the script Continue button to resume the script execution.

Setting	Type	Notes
Explanation	Multi-line text	Enter the desired text. This will optionally be displayed in the memo dialog and or the Dashboard dialog along with the Display Text.

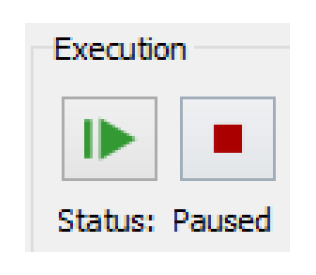

Pause Execution	Yes/No	Yes indicates that script execution will pause when the memo is reached. Select the Continue button to resume the Script execution.
Show Memo Dialog	Yes/No	Yes indicates that memo execution will open a dialog which presents the memo display and explanation texts.
Show Explanation in the Dashboard	Yes/No	Yes indicates that the explanation text will be displayed with the display text in the Dashboard.

Open File

Open the specified external file using the windows file association. If you would like to pause script execution after opening the file, add a Memo action, described at “Memo”, after the Open File action.

Setting	Type	Notes
File name	Text	Enter the file path. See “Filename Information” for details. The file will be opened using the application associated with the file's extension in Windows. For example, temp.xlsx will be opened using Excel.

Open Global Functions Set

Open a global function set.

Setting	Type	Notes
File name	Text	Enter the file path. See “Filename Information” for details.
Confirm Replacement	Yes/No	Yes indicates that if the specified set is already open, a dialog should be presented to confirm replacement of the existing set.
Show Dialog	Yes/No	When this setting is Yes, the RPL set dialog is shown when the action is executed. Otherwise, the set is opened into the model, but not shown.

Open Objects

Open the specified objects’ dialogs.

Setting	Type	Notes
Objects	Object Selection	Choose the objects to open.

Open SCT

Open a System Control Table (SCT) with the specified filename.

Setting	Type	Notes
File Name	Text	Enter the file path. See “Filename Information” for details.

Open Slots

Open the specified slots.

Setting	Type	Notes
Slots	Slot Selection	Choose the slots using the selector.

Remove RPL Set

Remove a selected RPL set from the model. An RBS Ruleset or Optimization Goal set is unloaded and closed, a Global Function Set is closed, or the Initialization Rules Set is cleared.

Note: If you have any of these sets saved in the model file and you remove them using this action, any changes will be lost! This action should only be used if you have the set saved to a file and wish to remove it from the model and reopen it from the file. Use with caution!

Setting	Type	Notes
Set	Single Selection	Choose the desired RPL set.
Confirm Removal	Yes/No	Yes indicates that a dialog should be presented to confirm removal of the set.

Reorder RPL Set

Reorder the items (rules, goals, statements) in a RPL set according to priority or index defined on the specified table slot.

Setting	Type	Notes
Set	Single Selection	Choose the desired RPL set.
Order Slot	Single Slot Selection	Choose the table slot which specifies the new RPL set ordering. See “RPL Reorder Set Action” for details.

Replace Initialization Rules Set From File

Replace the existing Initialization Rules Set from a file. Any changes made to the Initialization Rules in the model will be lost. Use with caution!

Setting	Type	Notes
File name	Text	Enter the file path. See “Filename Information” for details.
Confirm Replacement	Yes/No	Yes indicates that a dialog should be presented to confirm replacement of the existing Initialization Rules Set.
Show Dialog	Yes/No	When this setting is Yes, the RPL set dialog is shown when the action is executed. Otherwise, the set is replaced in the model, but not shown.

Save Model

Save the model to a file.

Setting	Type	Notes
File Name	Text	Enter the file path. See “Filename Information” for details.
Include Output Values	Yes/No	Yes indicates output values will be saved.
Output Values Precision	Integer	Indicates the precision to use for output values.
Confirm Overwrite	Yes/No	Yes requires interactive confirmation when saving the model to a preexisting file.

Set Account Method

Set the selected method in one of an account’s method categories.

Setting	Type	Notes
Account Name	Text	Choose the account using the selector
Category	Text	Choose the category on the account
Method	Text	Choose the desired method

Set Accounting Period

Set the time range of the accounting system (i.e., the Begin Accounting Period and End Accounting Period dates).

Setting	Type	Notes
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.

Set Controller

Set the current controller.

Setting	Type	Notes
Controller	Selection	Choose the controller from the list

Set Dataset File

Set the DSS file for a specified DSS Dataset or the Excel workbook for a specified Excel Dataset.

Setting	Type	Notes
Dataset	Text	Enter or choose the name of a DSS Dataset or an Excel Dataset defined in the Dataset Manager.
File Name	Text	Enter or choose the DSS file or Excel workbook.
Allow File Editing	Selection	Yes means the file can be entered or chosen in the Dashboard. No means that the file cannot be changed in the Dashboard.

Set Excel Dataset Run Name

For the specified Database DMI Excel Dataset, set the run name type and/or specify a new single run name.

Setting	Type	Notes
Excel Dataset	Text	Enter or choose the name of an Excel Dataset defined in the Dataset Manager. See “Excel Datasets” in Data Management Interface (DMI) for details on Excel Datasets.
Run Name Type	Selection	Choose one of the available Run Name Types either: • Single Run Name • Run with MRM Number (i.e. Run0, Run1, ...) • Trace with MRM Trace Number (i.e. Trace1, Trace2,...)
Single Run Name	Text	This setting is shown when the above setting is set to Single Run Name. Enter a new Single Run Name or choose one from the list; see “Run Name Type” in Data Management Interface (DMI) for details. In the Script Dashboard you can enter a new Single Run Name or choose one from the same list.

Set Init. Rules Exec. Flag

Set the Execute Initialization Rules run control flag. This flags controls whether or not the initialization rules are executed as part of the run. The flag is independent for each major controller, Simulation, Rulebased Simulation and Optimization. For more information, see “Can I disable the Initialization Rules?” in RiverWare Policy Language (RPL).

Setting	Type	Notes
Sim and RBS	Yes/No	Yes = execute initialization rules before each Simulation or Rulebased Simulation run, including those controllers that include Accounting.
Optimization	Yes/No	Yes = execute initialization rules before an Optimization run.

Set Method

Set the selected method in the specified category for a set of objects.

Setting	Type	Notes
Object Name	Text	Choose one or more the objects using the selector
Category	Text	Choose the category on the object. The list shown is for the first object.
Method	Text	Choose the desired method. If the category or method is not possible on the object, an error will be issued.

Set MRM Descriptor

In a given MRM configuration, set the specified keyword, value pair MRM Descriptor. The descriptors are shown on the Description tab of the MRM configuration. See “Description” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller
Keyword	Text	Specify the Keyword. If the Keyword does not exist in the configuration, a new one is created.
Value	Text	Specify the desired Value to use with the Keyword.

Set MRM Ruleset

In a given MRM configuration, set a new file path to a ruleset.The ruleset is shown on the Policy tab of the MRM configuration. See “Policy” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller
Ruleset	Integer	Specify which of the rulesets you wish to change. The default is the first ruleset, 1.
File Name	Text	Enter the file path. See “Filename Information” for details.

Set MRM Run Range

Set the time range of the run (i.e. the Run Start and End dates) for the specified MRM configuration. The run range is shown on the Run Parameters tab of the MRM configuration. See “Concurrent Runs” in Solution Approaches for details.

Setting	Type	Notes
MRM Configuration	Text	Enter or choose the name of an MRM configuration defined in the MRM Run Controller
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.
Allow Start Date Editing	Yes/No	Yes indicates that users should be allowed to override the start date in the Dashboard.
Allow End Date Editing	Yes/No	Yes indicates that users should be allowed to override the end date in the Dashboard.

Set Run Range

Set the time range of the run (i.e., the Run Start and End dates).

Setting	Type	Notes
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.
Allow Start Date Editing	Yes/No	Yes indicates that users should be allowed to override the start date in the Dashboard.
Allow End Date Editing	Yes/No	Yes indicates that users should be allowed to override the end date in the Dashboard.

Set Run Timestep

Set the run timestep size. This action is analogous to changing the run control timestep size. The settings in the action are analogous to the options presented in the Synchronize Timestep Change dialog; see “Synchronize From Run Control” in User Interface for details.

Setting	Type	Notes
Timestep	Selection	Choose from 5 Minute, 15 Minute, 1 Hour, 6 Hour, 12 Hour, 1 Day, 1 Month, or 1 Year.

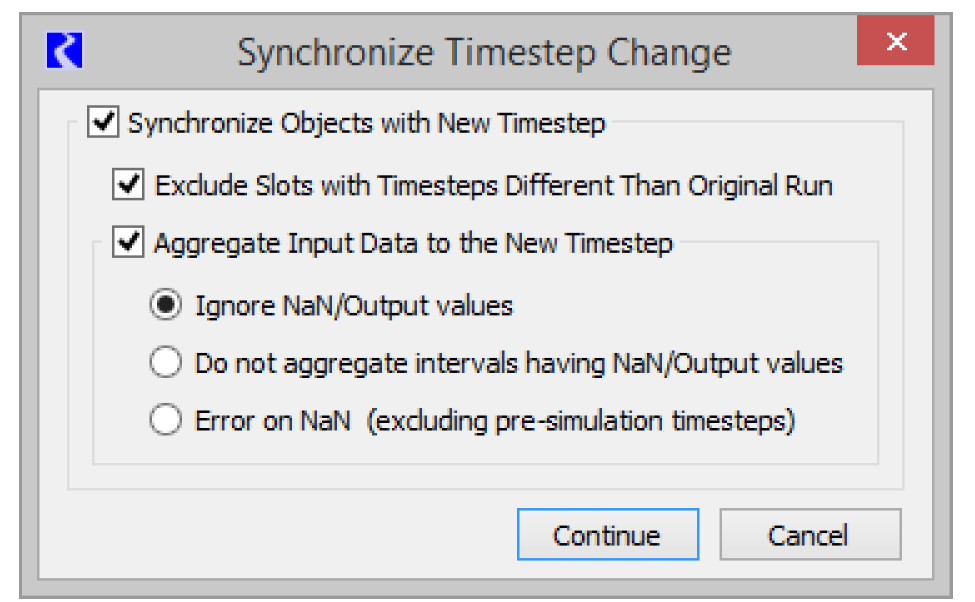

Synchronize Objects with New Timestep	Yes/No	Should objects be synchronized to the new timestep?
Exclude Slots with Timesteps Different Than Original Run	Yes/No	Should slots with a timestep that is different than the original run be synchronized with the new timestep?
Aggregate Input Data to the New Timestep	Yes/No	When changing to a larger timestep (1 Month or 1 Year), should Input values be aggregated?
Aggregate NaN Handling	Selection	If aggregating, how should NaN and Output values in input slots be handled? See “Synchronize From Run Control” in User Interface for details on aggregation.

Set Scalar Slot Value

Set one or more Scalar Slot values.

Setting	Type	Notes
Slots	Slot Selection	Choose the scalar slots using the selector
Set by	Value/Function	This setting indicates how you wish to set the slot, either by specifying values or by a global RPL function. When set to “Value”, the “Value” setting and Allow editing setting, below, are shown. When set to “Function”, the RPL Global Function setting is shown. Note: Only numeric or datetime slots can be set via the “Function” option.
Value	Value	If the “Value” option is selected in the “Set by” setting, specify the value to set at each timestep specified. This value can remain or be set to NaN.
RPL Global Function	Single Selection	If the “Function” option is selected in the “Set by” setting, use the RPL function chooser to select the function.
Allow Editing	Selection	No indicates that the value can not be changed in the Dashboard, Yes: Editor indicates that it can be changed using a line editor; Yes: Radio Buttons indicate that a set of radio buttons should be presented in the Dashboard to override the value; and Yes: Slider indicates that a slider should be presented to allow changes to the value. See “Configuring User Control on the Script Dashboard” for details.
Minimum Edit Value	Numeric (slot value)	Specify the minimum value that is allowed in the Dashboard (applies to Slider only).
Maximum Edit Value	Numeric (slot value)	Specify the maximum value that is allowed in the Dashboard (applies to Slider only)
Encoding Table Slot Name	Slot Selection	The table slot row labels and values establish a textual encoding of values. Applies only to Radio Button display. See “Configuring User Control on the Script Dashboard” for details.
Show Current Value	Yes/No	When Allow Editing is Yes, then this setting allows you to show the current value for the scalar slot on the Dashboard. This only works when one scalar slot is specified.
RPL Global Function	RPL function selector	When using the “Set by:” “Function” mode, specify the Global Function to use. Currently, this function must return a Numeric value or a Datetime. The function is passed the SLOT as an argument. Use these as desired. See “Setting Slot Values using a Global Function” for details.

Set Series Slot Flags

Set the specified flag (input or output) on a set of series slots within the specified time range.

Setting	Type	Notes
Slots	Slot Selection	Enter or choose one or more series slots. The flags in these slots will be set to the specified value.
Column	Value or Text	For multi-column series slots, specify the column as either the column number (zero based) or column heading. If not specified, the first column is used.
Start Date	Datetime	The first timestep for which you wish to set the flag. See “Datetime Information” for details.
End Date	Datetime	The last timestep for which you wish to set the flag.See “Datetime Information” for details.
Flag	Selection	The flag to set on each value in the range.

Set Series Slot Values

Set Series Slot values within a time range.

Note: This action does not support the setting of Text Series Slots.

Setting	Type	Notes
Slots	Slot Selection	Choose the series slot using the selector
Set by	Value/Function	This setting indicates how you wish to set the slot, either by specifying values or by a global RPL function. When set to “Value”, the “Value” setting and editing setting, below, are shown. When set to “Function”, the RPL Global Function setting is shown. Note: Only numeric or datetime slots can be set via the “Function” option.
Column	Value or Text	For multi-column series slots, specify the column as either the column number (zero based) or column heading. If not specified, the first column is used.
Value	Value	If the “Value” option is selected in the “Set by” setting, specify the value to set at each timestep specified. This value can remain or be set to NaN.
RPL Global Function	Single Selection	If the “Function” option is selected in the “Set by” setting, use the RPL function chooser to select the function.
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.
Allow Editing	Selection	No indicates that the value can not be changed in the Dashboard, Yes: Editor indicates that it can be changed using a line editor; Yes: Radio Buttons indicate that a set of radio buttons should be presented in the Dashboard to override the value; and Yes: Slider indicates that a slider should be presented to allow changes to the value.
Minimum Edit Value	Numeric (slot value)	Specify the minimum value that is allowed in the Dashboard (applies to Slider only).
Maximum Edit Value	Numeric (slot value)	Specify the maximum value that is allowed in the Dashboard (applies to Slider only).
Encoding Table Slot Name	Slot Selection	The table slot row labels and values establish a textual encoding of values. Applies to Radio Buttons only. See “Configuring User Control on the Script Dashboard” for details.
RPL Global Function Name	RPL function selector	When using the “Function” mode, specify the Global Function to use. Currently, this function must return a Numeric or a Datetime depending on the slot’s unit type. The function is passed the SLOT and DATETIME as arguments. Use these as desired. See “Setting Slot Values using a Global Function” for details.

Set Table Slot Value

Set a single Table Slot value at the specified row and column.

Setting	Type	Notes
Slots	Slot Selection	Choose the table slot using the selector
Row	Text	Specify the row as either the row number (zero based) or the row heading
Column	Text	Specify the column as either the column number (zero based) or column heading
Set by	Value/Function	This setting indicates how you wish to set the slot, either by specifying values or by a global RPL function. When set to “Value”, the “Value” setting and editing setting, below, are shown. When set to “Function”, the RPL Global Function setting isshown. Note: Only numeric and datetime slots can be set via the “Function” option.
Value	Value	If the “Value” option is selected in the “Set by” setting, specify the value to set at each timestep specified. This value can remain or be set to NaN.
RPL Global Function	Single Selection	If the “Function” option is selected in the “Set by” setting, use the RPL function chooser to select the function.
Allow Editing	Selection	No indicates that the value can not be changed in the Dashboard, Yes: Editor indicates that it can be changed using a line editor; Yes: Radio Buttons indicate that a set of radio buttons should be presented in the Dashboard to override the value; and Yes: Slider indicates that a slider should be presented to allow changes to the value.
Minimum Edit Value	Numeric (slot value)	Specify the minimum value that is allowed in the Dashboard (applies to Slider only).
Maximum Edit Value	Numeric (slot value)	Specify the maximum value that is allowed in the Dashboard (applies to Slider only)
Encoding Table Slot Name	Slot Selection	The table slot row labels and values establish a textual encoding of values. Applies to Radio Buttons only. See “Configuring User Control on the Script Dashboard” for details.
RPL Global Function Name	RPL function selector	When using the “Function” mode, specify the Global Function to use. Currently, this function must return a Numeric or a Datetime depending on the slot’s unit type. The function is passed the SLOT, row NUMERIC, and column NUMERIC, as arguments. Use these as desired. See “Setting Slot Values using a Global Function” for details.

Synchronize Objects

Set the time range for the specified objects.

Setting	Type	Notes
Objects to Synchronize	Object Selection	Use the selector to choose the desired objects.
Exclude Slots with Non-run Timestep	Yes/No	Yes indicates that slots with different timesteps will be excluded from the synchronize action.
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.

Synchronize Slots

Set the time range for the specified slots.

Setting	Type	Notes
Slots to Synchronize	Slot Selection	Use the selector to choose the desired slots.
Start Date	Datetime	See “Datetime Information” for details.
End Date	Datetime	See “Datetime Information” for details.

Revised: 11/11/2019
