Lists the sections in the report, with hyperlinks to their locations.

Lists the information contained in the Model Info dialog (accessed from the workspace using File, then Model Info), including the model’s save history and the specified comments.

Lists the information on the accounting system including range, accrual date, water types, owners, etc. This is the information shown in the Accounting, then Account System Configuration dialog.

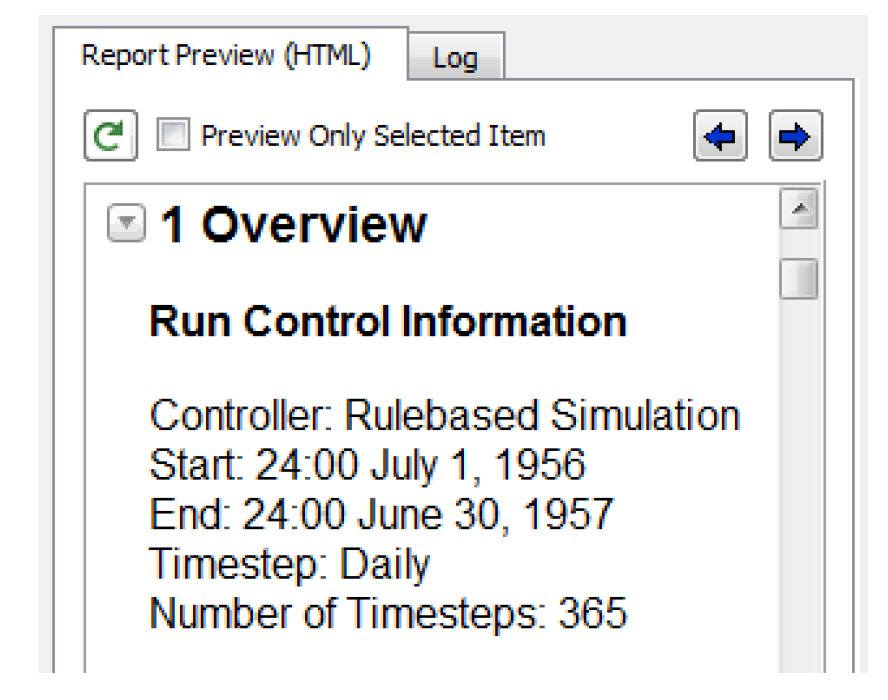

Shows the information contained in the single run control dialog, including the controller, start and end dates, and timestep size.

Shows status information about the last run including version, user, controller, start time, duration, and completion status.

Presents a titled section whose contents are controlled by the items in the section.

Creates a section for a workspace object, whose title is the name of that object and whose contents are controlled by the items in the section.

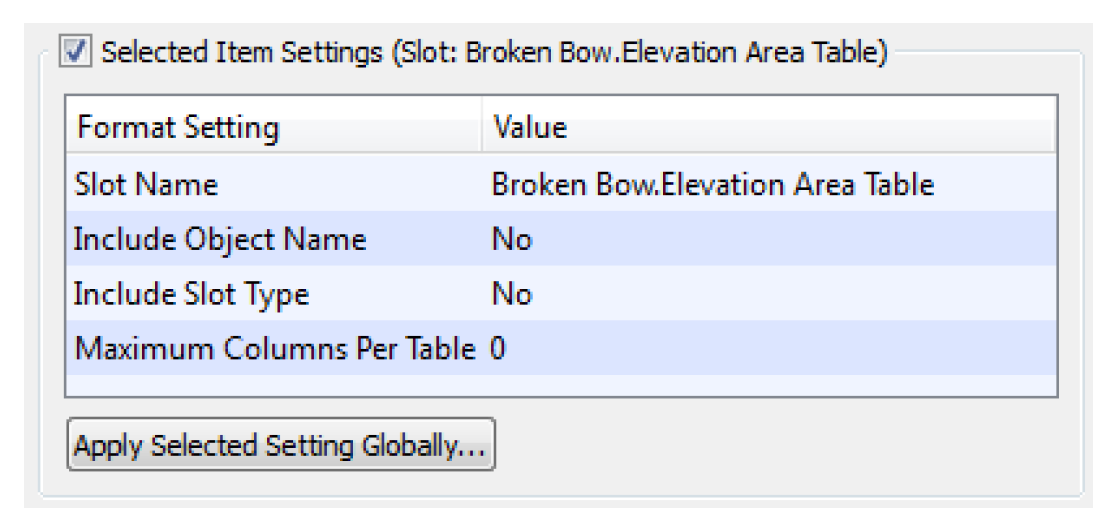

Shows a slot’s name, description, and values. For, table, periodic and scalar slots, the values are shown. For series slots, a plot of the time series is shown. For Expression Slots, the RPL expression is shown along with a plot (series) or value (scalar).

Presents a table showing the name and a single value for one or more selected slots.

Each row of the table is a slot. Columns include the Slot, Object (optional), Account (optional), Value, and Units.

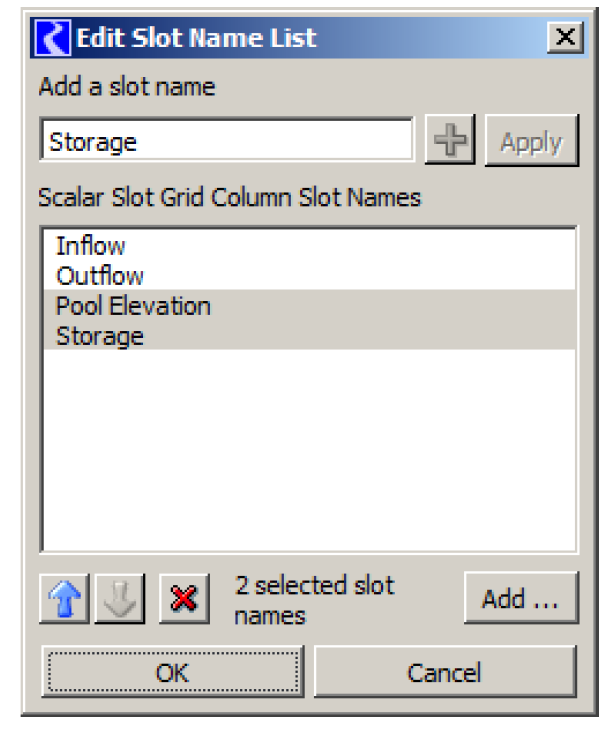

Presents a table showing a grid of scalar slot values. The rows of the table represent objects while the columns represent one or more named scalar slots.

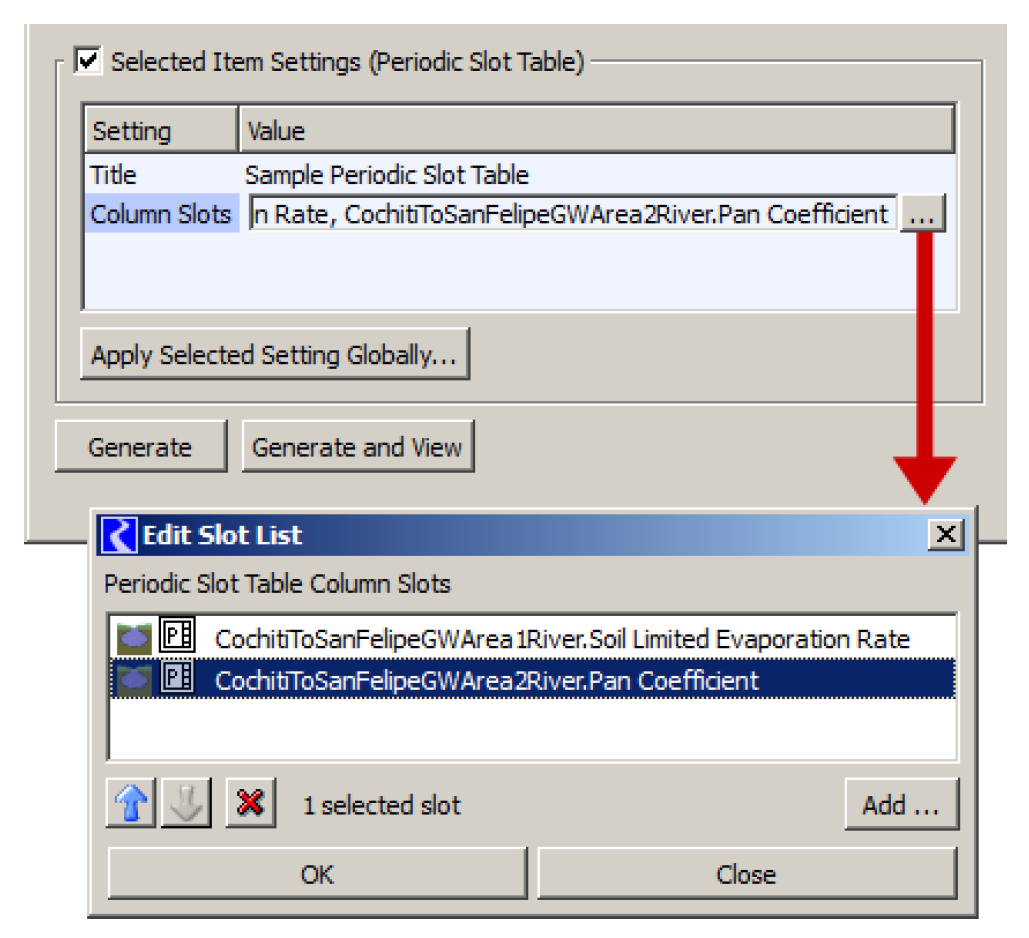

Shows a table where the rows represent the time intervals of a periodic slot and the columns represent the columns in one or more periodic slots. These are used to display periodic slots that have only one column.

Displays a table of the method categories and the selected method in each category. When accounting is enabled, this table includes Object Level Accounting Methods.

Displays a section describing an account on the workspace. The title is the name of the account. Sub-sections can be added to an account section.

Presents a table with a list of accounts (often those for a single simulation object) and optional columns for several account attributes including type, water type, water owner, and priority date.

Presents a table of supplies and optional columns for supply attributes including type, release type, and destination.

Displays a table with an account’s method categories and the selected method in each category. Note: These are account level methods, not object level methods.

Shows a table of the members of a subbasin.

Presents a table of the physical links to slots on the specified object, optionally limited to links to the slots on a second specified object.

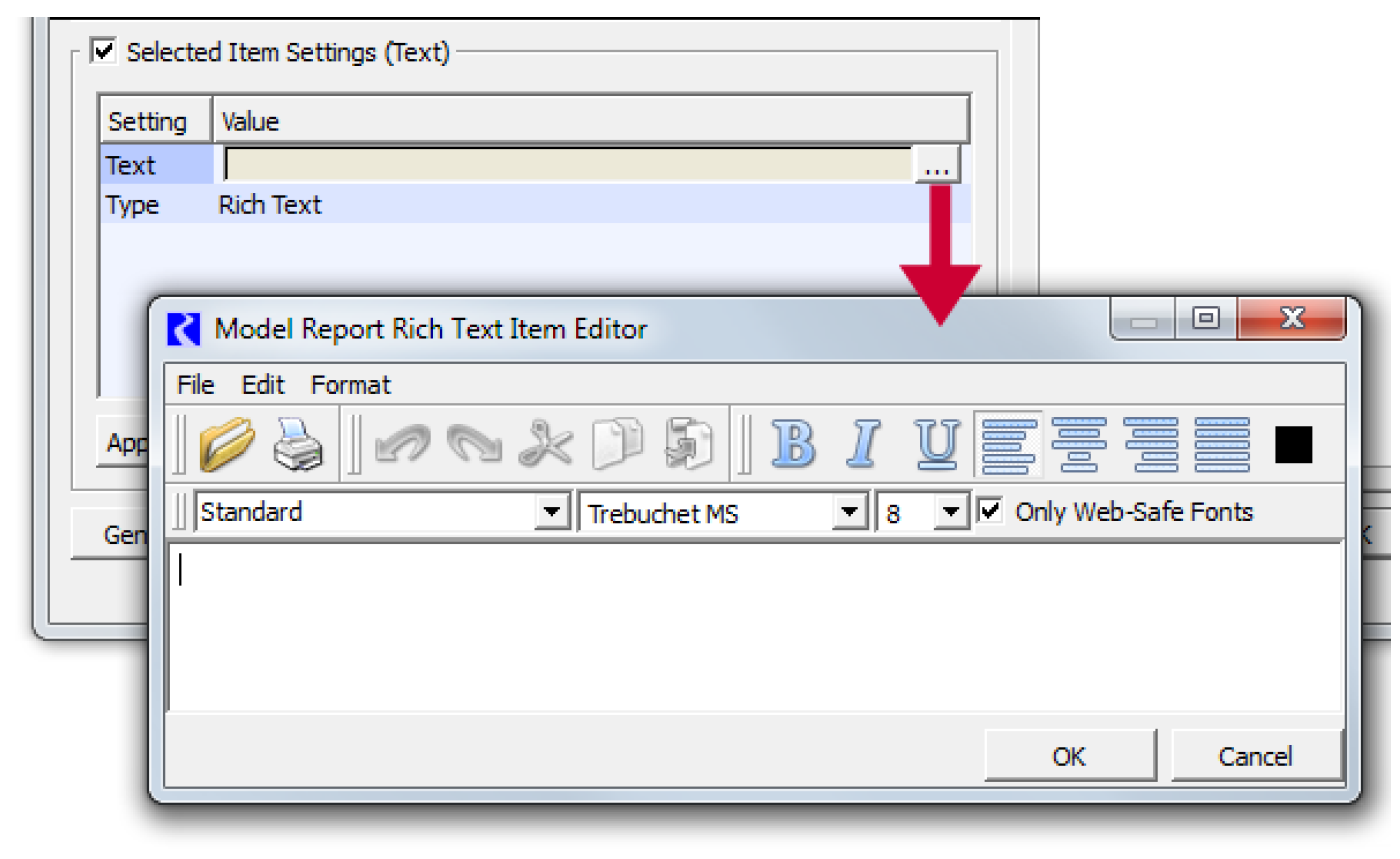

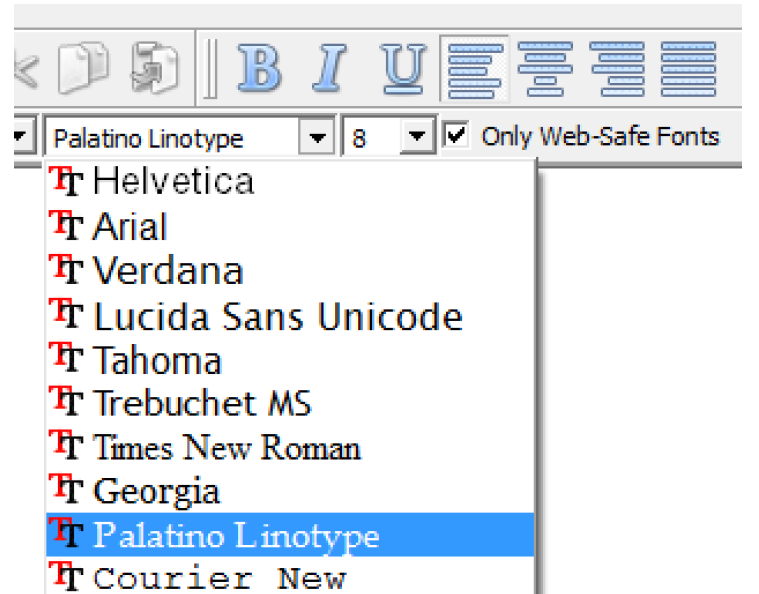

Prints user defined text. The text can be Plain Text or Rich Text which allows formatting.

Shows an Image imported from a file. An optional caption setting is provided.

Displays a section for each policy and utility group in a RPL set.

Displays a section for a single policy or utility group in a RPL set.

Displays a section for a single RPL item (Rule/Goal/Accounting Method).

Shows a single top-level RPL Statement within a RPL Block (a Rule, Goal, User-Defined Accounting Method or Initialization Rule).

Displays an image of an existing plot page output device. Use the Plot Page’s timesteps or override with an optional setting.

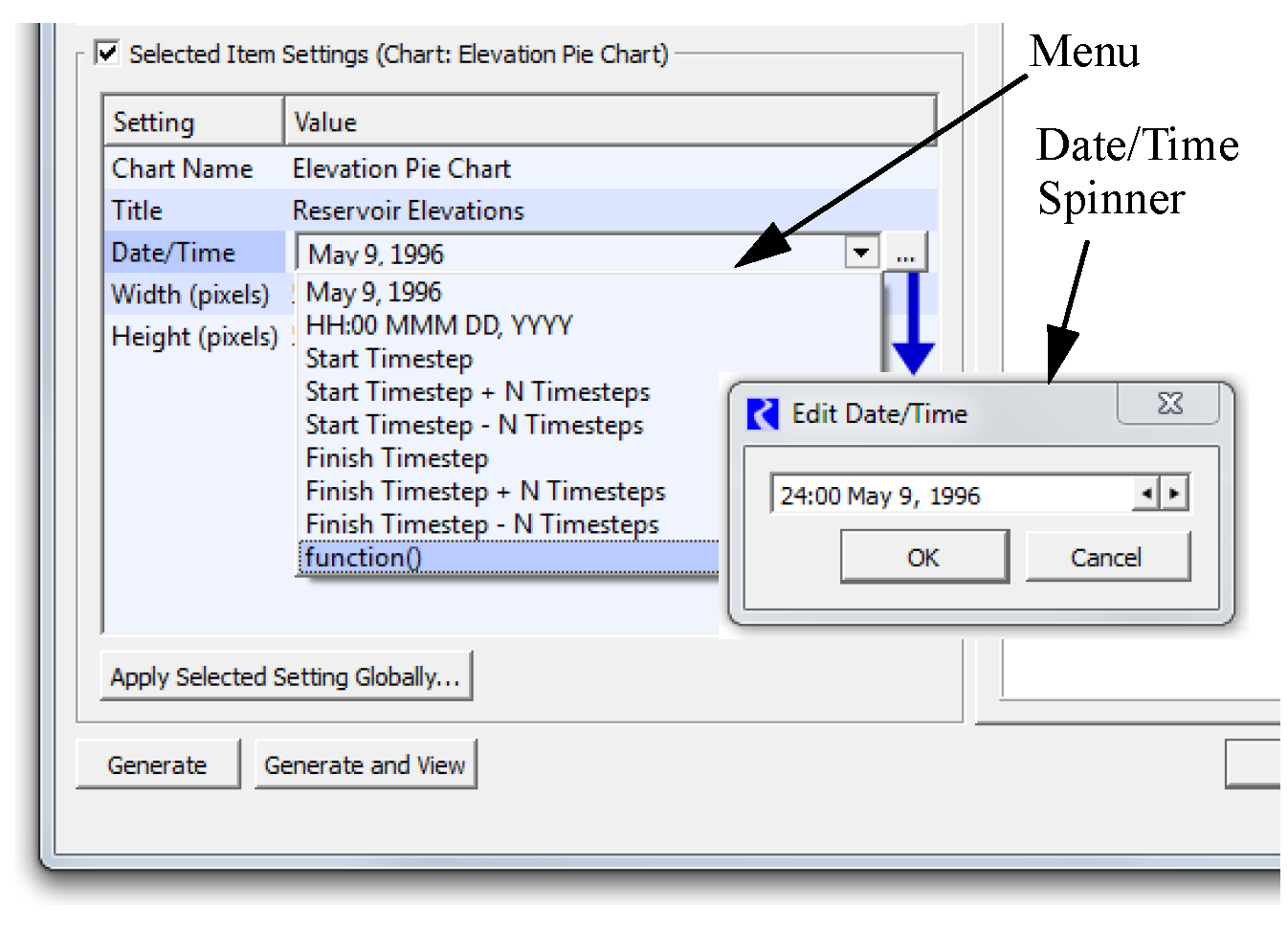

Displays an image of an existing Chart output device. Use the configured timestep or override with an optional setting.

Displays an image of an existing Output Canvas device.Use the configured timestep or override with an optional setting. See “Output Canvas” for additional information.

Displays an existing Tabular Series Slot Report output device in either HTML or text format. The title defined within the Tabular Series Slot Report is extracted from the report and presented as a report item title text within the generated Model Report. Use the configured timesteps or override with an optional setting.

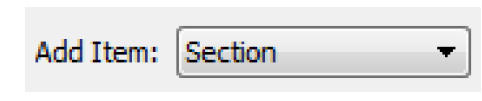

Add Item

Add Items Similar to Selected Item

When an item associated with an object is selected, this button is enabled. When this button is selected, you can use the object selector to select multiple objects. A copy of the selected report item is made for each selected object, with the original object reference replaced with the object selection. For example, if an Object Section item associated with Reservoir A is currently selected and this button is selected, then you select Reservoir B and Reservoir C, then two new Object Section items will be added. Each will be identical to the Reservoir A item except that all references to Reservoir A in one will be replaced with references to Reservoir B, and similarly, Reservoir A references will be replaced with Reservoir C references in the other item.

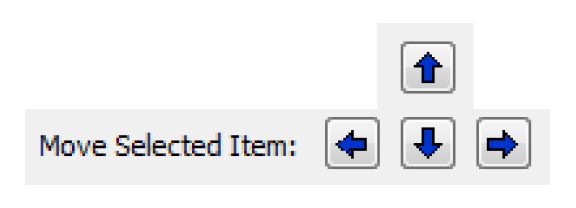

Move arrows

These buttons can be used to move the selected item up or down or to change the sectional organization by making an item a child of item above it (right arrow, make child, or “move in”) or a sibling of the parent item (left arrow, Promote, or “move out”).

Drag and drop

An item can be dragged from one location to another to move it, or it can be dragged from the Report Layout of one model report configuration dialog to that of another dialog to add a copy.

Edit operations

The following standard edit operations can be accessed via the right-click context menu or the Edit Layout menu: Cut, Copy, Paste, Delete. In addition the Edit Layout menu provides the Paste Below Selected Item which adds the buffered item as a new item instead of overwriting the selected item.

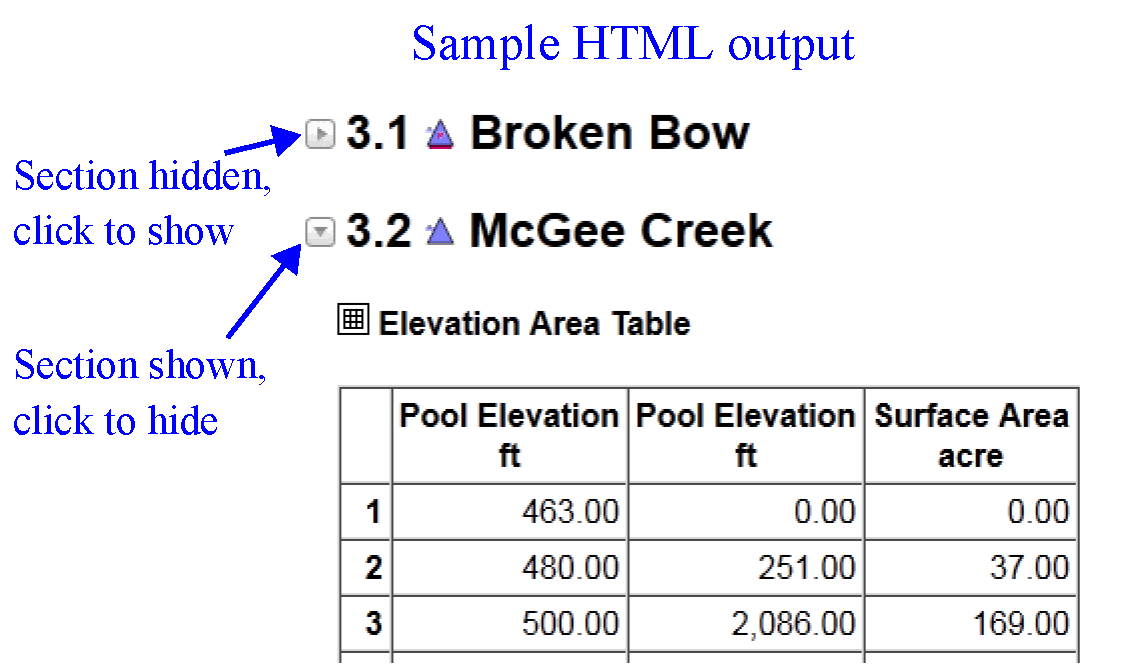

Initially section items are displayed collapsed; in addition to individually collapsing and expanding the contents of section items in the Report Layout, the right-click context menu provides the Expand All and Collapse All options.
