Unit Schemes
A Unit Scheme describes how you want to display numeric slot values in terms of the following display attributes:
• Units
• Scale
• Precision
• Format

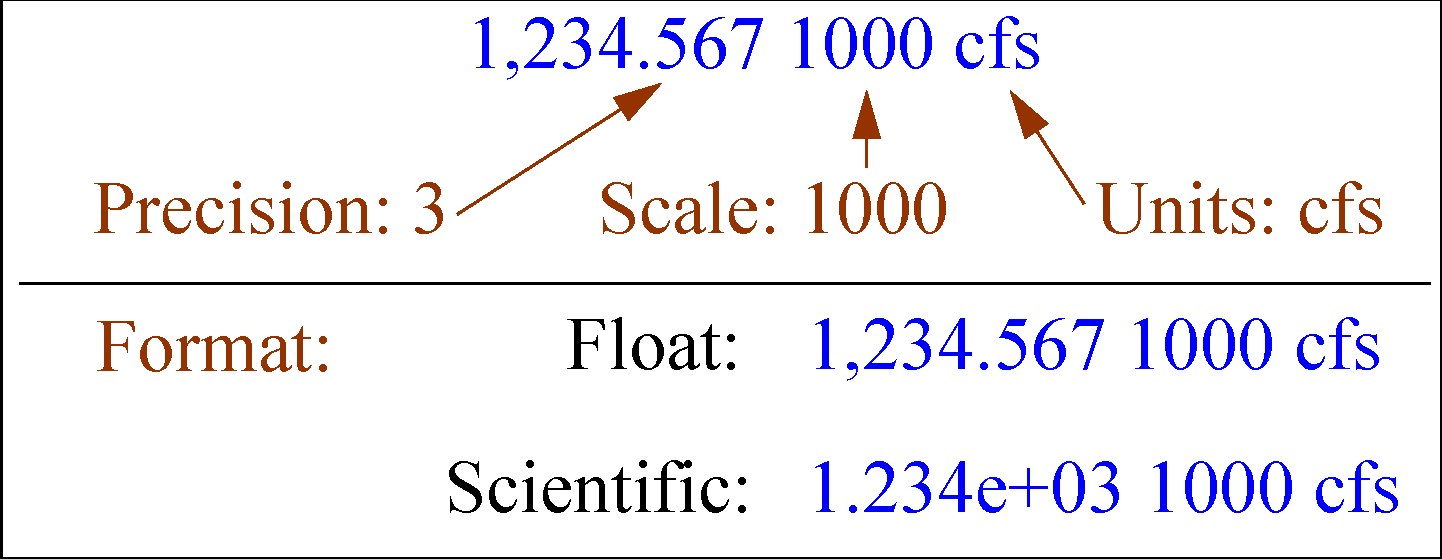

Figure 2.2 identifies the attributes.
Figure 2.2
Note: Schemes provide settings for Units, Scale, Format, and Precision. In this document these are collectively referred to as units. For example, it says that the slot units are displayed using the settings and rules for the scheme. Remember, this also includes scale, format and precision even though it is not explicitly written.
You can view and edit the Unit Scheme definitions and easily switch between the Unit Scheme in use. For example, you may wish to develop a model using cfs, acre-feet, and ft, but you wish to show the model result to international stakeholders who wish to see results in m3/year, 1000 m3, and m. Create two Unit Schemes with the desired user units and easily toggle between the two schemes depending on who is viewing the model.
Following are some features of Unit Schemes.
• The currently active unit scheme is used everywhere a slot value is displayed, at all times. This includes the slots, objects, and accounts interface, SCTs, diagnostics, RPL debugging, and output devices like plots and model reports.
• Every unit scheme is complete for every Unit Type. It describes how every slot value shall be displayed. Associated with every valid unit type is the desired set of display attributes called a Unit Type Rule.
• You can create exceptions to the Unit Type Rules to display different attributes for the following:
– A slot with the given name. These are called Slot Name Exceptions and apply to slots on any object or a specific object type.
– A specific object and slot (and column if necessary). This is called a Slot Exception.
• When a model saved with RiverWare version 6.3 or earlier is loaded, a transitional unit scheme is created which replicates the display of slot values in the prior version.
• Each DMI continues to use the specifications contained within the DMI to interpret the units and scale of input values and to determine the desired units, scale, precision and format of output values. When the DMI does not contain such a specification, the currently active scheme will be used, though the user will be warned that this is happening and encouraged to specify the units within the DMI.
Frequently Asked Questions (FAQs)
Figure 2.3 lists frequently asked questions (FAQs) and short answers, followed by links to more information.
Question | Answer | Links |
|---|---|---|
What are Unit Schemes? | A Unit Scheme describes how you want to display numeric slot values in terms of four display attributes: units, scale, precision, and format. | |
To what parts of RiverWare do they apply? | Anywhere a numeric value is displayed. This includes, slots, objects, account, SCT, plots, output devices, reports, RPL debugger, diagnostics | |
How do I switch between schemes? | From the workspace, open the Unit Scheme Manager using the Units, then Unit Scheme Manager. From the Unit Scheme pulldown menu, choose a new scheme and click Activate | |
What if I want one slot to show units that are different than the rest of the scheme? | You can create exceptions to the scheme that apply to a group of slots of the same name or one specific slot. | |
How do I change how commas are displayed in numbers. | On the workspace, use the Workspace and then Show Commas in Numbers menu. | |
Are there ways outside of Unit Schemes to change the display of numeric values? | Most formatting is done through the unit scheme mechanisms, but you can configure the Numeric Display Type on custom slots to show either Rational, Integers, or Years. | |
Can I change the display units from the slot dialog itself? | Yes, when you change the units from a slot, you automatically create a Slot Exception. | |
Can I show Flow slots as a Volume and vice versa? | Yes, for flow series slots, the slot or SCT dialog has a Flow/Vol button on the toolbar. Some relevant volume slots, like Evaporation, also show the button. You can create slot name unit scheme exceptions for both the Flow and Volume unit type for a particular slot, if desired. | |
How do I fix a slot’s units, without changing the displayed values? | Change the units from the Open Slot and choose to Repair incorrect Units. | |
I’m starting a new model, how do I set up the units I want? | Create a new scheme with the units you want. It is easy to create or change this scheme at any time, so there is little need to do it as the first step in model building. | |
Will existing models (saved before 6.3) have the same units? | Yes, when an older model is loaded and it has no scheme, a transitional scheme is created to represent the units used in the saved model. | |
If I change the units or activate a different scheme, will I get the same results? | In general, RiverWare does all calculation in internal units, changing the scheme will not affect underlying results. There are a few methods that depend on slot units. Click the link for more information. | |
Do some computations or methods depend on specific units? | ||
Can I share schemes between two models? | Yes, Export the scheme from one model and Import it into another model. |
Working With Unit Schemes

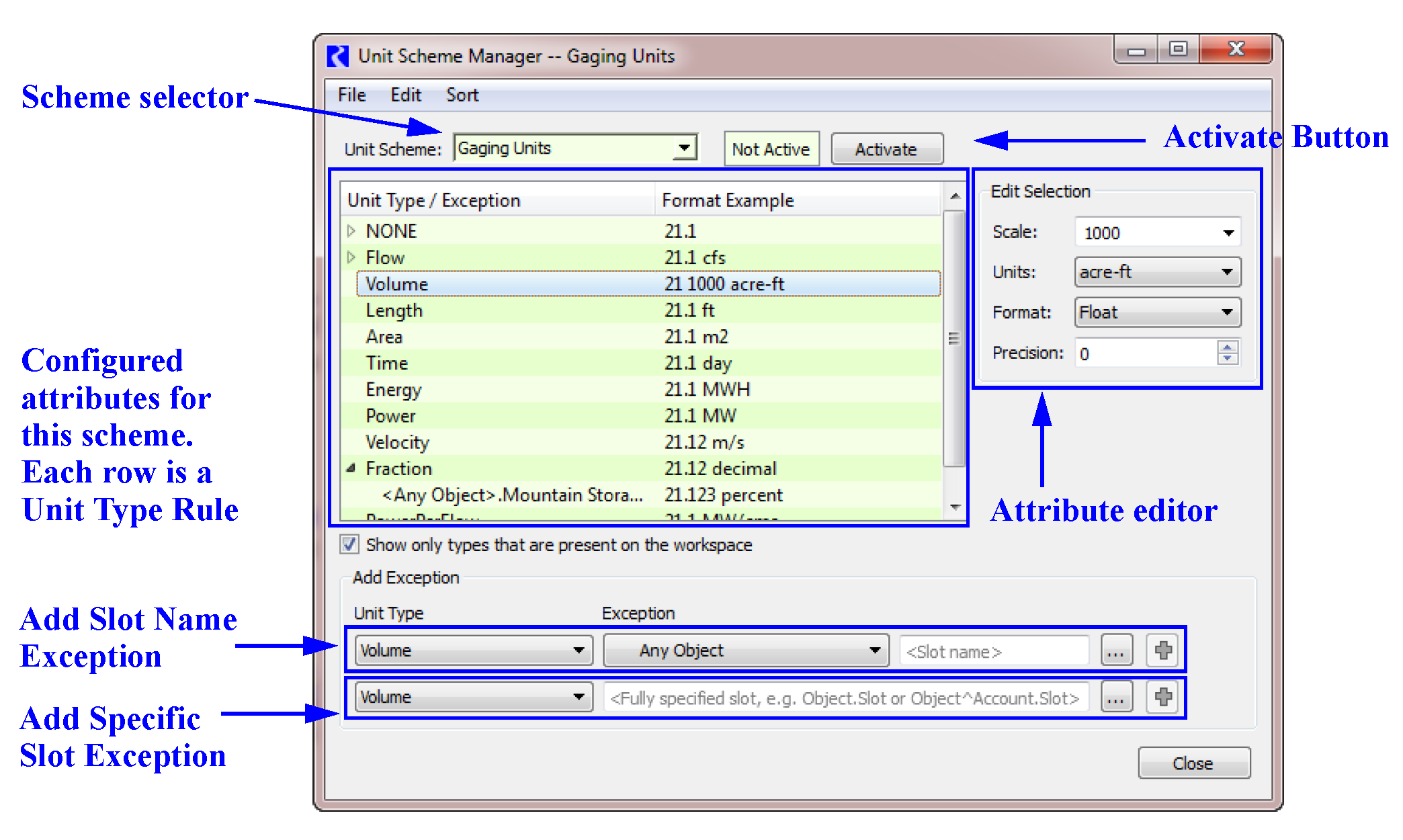

Figure 2.3 identifies the main areas of the Unit Scheme Manager.
Figure 2.3
Creating and Deleting

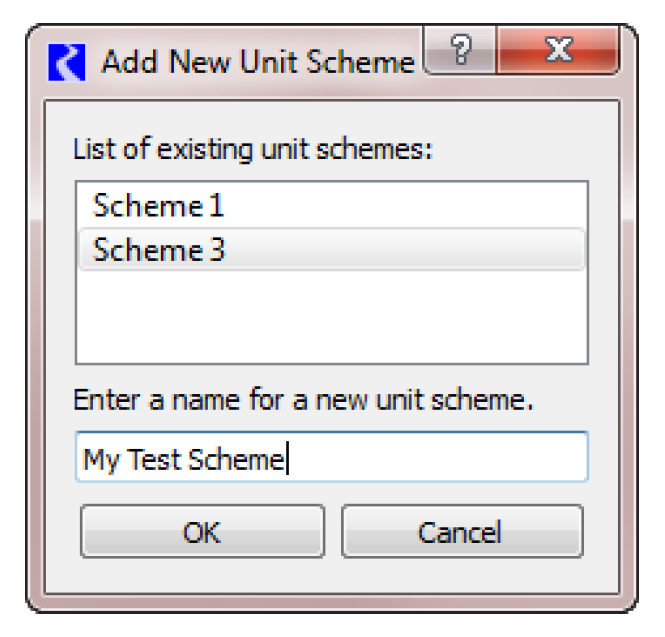

Create a New, Duplicate, Rename or Delete the current scheme from the File menu. When creating a new scheme, renaming or duplicating an existing scheme, the Add New Unit Scheme dialog will open where you can specify the new name.
To delete a scheme, choose the desired scheme from the pulldown and then choose File, then Delete Scheme.
Activating
A scheme must be activated before any of the display attributes change. Activate a scheme by choosing the desired scheme and clicking the Activate button.
Once you activate a scheme, all slot values are then shown using the attribute settings and the rules for that scheme. In the Unit Scheme Manager, the rows are shown in a pink color. An scheme that is not active is shown in a green color.
Values are always converted to the new units. See Repairing Incorrect Units of Slot Values for instructions on fixing values that were imported into a slot with the incorrect display units.
Sharing Schemes Using Import and Export
Schemes from one model can be exported to a file, and then imported into another model. Select the desired scheme and then perform the following steps.
1. Use the File, then Export menu to export the scheme. Specify a file name.
2. In the second model, open the Unit Scheme Manager and choose the File, then Import menu. Choose the file specified.
The exported file is saved as an XML representation of the unit scheme.
Defining a Scheme
This section shows how to actually define the scheme. It consists of two parts, editing the attributes (setting the units, scale, precision, format) and creating exceptions to the Unit Type rule.
Editing Attributes
The table view shows each of the Unit Types in RiverWare. Those not in use in the model are hidden when the Show only types that are present on the workspace toggle is checked. You can show them by clearing the box.

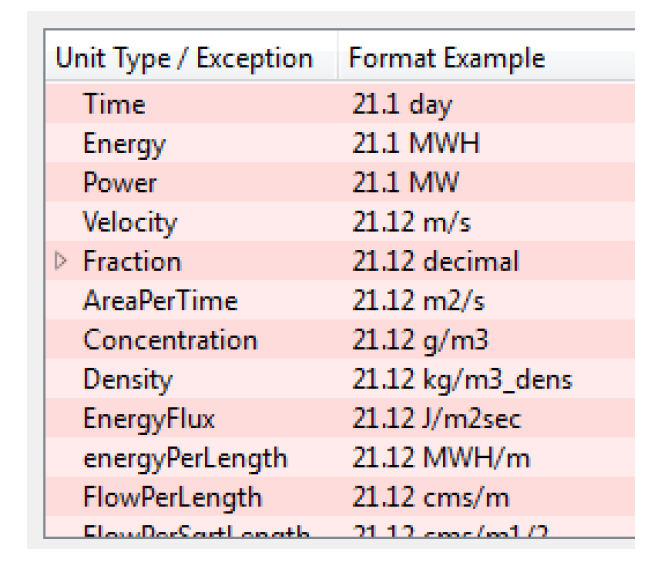

Each row in the table then represents a Unit Type Rule. That is, for that unit type, it defines how numeric values will be displayed. The attributes are not show explicitly, but are shown through the Format Example. E.g., 21.1 1000 cfs indicates a flow unit type will have a unit of cfs, a scale of 1000, a format of float, and a precision of 1.
Use the following steps to set an attribute.

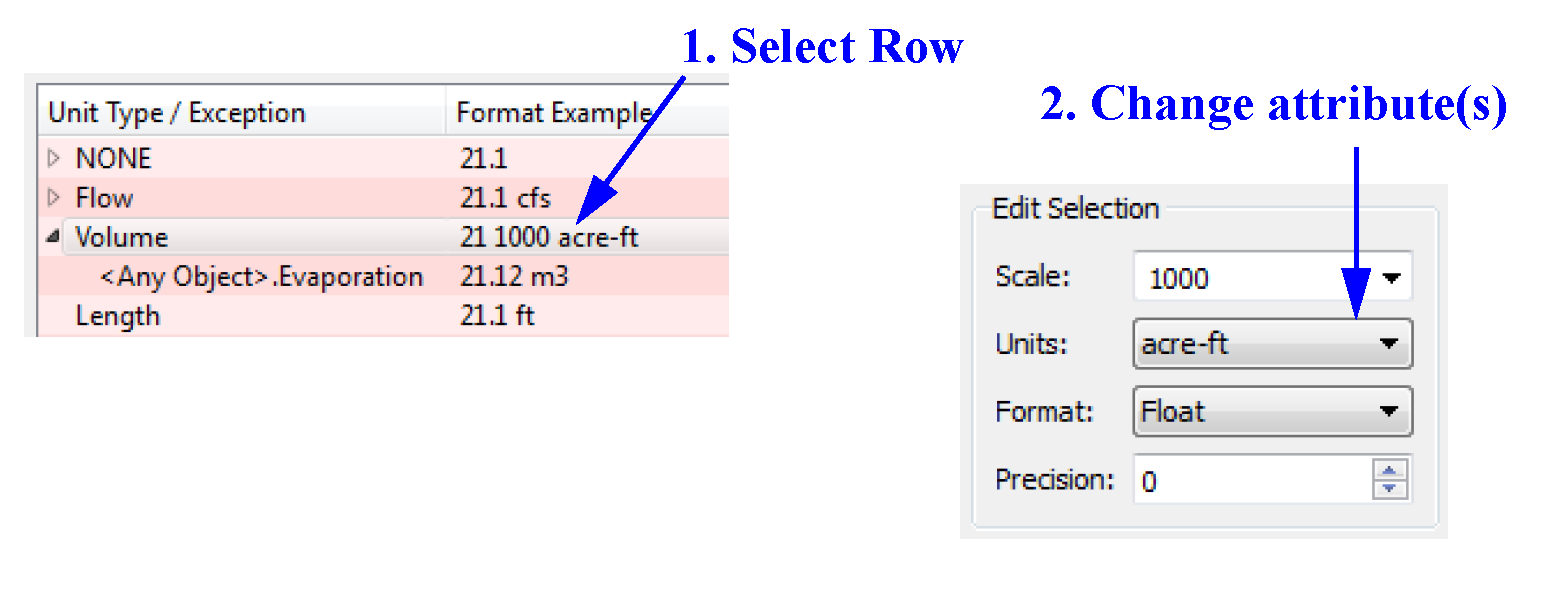

1. Select a row in the tree view.
2. Edit one of the four attributes.
Changes are applied immediately.
Creating Exceptions

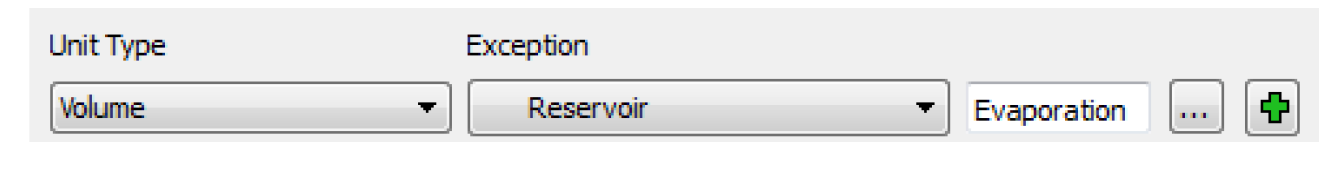

You may wish to have a slot display units that are different than other slots of that same Unit Type. For example, you maw wish to show your Reservoir.Evaporation in “acre-ft” while displaying Storages and other VOLUMES in “1000 acre-feet”. Or more specifically, maybe you want to show the Evaporation for FlatReservoir.Evaporation in 100 acre-feet. Both of these are possible by creating Exceptions to the Unit Type rule. You can create exceptions to the Unit Type Rules in the Add Exception portion of the dialog at the bottom.
Slot Name Exceptions

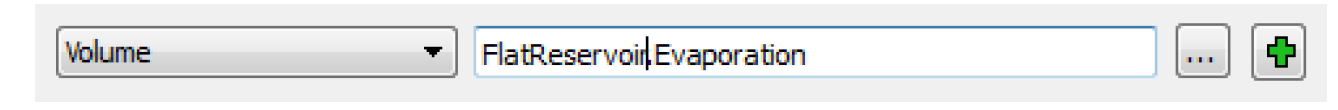

Each exception applies to a specific Unit Type. Choose that first from the pulldown list. Specify a slot name and optionally the object type. These rules apply to slots on any object or a specific object type. Enter or choose a slot name using the chooser. Remember, this is any slot that matches that name on that type of object. Once specified, click the green Plus button to add it to the scheme
.
.
Following are examples of Slot Name Exceptions:
• <Any Object>.Evaporation
• <Reservoir>.Storage
• <Reach>.LagTime
• <Storage Reservoir>.Elevation Volume Table col=0
• <Storage Account>.Gain Loss
Slot Exception
Each exception applies to a specific Unit Type. Choose that first from the pulldown list. Specify a particular object.slot (and column if necessary). Type in or choose one or more fully specified slot (and column) using the chooser. Remember, this is a specific slot (or column on that slot). Once specified, click the green Plus button to add it to the scheme
. If you selected multiple slots, a slot exception is created for each slot.
. If you selected multiple slots, a slot exception is created for each slot.
Following are examples of Slot Name Exceptions:
• Mead.Evaporation
• DreamLake.Seasonal Inflow Coefficients col = 2
• BigReservoir^City.Storage
Note: When you configure an individual slot, you are actually creating a Slot Exception for that slot within the currently active Unit Scheme; see Configure Slot Dialog for details. After making the change in the slot, you can go to the unit scheme and see that exception.

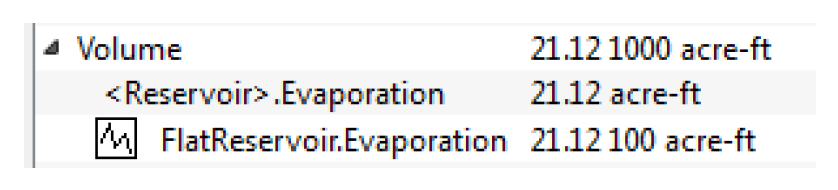

Adding the two exception described at the beginning of this section to the scheme would add rows to the table as sub items to the specified Unit Type Rule (in this case it was Volume). You then set the attributes for each of the rules; see Editing Attributes for details. Figure 2.4 shows the result.
Note: When multiple rules apply to a slot, the most specific rule applies.
Figure 2.4
Updating Old Models With the Transitional Scheme
What if you have an old model (saved prior to version 6.3) and it has slots displayed exactly as you like? Do you need to spend hours creating a scheme to match this? When a model saved in a previous version is first loaded, RiverWare will create a Transitional scheme that represents the user units defined in the model.
The transitional unit scheme has the following characteristics:
• It is complete, i.e., covers all unit types.
• It describes the existing slot configurations, that is, this scheme displays all slots as configured in the model file.
• It is compact, i.e., has the minimum number of unit scheme rules.
During model load, the unit manager loops over all of the slots and determines which set of display unit is most common for each unit type. That becomes the attributes for the Unit Type Rule. It then adds Unit Scheme Exceptions in increasing specificity until all slots are covered by the scheme. For equivalent units like “feet” vs “ft”, the most commonly used one is used throughout. Exceptions are not created for the other.
It is likely that many existing models will contain unintentional slot configurations which would show up as unique rules in the model transition scheme, typically with narrow applicability. For example, the most common unit might be 1.11 cfs, but then there are many instances of 1.123 cfs. Likely you just want the first one. To fix this, go into the Unit Scheme and remove the exception. Since the rules define exceptions to scheme, to get rid of the unusual cases, you need to delete the exception.
Changing Display Units on Slot Values
You can make exceptions from the scheme, but you can also create them from the slot configuration. Open a slot’s configuration dialog from the View, then Configure menu, you will get a dialog similar to Figure 2.5
Figure 2.5

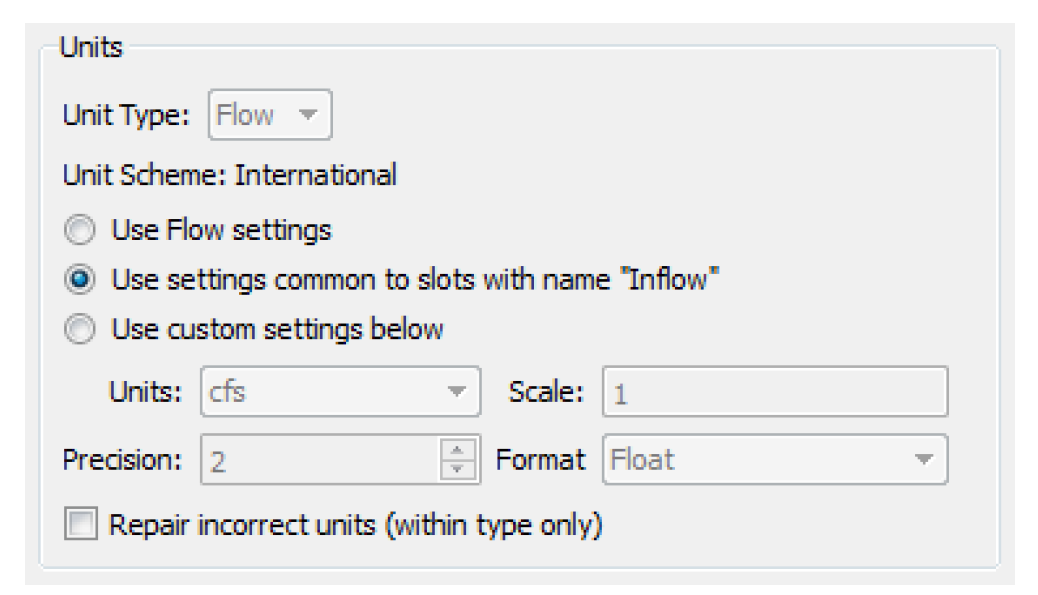

The dialog lists the unit type and the active scheme. You can then choose one of the following options:
• Use Flow settings.Use the Unit type rule.
• Use settings common to slots with the name “Inflow”. Use a previously configured unit name exception.
• Use custom settings below. Modify the units for just this slot. When you do this action, you are actually creating a Slot Exception for that slot within the currently active Unit Scheme. After making the change in the slot’s configuration, you can go to the unit scheme and see that exception.
As you change the selection, the unit settings for that toggle are shown in the Unit/Scale/Precision Format areas.
See Configure Slot Dialog for details about slot configuration.
Repairing Incorrect Units of Slot Values
Sometimes you enter values into a slot (by typing or importing) but then realize that the slot’s display units were not what you expected. For example, you want to enter 100cfs into a slot so you type it in. But, then notice the slot is showing the flows in cms, when you meant to enter them in cfs. So now the slot has a value of 100cms = 3531.5cfs. How do you fix this without re-entering the values?
To change the display units without changing the value displayed, you change the slot’s units from the slot using the View, then Configure menu. Configure that you wish to use custom settings, then change the units. Check the Repair incorrect units (within type only) box. When you apply the change and the confirmation dialog, the units will change, but the displayed values will not.
Note: Technically, when the Repair box is checked, the underlying values do change. In the example above they change from 100cms = 3531.5cfs to 100cfs = 2.83cms. But, it appears that the displayed value stays the same.
