General Workspace Features
The workspace features a main menu bar in which the various functions of RiverWare are organized into menus. The workspace also contains a dockable toolbar featuring shortcut buttons to some key RiverWare operations and utilities. There is also a dockable object list panel of all the objects on the workspace and a dockable run control panel. A screenshot of the workspace is shown in

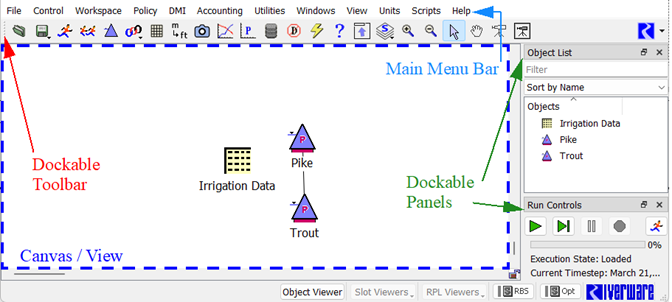

Figure 3.1.

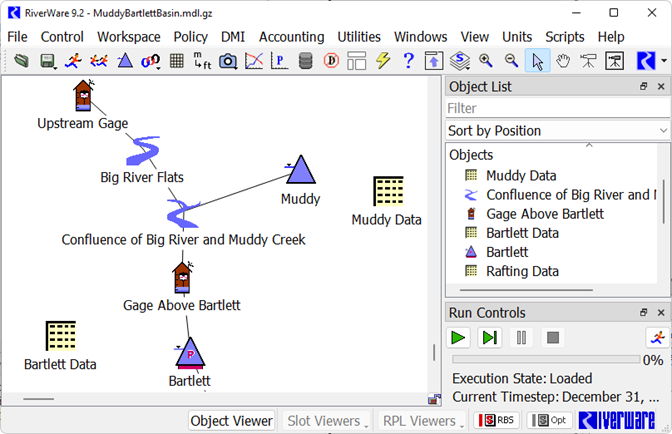

Figure 3.1 Screenshot of a Sample Workspace
Note: The workspace always lists the name of the model file in the title bar. If the model is part of a Git Repository, it will also show the branch name. Additional Git information can be seen in the model info. See
Git Information for more information.
Workspace Display Mode
The workspace supports two modes
1. Full mode shows everything, including the canvas view, toolbar buttons, docked windows, title bar, menus, and status bar.
2. Compact mode shows only the title bar, menus, toolbar (if enabled), and status bar.
Typically, Full mode is used when building a model or investigating objects on the workspace. Compact mode is used when you don’t need to see the canvas views and you want to use the toolbar buttons and menus to run a script, execute a run or look at outputs. In this approach, some users will open RiverWare, detach the Object List and Run Controls and then switch to Compact mode to provide a more efficient use of screen space.
To switch between the two modes:
• Use the Windows, and then Toggle Workspace Display Mode menu
• Use the view and then Toggle Workspace Display Mode menu
• Use the keyboard shortcut Ctrl+T
• Click on the toolbar buttons shown in
Figure 3.2 Figure 3.2 Screenshot of Toggle Workspace Display Mode toolbar buttons
The following sections describe each mode.
Full Mode
When the canvas is shown if Full mode, the canvas views are shown along with the menus, toolbar, dockable windows, and status bar. This is the default and primary view of the simulation space where models are built and modified. In the workspace, a model is graphically represented as a network of objects with links connecting the objects. The workspace allows for exploration of the model through the following viewing options:
• A zooming interface including toolbar buttons like, zoom, pan, and the locator views.
• Tooltips providing information about objects and links.
• Scrolling bars to pan across the model. The scroll bars can be used to view different regions of the workspace. The default locations of the scroll bars are the lower corners of the workspace.
• The ability to select multiple objects by selecting a region of the workspace or to select single objects.
• A dockable window displaying a list of all objects on the workspace.The dockable windows can be moved to new positions on the workspace or completely detached from the workspace by selecting the raised grey lines (the handle) of the window and dragging it to a new position. If you undock and/or close the toolbar or object list, you can reshow them using the Windows, then Show Simulation Object List, Show Toolbar, Show Run Control or Show Animation Controls menus.
• The ability to resize the workspace to display a larger or smaller region of the canvas/view.
Figure 3.3 shows a view of the workspace in Full mode.
Figure 3.3 Screenshot of the workspace in Full mode
Compact Mode
“Compact” display mode shows only the title bar, menus, toolbar (if enabled), and status bar. In other words, the Compact display mode hides the canvas/views, Simulation Object List (if shown and docked within the workspace), and Animation controls (if shown and docked within the workspace).
Figure 3.4 shows a view of the workspace in Compact mode.
Figure 3.4 Screenshot of the workspace in Compact mode
Send Workspace to Back
Sometimes the workspace can obscure other dialogs that you may wish to see. When this happens, you can use the Send Workspace to Back operation to force the Workspace window to be displayed behind any other overlapping window. The action is available in the following ways:
• Use the menu Windows, and then Send Workspace to Back
• Use the keyboard shortcut: Ctrl+B
Show Workspace
Since the Workspace is the main RiverWare interface and the hub for many actions and operations, it is often necessary to open the workspace to access other parts of the RiverWare. To show the workspace from many other dialog boxes in RiverWare, use the Show Workspace operation using one of the following:
• Use the File and then Show Workspace menu.
• Use the keyboard shortcut Ctrl+Shift+B.
• Use the Show Workspace button on the right of many menu bars.
A tool tip gives the model file name and the model path, when applicable.
Toolbar and Workspace Buttons
The toolbar in RiverWare is dockable, meaning it can be moved from one side of the workspace to the other or exist as an independent dialog.
Table 3.1 summarizes the Workspace buttons.
Table 3.1 Toolbar and Other Workspace Buttons
Icon | Action | Link to More Info |
---|
| Load a model. | |
| Save a model - The button opens a menu that gives you a choice to either Save or Save As. The tool tip shows the name and path of the saved model. | |
| Open the Settings Manager. | |
| Open the Run Control Dialog. | |
| Open the Multiple Run Control Dialog | |
| Open the Object Palette | |
| Open the Smart Linker or Edit Links dialog | |
| Load an SCT | |
| Open the Unit Converter | |
| Open the Snapshot Manager, create snapshot, or apply snapshots | |
| Open the Output Manager | |
| Open the Plot Page | |
| Open the DMI manager | |
| Open the Model Run Analysis tool | |
| Open the Window Manager. | |
| Close Windows. | |
| Open the HTML help and documentation file (this document) in a web browser. | |
| Toggle between Compact and Full Workspace display mode | |
| Switch between the Simulation View, Accounting View (if enabled), Web Map View and the Geospatial View | |
| Zoom in | |
| Zoom out | |
| Web Map Home on the Web Mab View. | |
| Selection Mode | |
| Pan Mode. Use the middle mouse button to temporarily enter pan model from Selection Mode. | |
| In-view Locator Mode | |
| Locator Window | |
| Change the window icon colors. | |
| Show the Object Viewer. | |
| Show the Slot Viewer. (See ) | |
| Show the RPL Viewer for the specified set. | |
| Show the loaded RBS ruleset. | |
| Show the loaded optimization goal set. | |
Dockable Panels
On the workspace, there are four dockable panels that can be shown, hidden and moved to various locations. The following lists the panels and their possible locations:
• Object List - Left or Right - See
Object List for more information.
To change the layout, drag the panel to the new location. Interactive moving is not preserved from one session to the next; instead set up your desired dockable panel appearance in the Settings Manager. See
Settings Manager for more information on using the utility.

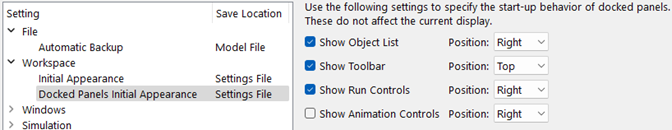

In the Settings Manager, use the Workspace category and Docked Panels Initial Appearance page:
On the right, for each panel, select whether to show the panel and its position. As noted, this is the startup behavior and does not affect the current display. Also note, these settings are preserved in the settings file, not in the model.
Run Controls Panel
The Run Controls Panel provides quick access to the common buttons used to make a run. It is shown by default in the lower right corner of the workspace, below the Object List, but can be detached or moved to other locations as desired.

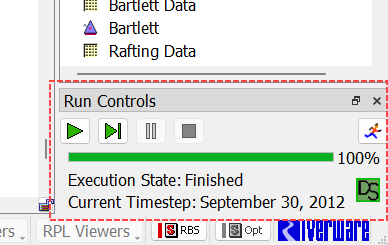

Figure 3.5 Screenshot of the Run Controls Panel
The panel contains
• The Run Control buttons: Start/Continue, Init/Step, Pause, and Stop.
• Button to open the full Run Control dialog. See
Making a Run for details.
• Run status information. The panel only displays information for single runs.
• Model Run Analysis information. Use the button to access the Model Run Analysis tool.
This button is shown as a grey square during a run and then an icon once the run completes or is paused/stopped. The button image shows the overall dispatching status of the run, after a run has completed. Shift-click the button to see the Dispatch Status Summary information. Select the button to open the Model Run Analysis tool.
Tip: In the future, enhancements to this panel may include showing parameters, controllers, and debugging buttons. For now, use the Run Control button
to access that functionality.
Similar to the Object List and Animation Controls panel, the Run Controls panel can be undocked into a floating window and re-docked on either the left or right side of the Workspace window. Its shown/hidden state is saved to window layouts that contain the Workspace window and it will be restored as such when a window layout is applied.
Viewer Buttons
There are three “Viewer” buttons at the bottom of the workspace. The buttons allows for quick access to the appropriate viewer showing previously opened viewer dialogs. The viewer buttons are:
• Object Viewer: Open the Object Viewer. See
Object Viewer and Open Object for details. This button is always enabled and will open an empty Object Viewer is not objects have been opened.
• Slot Viewers: Open the specified Slot Viewer. There is one Slot Viewer for each timesteps size and one for Scalar and 1X1 table slots. See
Slot Viewer Functionality for details. This button is only enabled if one or more slot viewers are open, even if empty.
• RPL Viewer: Because there are many different RPL sets with one viewer per set, this button presents a menu of available viewers. Select the desired viewer from the menu. See
Using the RPL Viewer and RPL Editor for details. This button is only enabled if one or more RPL viewers are open. This opens RPL Viewer where RPL logic is developed and edited. The “S” buttons to the right of the viewer buttons open the RPL Set, see
RPL Set Buttons .
RPL Set Buttons
The workspace has buttons on the bottom of the dialog to show the loaded RBS ruleset
or optimization goal set
. The bar is colored (red for RBS, purple for Opt) when there is a loaded set, grey when there isn’t. In

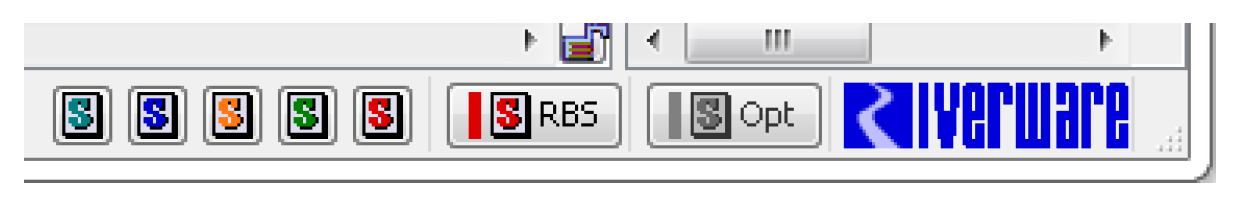

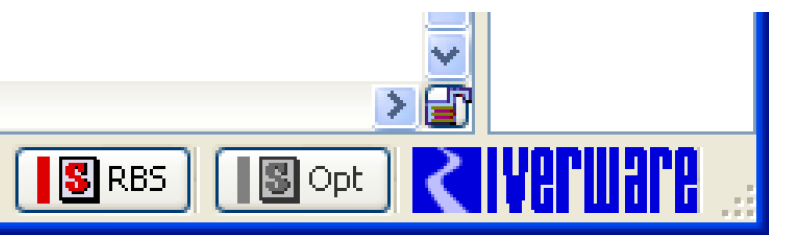

Figure 3.6, there is a loaded RBS ruleset, but no loaded Opt goal set. Select one of the buttons (when loaded) to raise the loaded set to the top.
Figure 3.6
Also shown are color-coded icons for the following:
• Ruleset, goal set, or global function set opened from a file
• Embedded sets (OLAM, expression slots, Init rules, Iterative MRM) that contain at least one group
Hover over any icon for a tooltip indicating the location or click to open that set. Also, the sets are still available through the
Policy menu. See
About RPL Sets in RiverWare Policy Language (RPL) for the color code for sets.
Right-click Context Menu

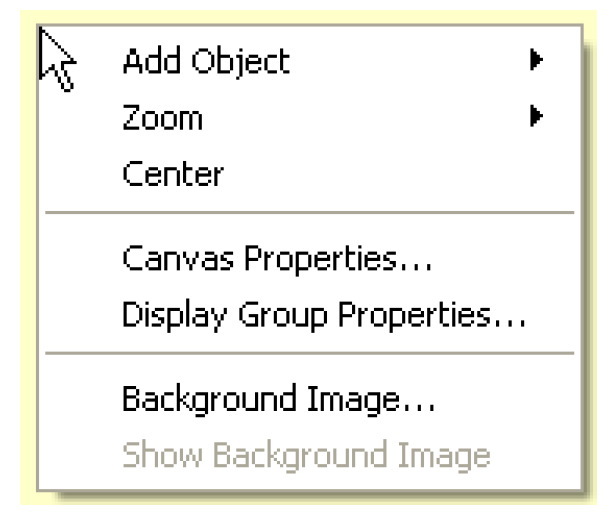

The Simulation Workspace right-click context menu (when not selecting a simulation object icon) has the following options.
• Add Object: Add an object
• Zoom: Choose the desired zoom level
• Center: Centers the visible Workspace area on the clicked point.
• Background Image: Brings up a new Background Image Configuration dialog;
Background Image • Show Background Image (a checkbox): Either shows or hides the configured background image. This item is enabled only if a background image is configured. This checkbox state is also represented as a checkbox in the Background Image Configuration dialog;
Background Image • Object Coordinates (Geospatial view only). Shows the geospatial coordinates for the objects on the workspace.
Lock Icon Position Controls
The moving of Simulation Object icons on the Workspace can be disabled by locking icon positions as follows:
• Select the Lock Icon button in the lower rigth corner between the two Workspace scrollbars.
• Select Workspace, then Lock Object Positions.
Within the settings manager, you can also specify the behavior of the lock on model load. (See the

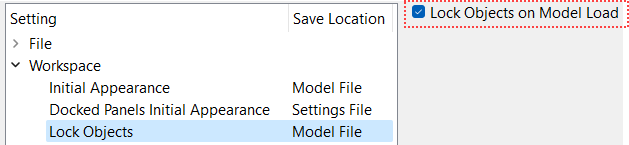

Settings Manager) Use the Workspace and then Lock Objects page as shown.
This is a model file setting that is applied only during model load.
Show Commas in Numbers
RiverWare provides the option to show commas as a thousands separator in slot values (slot dialogs, SCT, accounts, and exchanges) and numeric values entered into a RPL expressions. Commas are shown by default but can be turned off from the Settings manager or by selecting the Workspace menu, then Numeric Display.

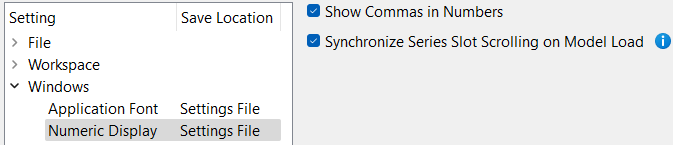

Figure 3.7 Settings Manger Values Display
With the
Show Commas in Numbers box checked, it will show commas in all numbers. The only exception is that you can configure custom slots with no units to display Years. In that case, the years do not show the comma or any values to the right of the decimal point. For more information on the Year display type, see
Numeric Display Type in User Interface.
Synchronize Series Slot Scrolling
The Synchronize Series Slot Scrolling option allows all series slot windows to scroll together. That is, the dates scroll at relatively the same time. There is no guarantee that the exact same dates will be at the top of the window due to different sized windows and content, but in general relatively the same dates will be shown when scrolling is synchronized.
Synchronized Scrolling is enabled/disabled on each slot using the
Synchronize Scrolling checkbox in the relevant windows. For more information, see
Synchronize Scrolling. Synchronized scrolling and the Global Time Scroll allow you to quickly move through the time range in many RiverWare windows. For more information, see
Global Time ScrollIn addition, you can configure whether to have the setting enabled on model load. In the Settings Manager, select the Windows, then
Numeric Display. See
Figure 3.7 above for a screenshot of the display.
Showing Annotation Items on the Workspace Views
There are two ways to add items to the workspace views to annotate your objects and layout. Following is a brief overview and then more details are in the sections that follow:
• Add Workspace Text or Images: Simple text and images are supported. The text font, color, and size matches the object labels. There are few configuration options. For more information, see
Add Workspace Text or Images.
• Add Output Canvas Text, Shapes, or Lines: Text, rectangles, ovals, and canvas lines are supported. (Images are not currently supported.) Items can be added from the workspace, but they actually live on a system output canvas. All placement is done on the workspace but configuration of colors, widths, and fonts is done from the output canvas. As a result, these items are highly customizable. For more information, see
Adding Shapes, Lines and Canvas Text.
Add Workspace Text or Images
To annotate the workspace with text or image files, use the right-click context menu and select Add Workspace Text or Add Image. This opens a window where you specify the text or an image, respectively. The image below left shows the text editor and the resulting text below it.
Tip: The workspace text uses the same font, size, and color as object labels. This is configured in the Settings Manager in the Workspace, and then Simulation View, and then Canvas Display. Alternatively, right-click on the view and select Canvas Display.

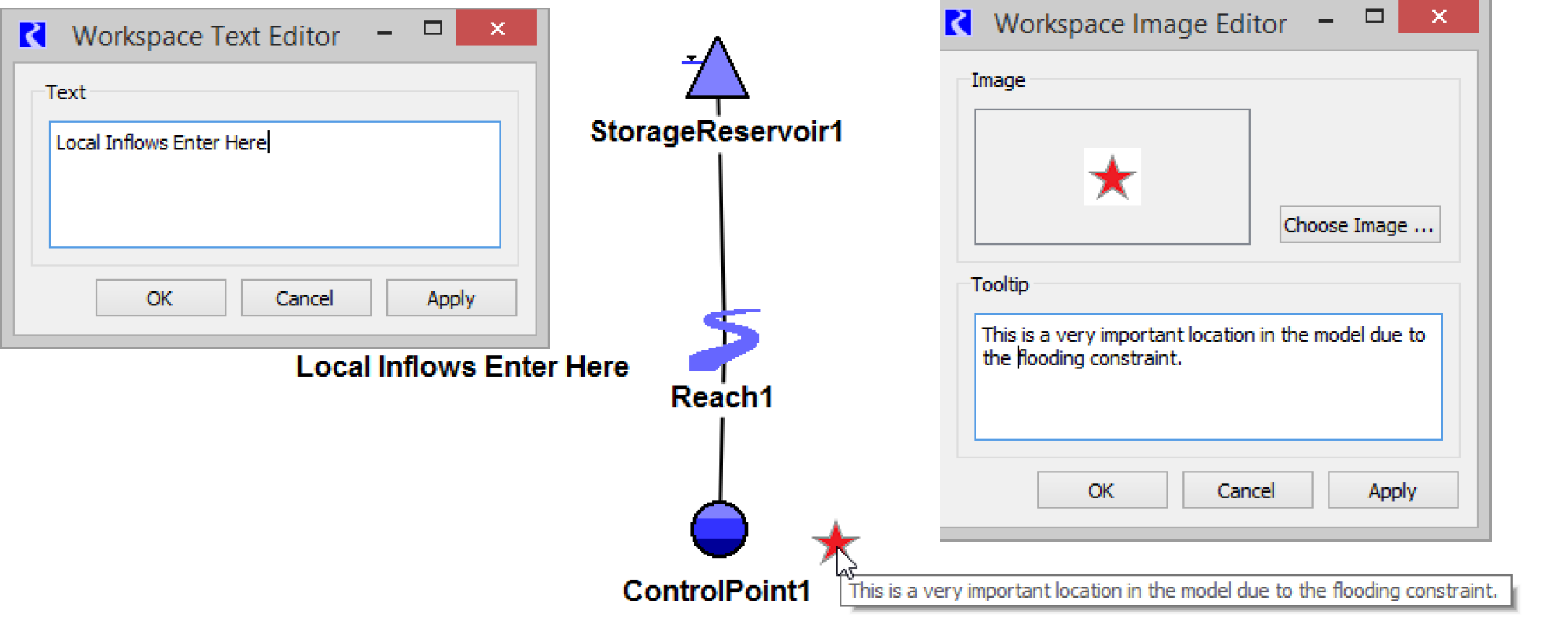

Figure 3.8 shows the image editor with a small image shown. Also shown is the tooltip for the specified text. This is the text you see when you hover over the image.
Note: Neither text nor images are selectable on the workspace, but you can move them individually. Also, right-click the text/image to Edit or Delete the item.
These are supported separately on the Simulation and Accounting views, but not the Geospatial view. Images are saved in the model file and will increase the model file size. GIF, PNG, or JPG images are supported.
Figure 3.8 Screenshot of adding workspace text or images
Adding Shapes, Lines and Canvas Text
Create rectangles, ovals, lines and canvas text on the workspace views to annotate or organize the workspace. A sample workspace is shown below.

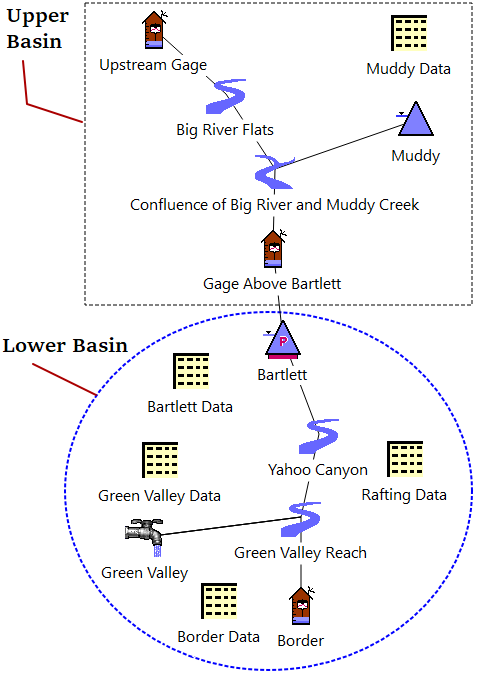

Figure 3.9 Sample Simulation View with shapes, lines and text
Create these items using the right-click context menu.

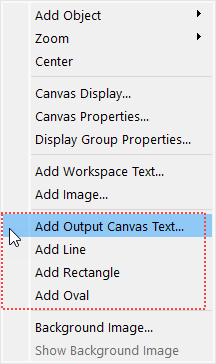

Figure 3.10 Screenshot of the right-click context menu on the simulation view
Each item is added to the workspace. Once created, position them on the workspace. Configure the colors, line types, fonts, and so forth using the Output Canvas. Quick access to the Output Canvas configuration is provided by right-click options on the item. For example, to configure a rectangle, right-click on the border and select Configure as shown below:
Figure 3.11 Screenshot of the context menu to configure shapes
It then opens the Output Canvas editor. See
Configuring an Output Canvas in Output Utilities and Data Visualization for more information. See the following for more information on the supported items:
Output Canvas Items and Animation Controls
The Output Canvas allows you to create spatially distributed output visualization diagrams. You can show the following items from an Output Canvas directly on the Simulation and/or Geospatial Views. See
Showing Canvas Items on the Workspace in Output Utilities and Data Visualization for details.
• Teacups
• Charts
• Text
• Flow lines
• Canvas lines
• Shapes

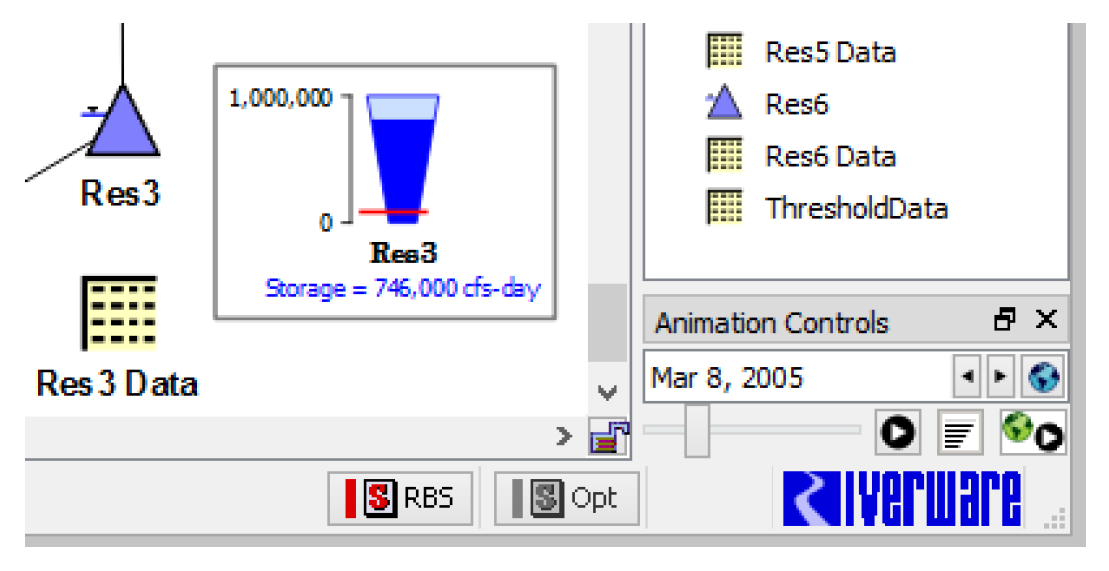

When items are shown on workspace views, an additional panel of Animation Controls can be shown below the Simulation Object List, as shown in
Figure 3.12. See
Animation in Output Utilities and Data Visualization for details on the controls. Like other dockable windows, this panel can be pulled off the workspace to its own dialog, docked on the left side of the workspace or closed. To redisplay the panel, use the
Windows, then
Show Animation Controls menu.
Figure 3.12
Slot Cache
The Slot Cache provides a temporary copy of series slot values. The cache is created from the Workspace, then Create Slot Cache menu. Within the run range, all visible series slots (except those on Data Objects that are not optimization variables, exchanges, supplies, and those slots with different step size than the run) are copied to the cache when this menu is operated. These values can be accessed using RPL predefined functions SlotCacheValue and SlotCacheValueByCol. They are typically used during an optimization run for certain Seed Method parameters. The cache values are not saved in the model file.
Manually clear the Slot Cache using the Workspace, then Clear Slot Cache option.
Clearing the Workspace
All objects can be cleared from the workspace by selecting Workspace, then Clear Workspace. A confirmation dialog appears warning that all objects on workspace will be removed. All rulesets will also be cleared and any unsaved changes will be lost.
