About RPL Sets
Table 2.1 summarizes the available RPL sets.
RPL Set | Set Color | Save Location | Link to More information |
|---|---|---|---|
Expression Slot Set |  Orange | In model file | |
Global Function Set |  Brown | Separate file OR in model file | |
Initialization Rules |  Teal | In model file | |
Iterative MRM Ruleset |  Navy Blue | In model file | |
Object Level Accounting Method Set |  Green | In model file | |
Optimization Goal Set |  Purple | Separate file OR in model file | |
Rulebased Simulation (RBS) Ruleset |  Red | Separate file OR in model file |
When dealing with specific menus, this document will use the terminology set in place of any type of set. Each set has a unique menu name and should be used accordingly.
Set Name

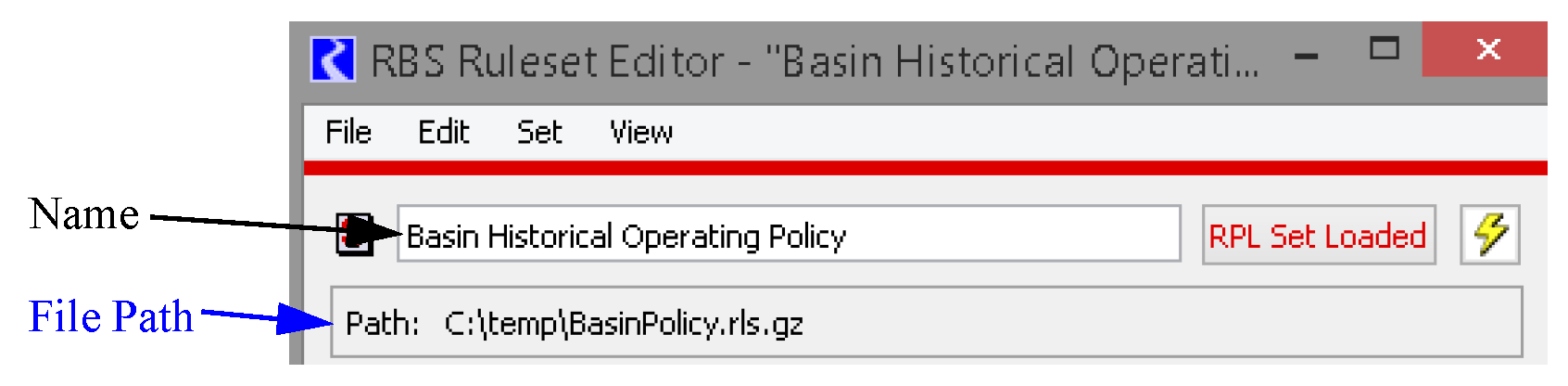

Each set can have a user-specified name that is separate from the file path. The default for a newly created set is RPL Set N. Enter your desired name in the field shown in Figure 2.1.
Figure 2.1
Note: Prior to RiverWare 7.0, the name and the file name were the same. When loading an old set into 7.0, the name defaults to the file name. You can change the name if desired.
RPL Parameters
The RPL Parameters are used to modify certain behaviors of RPL sets and RPL expressions. To access the RPL Parameters, use the Settings Manager or the workspace Policy and then RPL Parameters menu. The following figure shows the parameters.

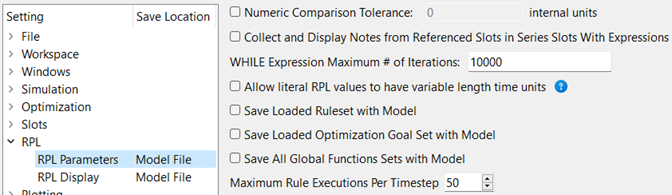

Figure 2.2 RPL Parameters in the Settings Manager
The following sections describe the parameters or provide links to more information.
Numeric Comparison Tolerance
See Setting Tolerance for Use in the Logical Comparison Operators for more information.
Collect and Display Notes
See Collected Notes on Expression Slots in User Interface for more information.
WHILE Expression Maximum Iterations
When a WHILE expression is executed, it counts the number of times the body is evaluated, and fails with a message if the iteration count ever exceeds the value of the RPL parameter. The default max iterations is 10,000, but may be modified as needed. See Conditional and Iterative Operations Buttons for more information on the WHILE operator.
Allow Literal RPL values to have variable time units
See Use of Variable Length Time Units for more information.
Save Location
Based on the type of set, the set is saved in one of two locations, as shown in the Table 2.1.
• In the model file or
• In an external file
Four of the sets (expression slot set, initialization rules, iterative MRM rulesets, and accounting method set) are always saved in the model file. Global functions sets, goal sets, and rulesets may be saved in either location as specified in the RPL Parameter in the Settings Manager or from the workspace Policy and then RPL Parameters menu.
The Save Loaded Ruleset with Model checkbox controls where rulebased simulation sets are saved. By default, this option is disabled, meaning the set is saved in a file external to the model. Enabling it will save the Loaded ruleset with the model file.
Note: This toggle only applies to the loaded ruleset. Any other opened sets will not be saved with the model file.
The RPL Parameters page contains an option to Save All Global Functions Sets with Model toggle. By default, this option is disabled, meaning that all global functions sets are saved in files external to the model. Enabling it will save all open global functions sets with the model file.
Once a set is saved with the model file, there is some risk that it may be lost if:
• The toggle above is unchecked and the model is saved.
• The set is unloaded and the model is saved.
• Another set is loaded and the model is saved.
• Closing the set and the model is saved.

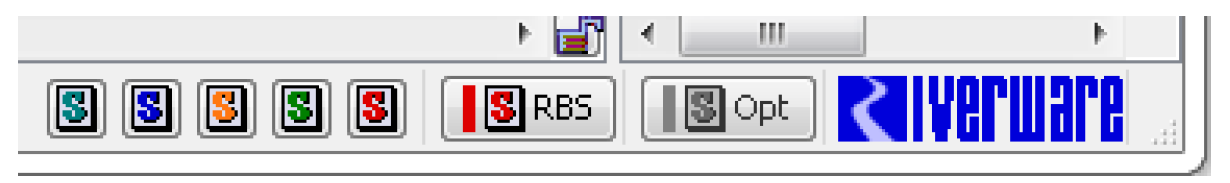

In each case, a warning message is presented to allow you to confirm that the action is intended. A set saved with the model is automatically loaded when the model is opened. The set is then minimized. You can bring it to the front at anytime using the workspace Policy menu or the buttons on the bottom of the workspace.

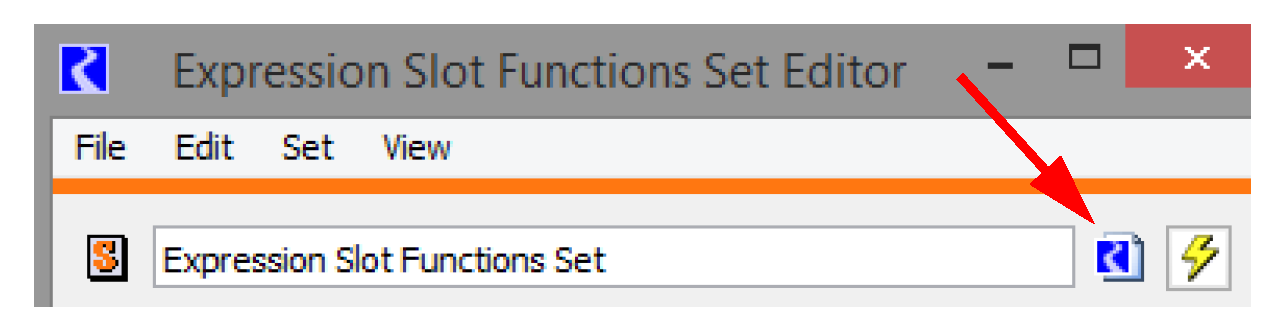

Further, for any set that is saved with the model, a model file icon is displayed at the top right of the dialog.

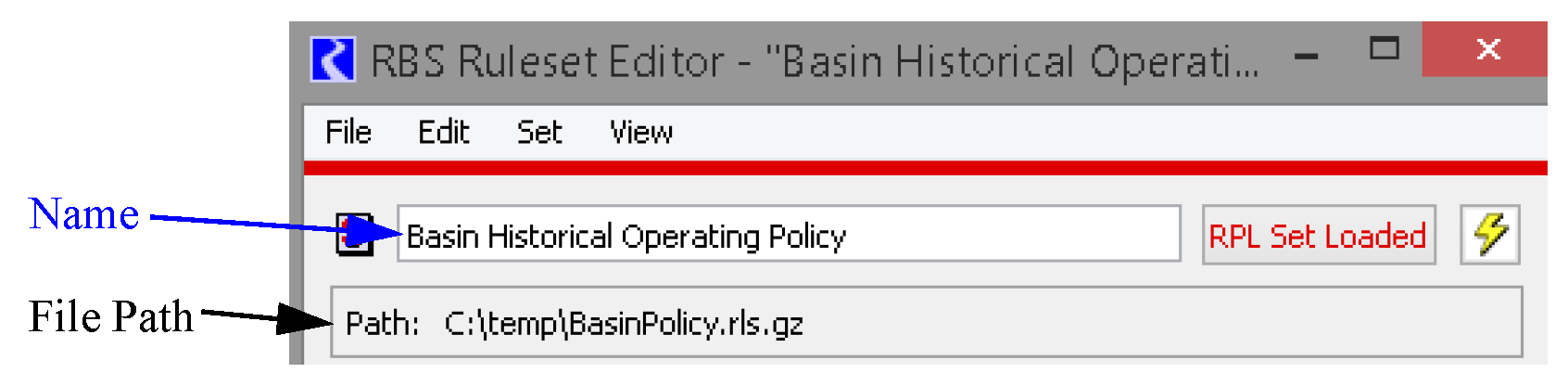

Sets that are saved in an external file have the path shown below the set Name.
Maximum Rule Executions Per Timestep
This value indicates how many times a single rule can execute on each timestep. The default is 50, but many models need additional executions per timestep.
