Compute a specified statistic for an open ensemble data set. Statistics are computed across traces, resulting in a single value for each slot and date/time in the data set. For more information on Ensemble Data Sets, see Ensemble Data Tool in Solution Approaches.

Results are written to a set of series slots or agg series slots, one for each slot included in the analysis. For each slot, the output slot’s name is created using the template: “<slot’s object>.<slot name> <output slot tag>”. For example, if the slot “Res A.Inflow” participates in the analysis and the “Output slot tag” is “Median”, then results associated with that slot will be written to the slot “ResA.Inflow Median”. If the output slot is an agg series slot and the output slot column value is other than zero, the results are written to that column of the output slot.

If configured to do so, the action will create an output series slot if it does not already exist and, if it does exist, resize it as necessary to the minimum required dimensions. All Values are given the input (I) flag.

Clear the values set by a DMI (by using the DMI invocation manager functionality).

Clear the values on a set of Scalar Slots (i.e. set them to NaN).

Clear certain values on a set of Table slots (i.e. set them to NaN).

For the specified MRM configuration, modify the configuration in terms of Index Sequential. This is shown on the Input tab in the MRM configuration. See Index-sequential Runs in Solution Approaches for details.

For the specified MRM configuration, modify the configuration in terms of Input DMIs, particularly the repeat count. This is shown on the Input tab in the MRM configuration. See Input in Solution Approaches for details.

For the specified MRM configuration, modify the configuration in terms of the Output. This is shown on the Output tab in the MRM configuration. See Output in Solution Approaches for details.

Create an ensemble data set by opening an RDF file into the Ensemble Data Tool. For more information on Ensemble Data Sets, see Ensemble Data Tool in Solution Approaches.

Creates a slot cache that contains the current values of all series slots on the workspace, in the range of the current controller. See Slot Cache in User Interface for details on the cache.

Create a Snapshot of the specified slots.

Remove an open ensemble data set, freeing up the memory required to represent those data. For more information on Ensemble Data Sets, see Ensemble Data Tool in Solution Approaches.

Delete a link between the two specified slots. For more information on links, see Linking Slots on Objects in Model Building Quick Start. It is not an error if the two slots are not linked. See also the complimentary action to Link Slots.



This item adds a divider to the Script Editor and Script Dashboard. It does not do anything in script execution; it is strictly for to provided a visual separation between actions. The Display Text can be used to add text to the divider.

For the specified objects, enable or disable the dispatch method execution. When disabled, the object icons on the workspace and in other dialogs appear dimmed.

For the specified MRM configuration, specify whether to distribute concurrent runs to multiple processors on the same machine. See Distributed Concurrent Runs in Solution Approaches for details on distributed MRM.

Enable or disable a RPL item (policy group, rule, method, or goal).

Evaluate a set of expression slots.

Invoke a DMI or DMI group.

Execute the specified MRM configuration.

Run the model.

Execute a script from within this script.

Export Database Data Management Interfaces (DMIs) to a file and optionally include name maps and datasets. See Export in Data Management Interface (DMI) for more information. Also, see Import Database DMI for information on the script action to import the Database DMI.

Export Objects to a file and optionally include links, object attributes, slot notes and accounting items. See Export in User Interface for more information on exporting objects. The options described in that section correspond to settings in this script action. Also, see Import Objects for information on the script action to import Objects from a file.



Generate the specified Output Device. This could be a file based device like a Model Report or a graphical device like a Plot Page.

Scroll time and series displays to the specified symbolic date/time.

Import Database Data Management Interfaces (DMIs) from a file and specify how to handle conflicts. See Import in Data Management Interface (DMI) for more information on the feature. See also Export Database DMI for information on the script action to export the Database DMI.

Import Objects from a file and specify how to import object attributes, slot notes and object clusters, and how to locate the imported objects. See Import in User Interface for more information on importing objects. The options described in that section correspond to the settings on this action. See also Export Objects for information on the script action to export Objects.

Link the two specified slots. The slots must be physical slots (non-accounting) on two different objects. For more information on links, see Linking Slots on Objects in Model Building Quick Start. It is not an error if the two slots are already linked. See also the complimentary action to Delete Link.

Open and load a goal set (for Optimization runs).

Open and load a ruleset (for Rulebased Simulation runs).

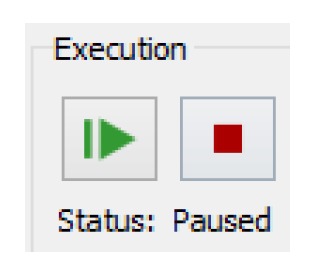

Pause script execution and optionally open a confirmation dialog with your user specified message. While script execution is paused, you can interact with RiverWare or other applications in ways not directly supported by scripts. Select the script Continue button to resume the script execution.

Open the Ensemble Data Tool and bring it to the top of the windows. For more information on this tool, see Ensemble Data Tool in Solution Approaches.

Open the specified external file using the windows file association. If you would like to pause script execution after opening the file, add a Memo action, described at Memo, after the Open File action.

Open a global function set.

Open the specified objects’ dialogs.

Open a System Control Table (SCT) with the specified filename.

Open the specified slots.

Remove a selected RPL set from the model. An RBS Ruleset or Optimization Goal set is unloaded and closed, a Global Function Set is closed, or the Initialization Rules Set is cleared.

Reorder the items (rules, goals, statements) in a RPL set according to priority or index defined on the specified table slot.

Replace the existing Initialization Rules Set from a file. Any changes made to the Initialization Rules in the model will be lost. Use with caution!

Save the model to a file.

Set the selected method in one of an account’s method categories.

Set the time range of the accounting system (i.e., the Begin Accounting Period and End Accounting Period dates).

Set the current controller.

Set the DSS file for a specified DSS Dataset or the Excel workbook for a specified Excel Dataset.

For the specified Database DMI Excel Dataset, set the run name type and/or specify a new single run name.

Set the Execute Initialization Rules run control flag. This flags controls whether or not the initialization rules are executed as part of the run. The flag is independent for each major controller, Simulation, Rulebased Simulation and Optimization. For more information, see Can I disable the Initialization Rules? in RiverWare Policy Language (RPL).

Set the selected method in the specified category for a set of objects.

In a given MRM configuration, set the specified keyword, value pair MRM Descriptor. The descriptors are shown on the Description tab of the MRM configuration. See Description in Solution Approaches for details.

In a given MRM configuration, set a new file path to a ruleset.The ruleset is shown on the Policy tab of the MRM configuration. See Policy in Solution Approaches for details.

Set the time range of the run (i.e. the Run Start and End dates) for the specified MRM configuration. The run range is shown on the Run Parameters tab of the MRM configuration. See Concurrent Runs in Solution Approaches for details.

Set the value at the specified row and column on a set of periodic slots.



Set the time range of the run (i.e., the Run Start and End dates).

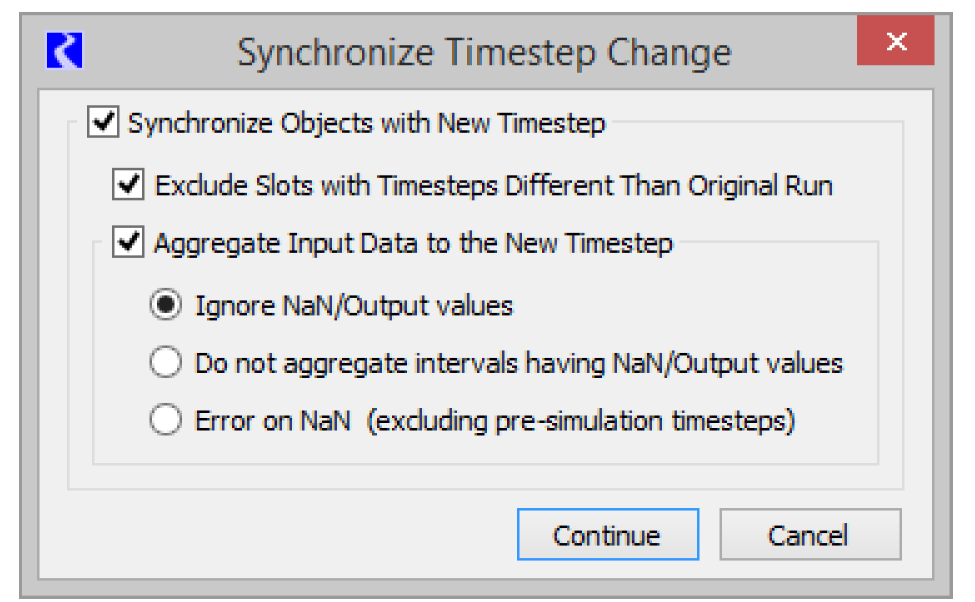

Set the run timestep size. This action is analogous to changing the run control timestep size. The settings in the action are analogous to the options presented in the Synchronize Timestep Change dialog; see Synchronize From Run Control in User Interface for details.

Set one or more Scalar Slot values.

Set the specified flag (input or output) on a set of series slots within the specified time range.

Set the input mode (series or periodic) for one or more Series Slots With Periodic Input. More information on these slots can be found in Series Slots With Periodic Input in User Interface.

For one or more Series Slots with Periodic Input, set a periodic value at a given row and column. More information on these slots can be found in Series Slots With Periodic Input in User Interface.

Set Series Slot values within a time range.

Set a value on a set of Table Slots at the specified row or column.

Set the time range for the specified objects.

Set the time range for the specified slots.
